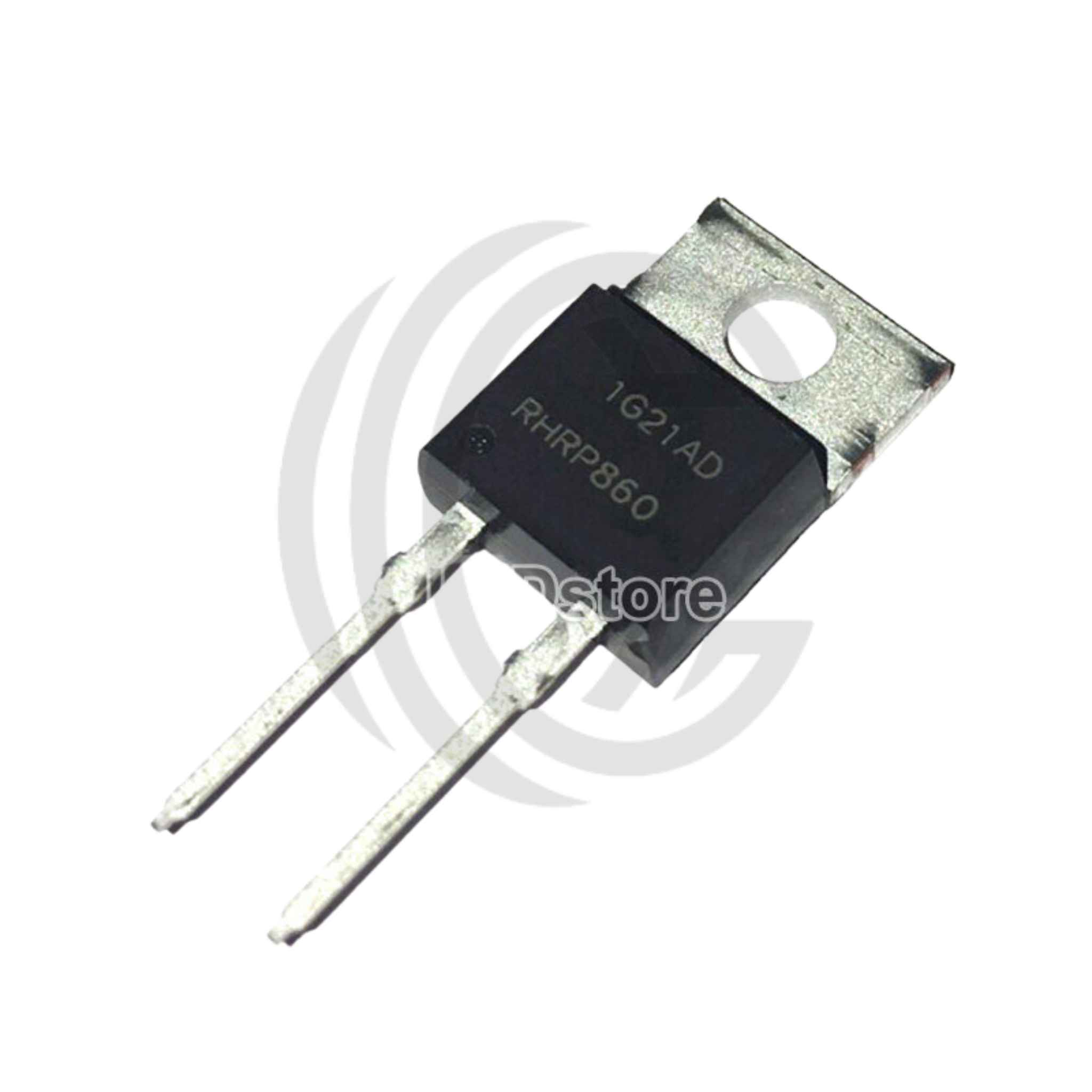

RHRP860 600V 8A Fast Recovery Diode
Regular price
Rs.150.00
RHRP860
The RHRP860 Fast Recovery Diode is a 600 V, 8 A diode designed for power‑electronics applications. Packaged in a TO‑220 case, it provides ultrafast recovery and efficient rectification for high-voltage power supplies, solar inverters, motor drives, and automation controls. It operates reliably under industrial and commercial electrical conditions, minimizing energy loss and thermal stress.
Constructed with a silicon‑nitride passivated, ion‑implanted epitaxial planar structure, the RHRP860 offers a reverse-recovery time of ≤ 35 ns, with a typical soft recovery of < 30 ns. This reduces stored charge, switching losses, and electromagnetic interference, making it suitable for high-frequency switching power supplies and PWM-driven motor controllers. Its maximum forward voltage is 2.1 V at 8 A, helping to lower conduction losses.
The diode supports a non-repetitive peak surge current of 100 A and operates over a junction temperature range of –65 °C to +175 °C. Its TO‑220‑2 package provides thermal stability and ease of mounting. It is suitable for industrial-grade circuits, renewable energy systems, motor drives, and other applications requiring reliable, fast-recovery rectification.
Key Specs
| Parameter | Value |
|---|---|
| Maximum Repetitive Reverse Voltage (Vr) | 600 V |
| Average Rectified Forward Current (If(AV)) | 8 A (TC = 150 °C) |
| Maximum Forward Voltage (Vf @ 8 A) | 2.1 V |
| Reverse Recovery Time (trr) | ≤ 35 ns (typical < 30 ns) |
| Non-Repetitive Peak Surge Current (Ifsm) | 100 A (half-wave, 1 phase, 60 Hz) |
| Maximum Power Dissipation (Pd) | 75 W |
| Operating Junction Temperature | –65 °C to +175 °C |
| Package / Case | TO‑220‑2L |
| Compliance | RoHS-compliant |

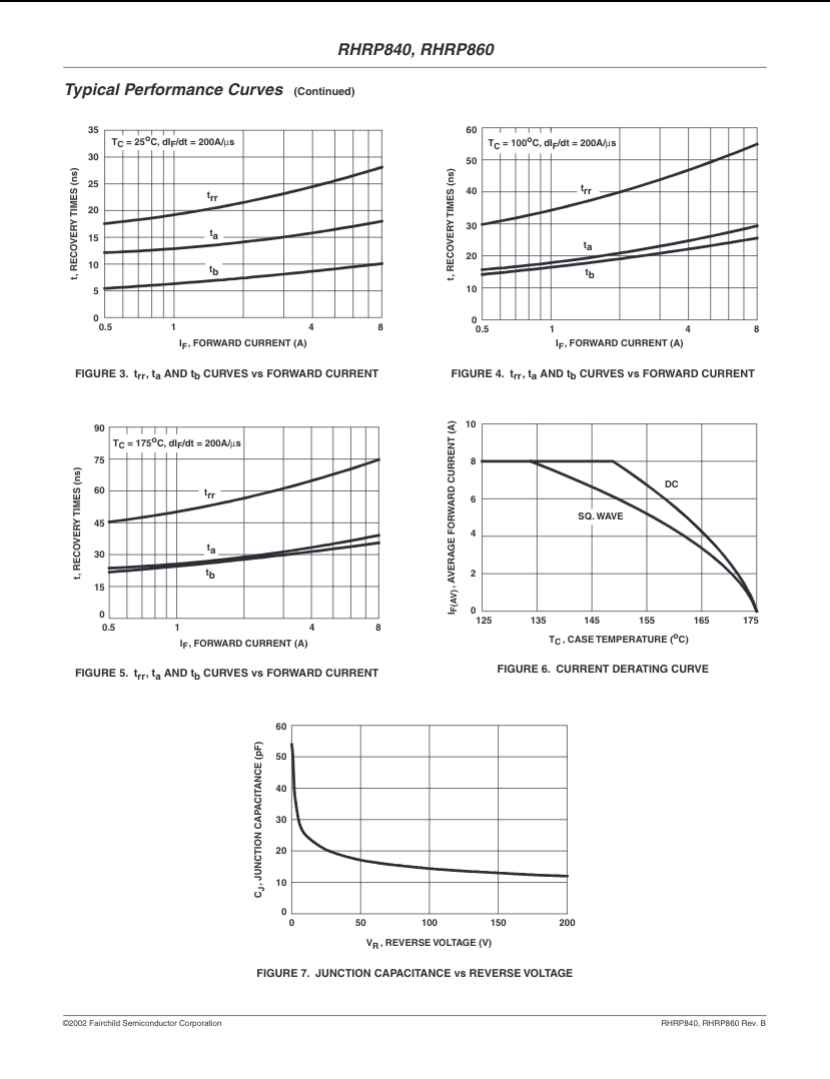

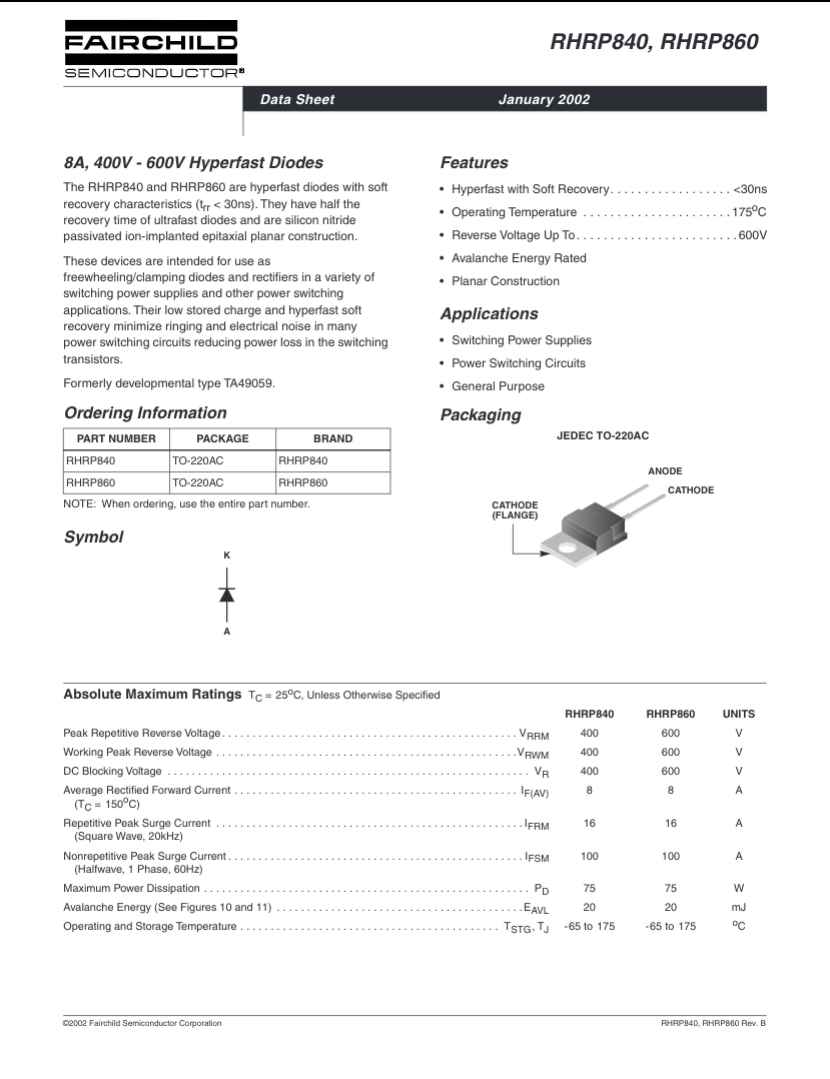

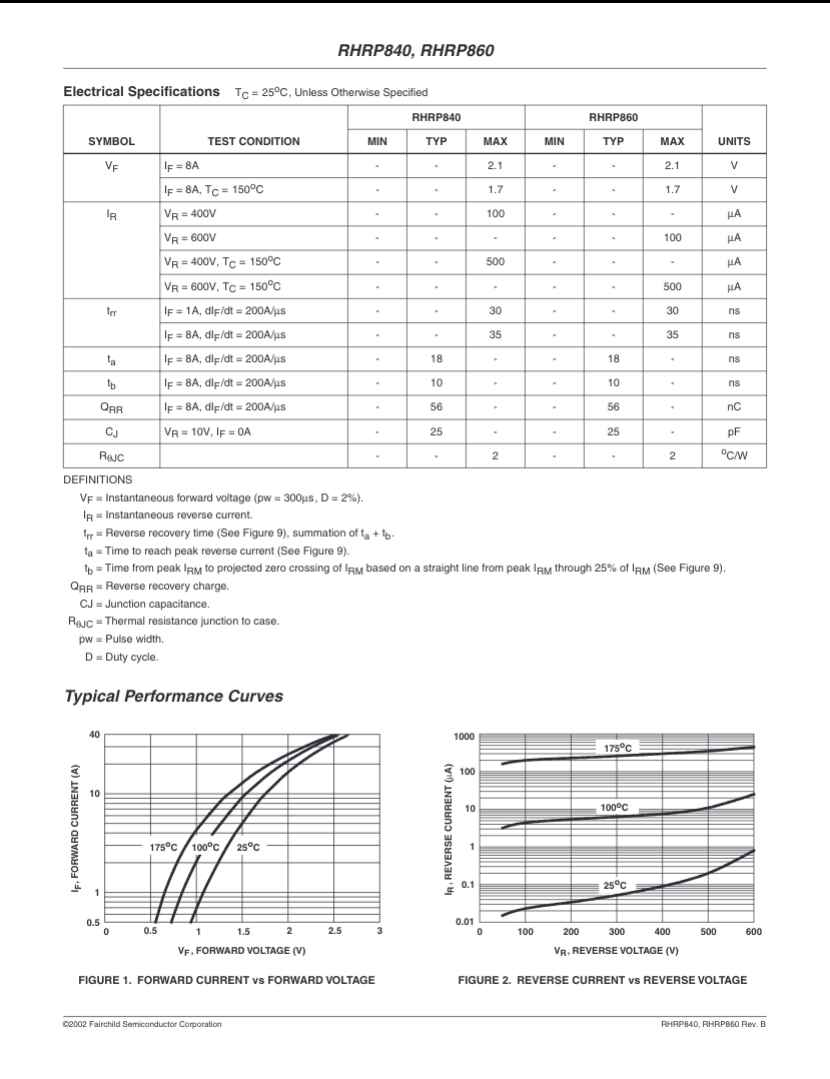

For more detailed information, please refer to the RHRP860 datasheet.
