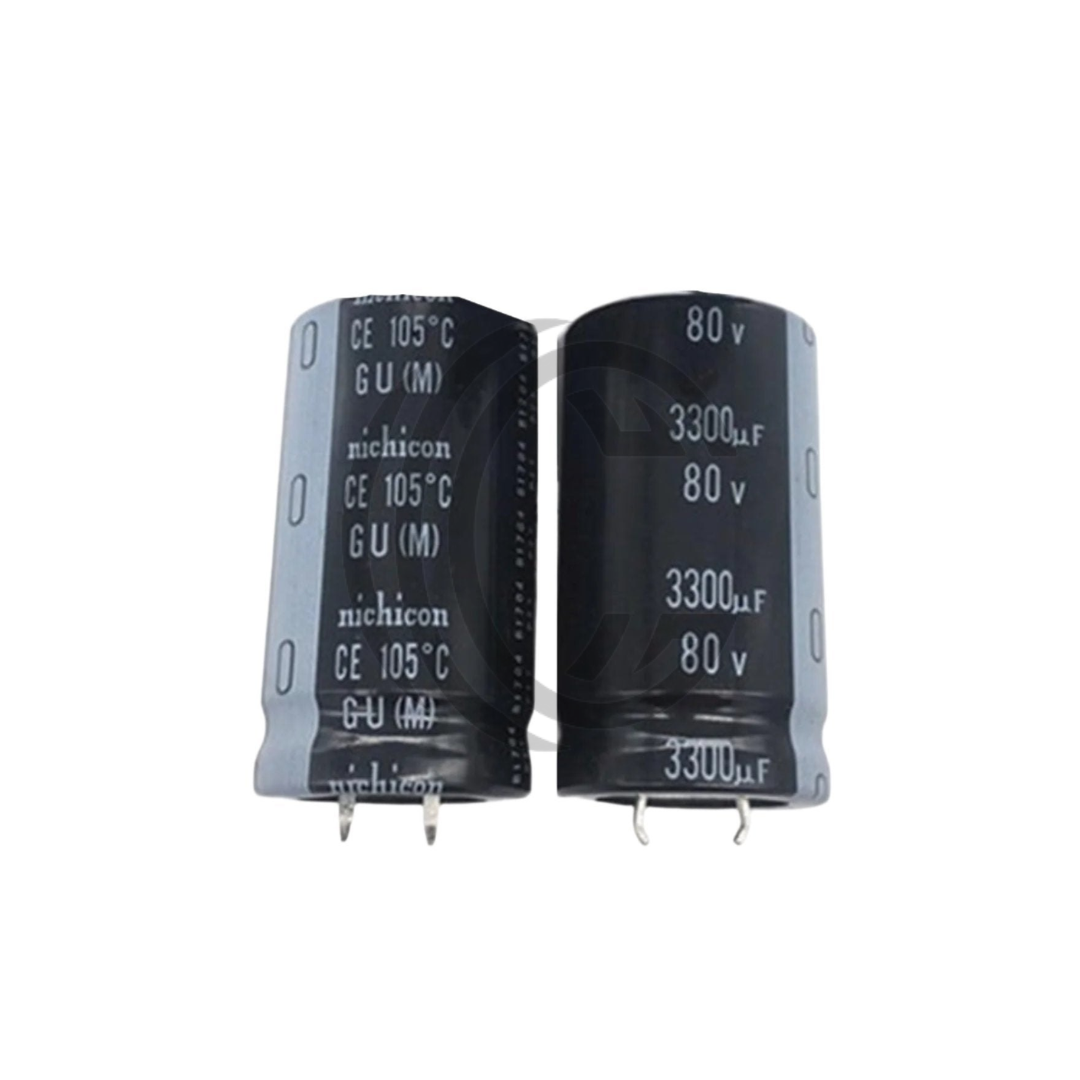

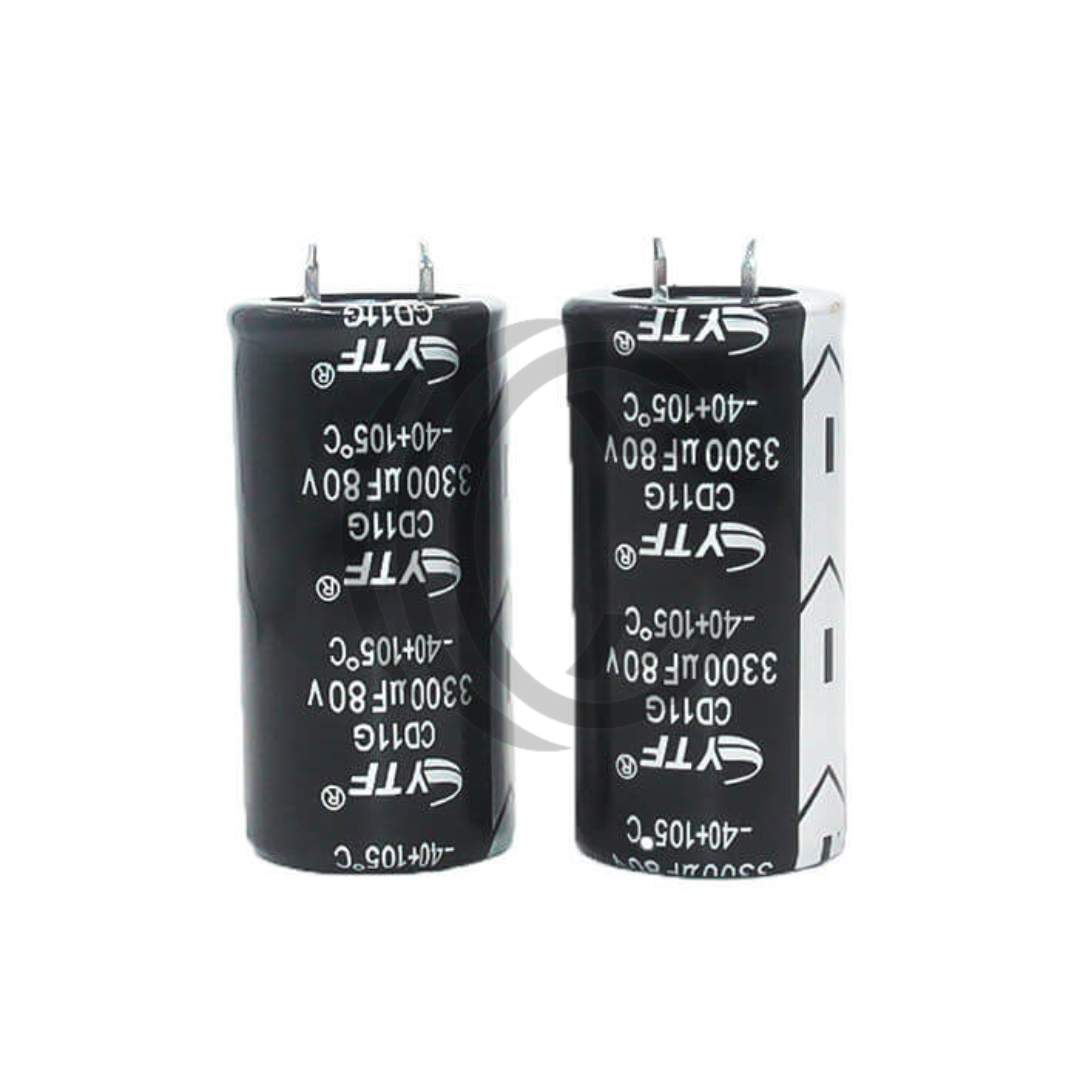

3300uF 80V Snap In Electrolytic Capacitor

3300uF 80V Radial Electrolytic Capacitor – Snap‑In Through‑Hole Aluminum

The 3300uF 80V aluminum electrolytic capacitor is a high-capacitance component ideal for smoothing and energy storage in high-voltage power supplies, inverters, and industrial systems. Commonly offered in snap‑in radial form, it is rated for 80 V DC with ±20% tolerance and long operational life of around 2,000 hours at 85 ° C.

Capable of handling up to 3 A ripple current at 120 Hz, this part offers low ESR for stable filtering performance. Typical body dimensions are approximately 30 mm diameter × 35 mm height with ~10 mm lead spacing, operating over −40 °C to +85 °C.

Available from established manufacturers such as Nichicon, Vishay, Rubycon, and KEMET, these capacitors meet RoHS standards and are suitable for industrial power electronics and robust consumer applications.

Key Specs Capacitance: 3300 uF Voltage Rating: 80 V DC Tolerance: ±20% Ripple Current: ~3 A @ 120 Hz ESR: Low (typically ~100 mΩ) Operating Temp: −40 °C to +85 °C Load Life: ~2,000 h @ 85 °C Package: Snap‑in radial can Dimensions: ~30 mm diameter × 35 mm height Lead Spacing: ~10 mm Compliance: RoHS
