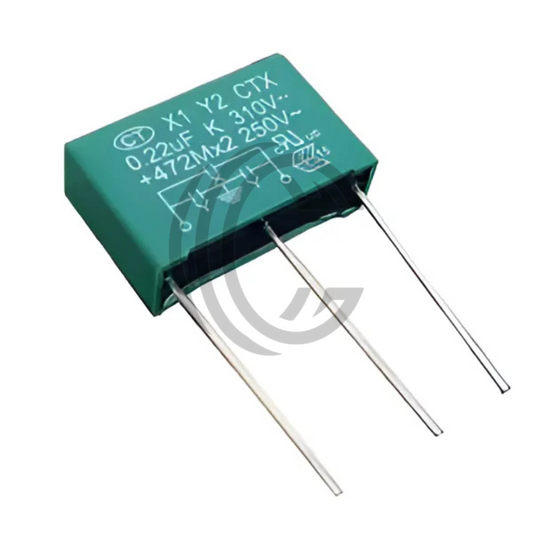

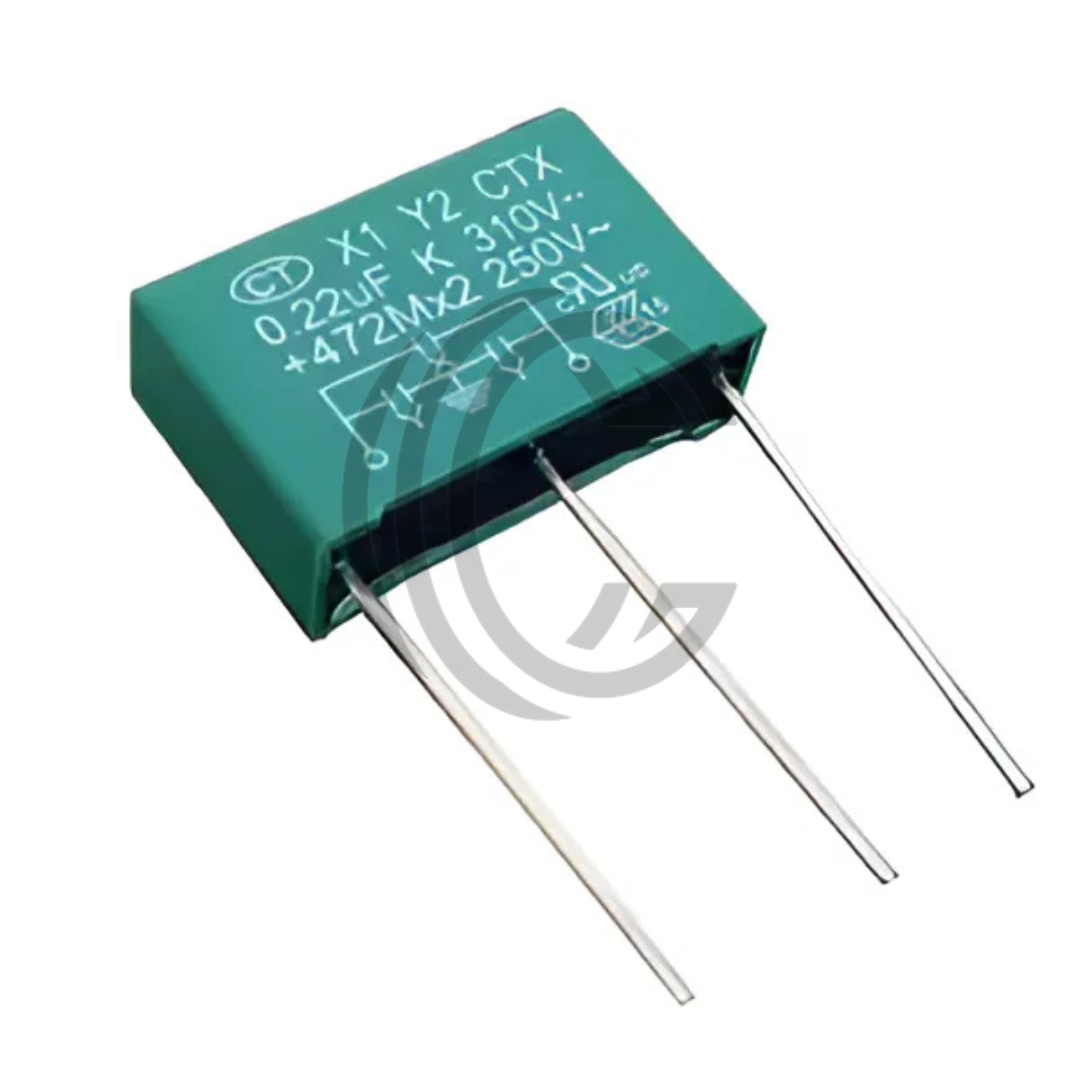

0.22uF 250V AC Film Capacitor – Metallized Polyester / Polypropylene
The 0.22uF 250V AC film capacitor is a general-purpose, through-hole component designed for AC filtering and pulse applications. Built with metallized polyester or polypropylene dielectric, it provides low ESR, stable capacitance, and self-healing properties. It supports operation from −40°C to +105°C, with typical tolerance of ±10%.
Ideal for EMI suppression, snubber circuits, and AC line filtering, this capacitor is available in axial or radial box-style packages with a compact footprint (lead spacing ~10mm). It is widely used in industrial controls, power supplies, consumer appliances, and motor drives. Compatible options include parts from EPCOS, Panasonic, and KEMET.
Key Specs
Capacitance: 0.22uF Rated Voltage: 250V AC Dielectric: Metallized polyester or polypropylene Tolerance: ±10% (typical) Temperature Range: −40°C to +105°C Lead Type: Axial or radial through-hole Features: Low ESR, self-healing, stable performance Applications: EMI filtering, snubber circuits, AC line suppression Dimensions: ~10–13mm body, 7.5–10mm lead spacing Compliance: RoHS
