Vincotech K200A05 1200V, 15A IGBT Module

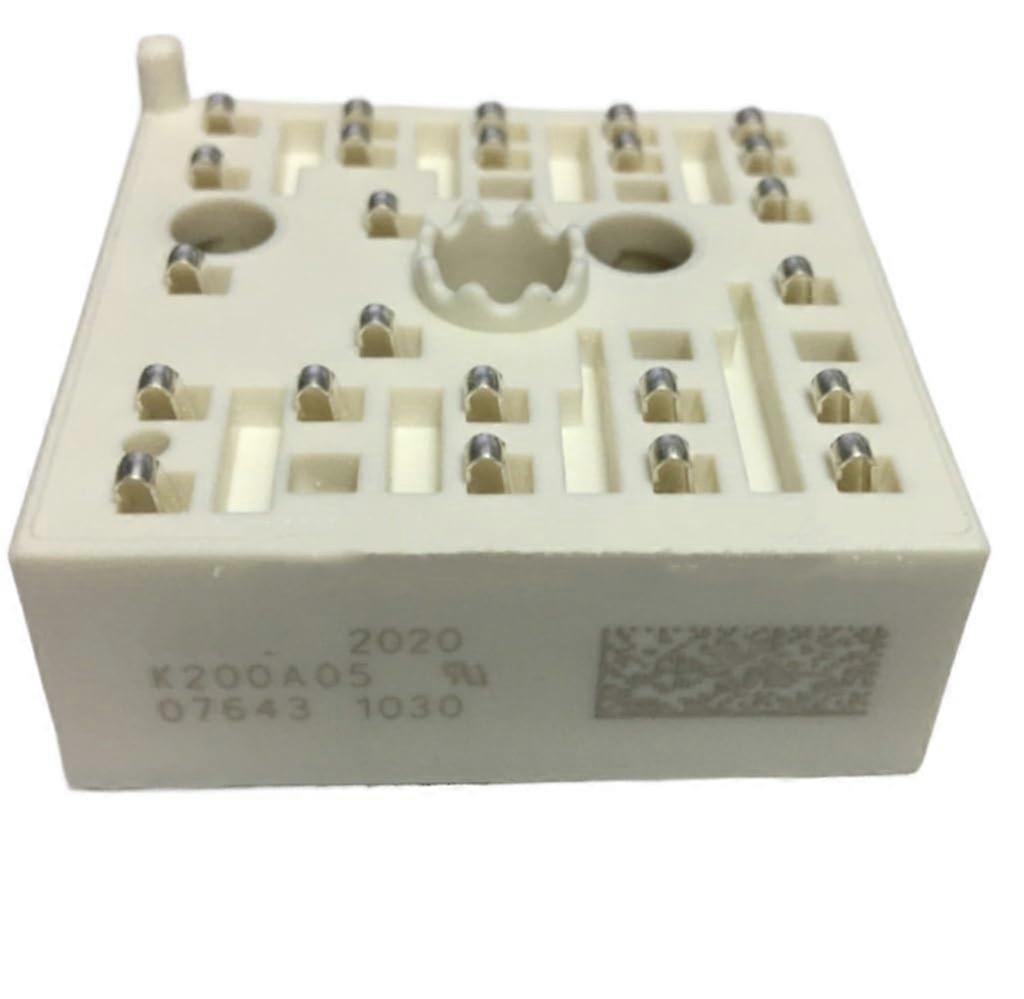

K200A05 IGBT Module

The K200A05 is a robust power IGBT (Insulated Gate Bipolar Transistor) module designed for demanding industrial and commercial power electronics. Engineered by Vincotech / Mitsubishi, this module offers 1200 V blocking voltage and 15 A current capability, making it ideal for medium-power switching tasks. Whether in motor drives, inverters, UPS systems, or industrial control equipment, the K200A05 delivers strong switching performance with good thermal stability and dependable operation under load.

Built to offer both efficiency and durability, the module features the MiniSKiiP® PIM 1 package, which simplifies mounting and cooling, reducing thermal resistance and improving heat dissipation during continuous operation. It maintains performance across a wide ambient temperature range, and its design ensures low conduction losses, fast switching transitions, and robust operation under frequent cycling. These features help minimize energy waste, extend lifespan, and reduce maintenance costs.

With industrial and commercial use in mind, the K200A05 is well suited for applications such as three-phase motor drives, renewable energy inverters, industrial power supplies, and uninterruptible power systems. Even though this module is marked as discontinued by the manufacturer, its performance specs make it valuable for replacement, maintenance, or design work where similar loading and protection parameters are required. Users selecting this device benefit from its proven track record in power electronics and its compatibility with many industrial systems.

For more detailed information, please refer to the official Vincotech / Mitsubishi K200A05 datasheet (PDF).

Key Specs (from official datasheet / verified sources)
