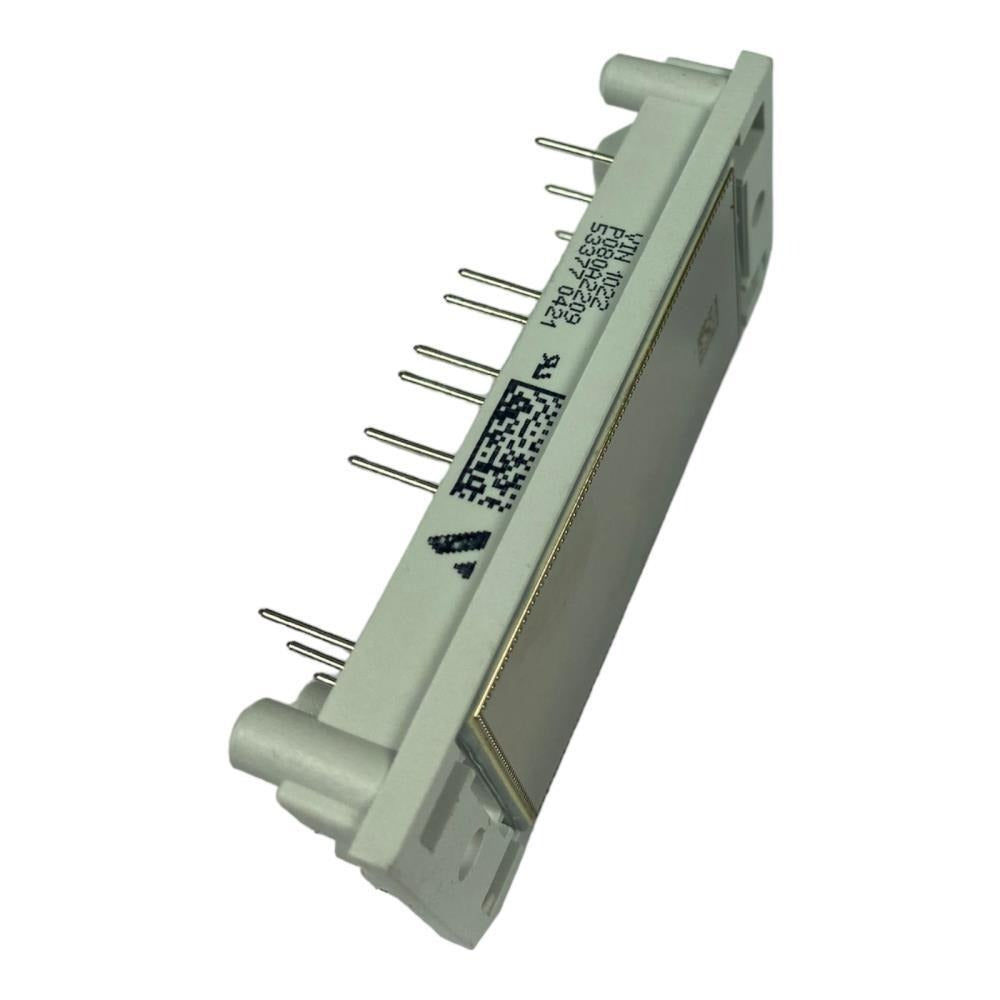

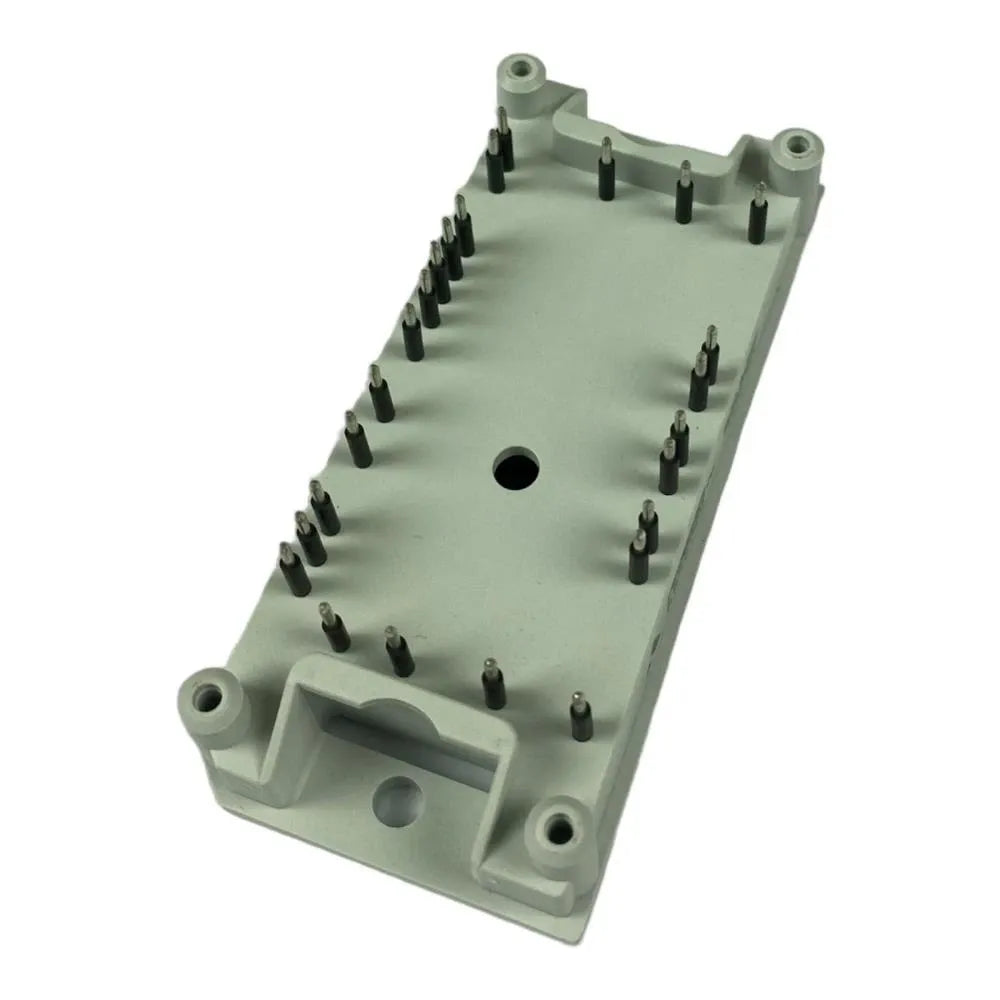

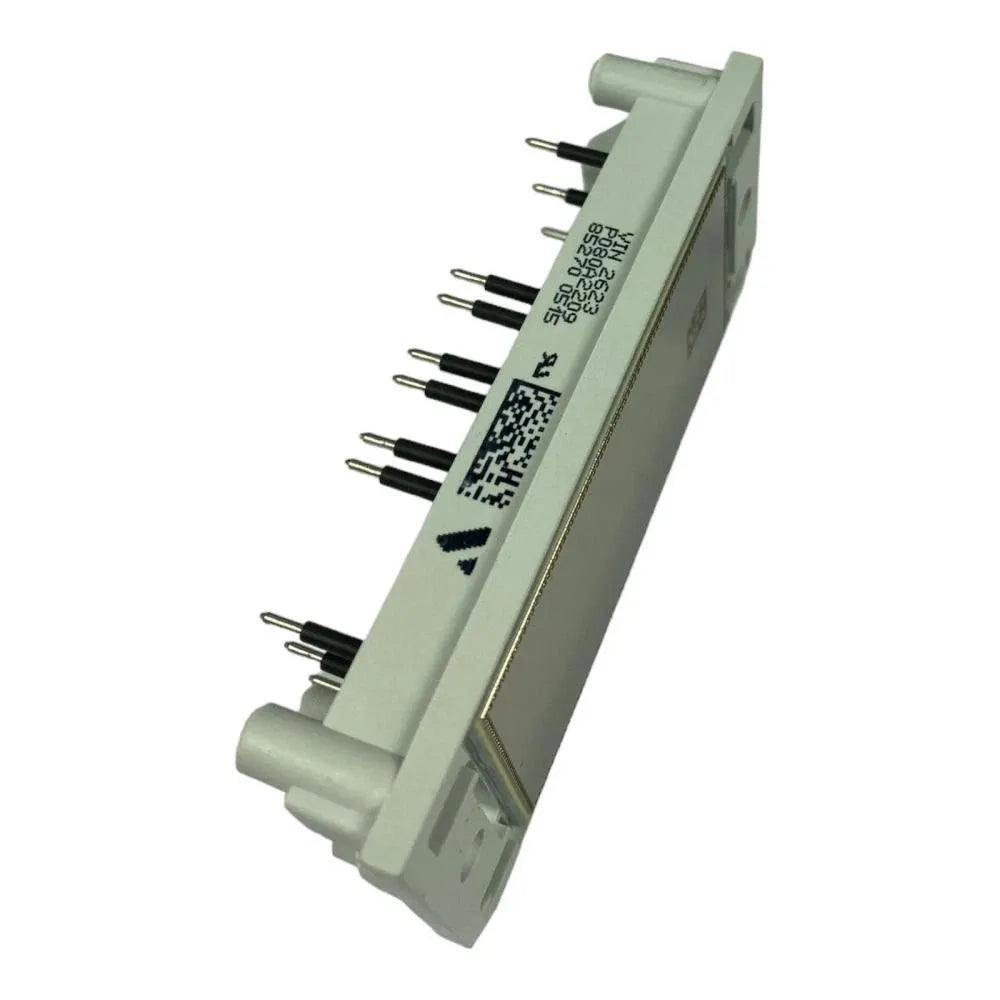

VINCO P080A2209 IGBT Module
Regular price
Rs.0.00
P080A2209
The VINCO P080A2209 is an IGBT power module designed for industrial and commercial power electronics. It is used in inverter systems, motor drives, and power converters where stable switching and thermal reliability are required. The module is built in a 25-pin package and is RoHS compliant, making it suitable for a wide range of controlled environments.
This module is structured for consistent operation with low thermal resistance and mechanical durability, supporting extended switching cycles and elevated junction temperatures. Its construction and form factor make it compatible with standard housings and cooling arrangements used in industrial converters. The P080A2209 is listed by distributors as discontinued by the manufacturer but remains available from various suppliers.
Key benefits include standard pin configuration, RoHS compliance, and availability for replacement or maintenance needs in existing systems. Electrical ratings such as collector-emitter voltage, continuous collector current, and switching characteristics should be confirmed in the datasheet before design or replacement.
Key Specs
| Parameter | Value / Note |
|---|---|
| Part number | P080A2209 |
| Manufacturer / Brand | VINCO |
| Device type | IGBT power module |
| Package | 25-pin module |
| Compliance | RoHS |
| Status | Discontinued (stock through distributors) |
| Weight (catalog) | ~0.45 kg |
| Electrical data | Refer to datasheet for Vces, Ic, Vge, Rth, switching times |
| Notes | Confirm dimensions and ratings in datasheet before use |
