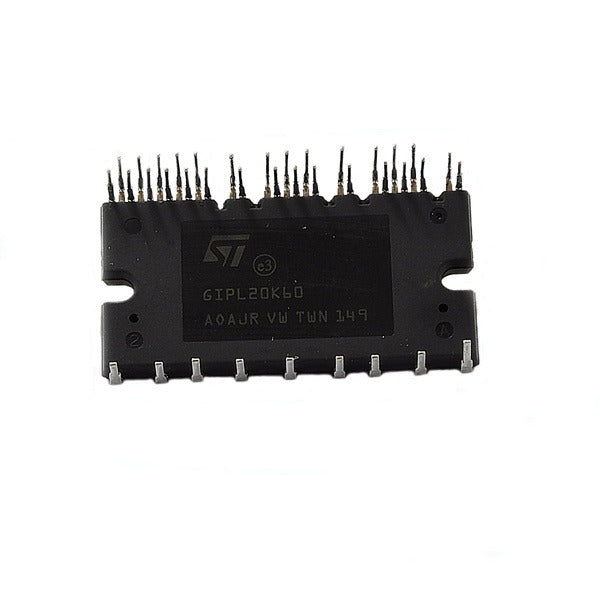

STMicroelectronics GIPL20K60 600V 20A IGBT Module
GIPL20K60 IGBT Intelligent Power Module: High-Performance Solution for Power Electronics
The GIPL20K60, developed by STMicroelectronics, is a high-performance Intelligent Power Module (IPM) designed for efficient and reliable operation in power electronics applications. With a 20 A current rating and a 600 V voltage rating, this module is engineered to meet the demanding requirements of modern industrial and commercial systems.
This module integrates IGBT inverter bridge, gate drivers, free-wheeling diodes, and protection features in a compact SDIP-38L package. It is ideal for 3-phase inverters in applications such as home appliances and air conditioners. The GIPL20K60 offers low conduction and switching losses, contributing to energy savings and reduced heat generation. Its robust design ensures long-term reliability and minimal maintenance. The built-in protection features prevent damage to the module and connected equipment, enhancing system safety.
For more detailed information, please refer to the STMicroelectronics datasheet.
Key Specifications
| Feature | Specification |
|---|---|
| Type | IGBT Intelligent Power Module |
| Current Rating | 20 A |
| Voltage Rating | 600 V |
| Package Type | SDIP-38L |
| Isolation Voltage | 2500 Vrms/min |
| Thermal Resistance | Low (DBC Substrate) |
| Operating Temperature | -40°C to +150°C |
| Protection Features | Undervoltage Lockout, Overcurrent, Overtemperature, Interlocking |
| Temperature Sensing | 5 kΩ NTC Thermistor |
| Compliance | UL Recognized (File E81734) |
