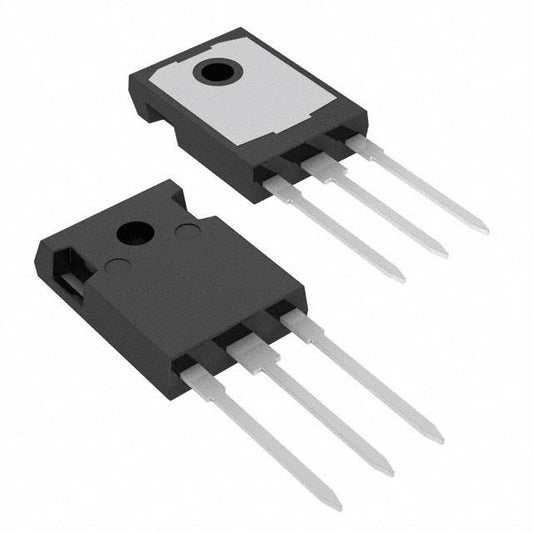

STGW40H120DF2 1200V 40A IGBT TO-247
Regular price
Rs.450.00
Sale price
Rs.500.00
STGW40H120DF2
The STGW40H120DF2 is a 1200V, 40A trench-gate field-stop IGBT from STMicroelectronics’ H-Series, designed for high-voltage and high-frequency power conversion. The structure provides a typical VCE(sat) of 2.1V at 40A and includes a fast-recovery antiparallel diode for controlled switching performance. The TO-247 package supports stable thermal behavior with a maximum junction temperature rating of 175°C.
The IGBT is suitable for solar inverters, UPS units, welding equipment, PFC stages, and high-frequency converters. The field-stop design helps reduce tail current during turn-off and supports energy-efficient operation. Thermal capability and H-Series construction allow consistent functionality under elevated electrical and thermal stress conditions.
The STGW40H120DF2 can be used in applications requiring low conduction loss, controlled switching, and long-term reliability.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | STGW40H120DF2 |
| Collector-Emitter Voltage (VCES) | 1200V |
| Continuous Collector Current (IC) | 40A |
| Typical VCE(sat) | 2.1V at 40A |
| Technology | Trench Gate + Field-Stop |
| Antiparallel Diode | Fast-Recovery Type |
| Package | TO-247 |
| Maximum Junction Temperature | 175°C |
| Applications | Solar Inverters, UPS, Welding Systems, PFC Circuits, High-Frequency Converters |
| Compliance | RoHS |
