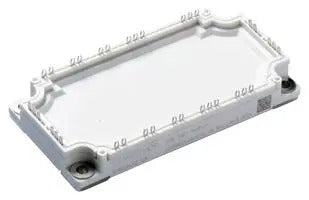

Starpower GD75FFY120C5S 1200V 75A IGBT module

Starpower GD75FFY120C6S IGBT Power Module

The Starpower GD75FFY120C6S is an expertly engineered IGBT (Insulated Gate Bipolar Transistor) power module, designed to deliver exceptional performance, reliability, and durability for both industrial and commercial power electronics applications. Built using low V_CE(sat) trench IGBT technology, it offers ultra-fast switching and robust short-circuit tolerance, making it an ideal component for critical systems including welding machines, uninterruptible power supplies (UPS), and general inverters.

This 1200 V / 75 A module features impressive short-circuit ruggedness, capable of withstanding 10 µs short-circuit events without damage. The V_CE(sat) exhibits a positive temperature coefficient—enhancing thermal stability and reducing the risk of thermal runaway. In addition, its conductance path maintains low losses and exceptional efficiency under high-power conditions.

Applications & Benefits

Starpower’s trench IGBT architecture ensures the GD75FFY120C6S operates with outstanding durability and minimal conduction losses, enabling stable and energy-efficient performance. Its rugged design supports demanding power environments and makes it well-suited for welding equipment, industrial UPS systems, and general power inverters.

The module’s compact six-in-one package simplifies integration, delivering a compact footprint with high electrical and thermal reliability. With its thermal and short-circuit durability, it's designed to maintain system integrity and uptime in harsh operational settings.

Key Specifications
