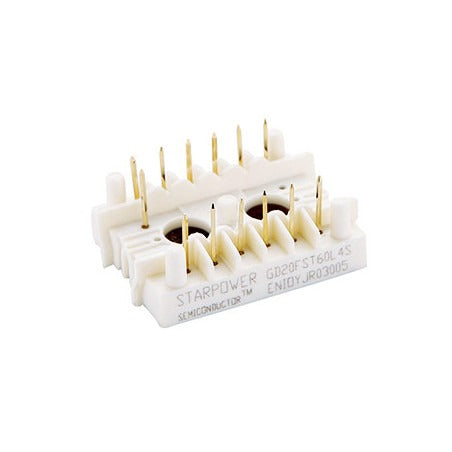

StarPower GD20FSX65L4S 650V 20A IGBT Module
Regular price
Rs.0.00
GD20FSX65L4S IGBT Module
The GD20FSX65L4S from StarPower Semiconductor is a robust Intelligent Power Module (IPM) designed to deliver exceptional performance and reliability in demanding industrial and commercial environments. Engineered with advanced trench IGBT technology, this module ensures efficient and precise motor control, making it ideal for applications such as inverters, uninterruptible power supplies (UPS), and servo drive amplifiers.
Built to withstand challenging conditions, the GD20FSX65L4S operates within a wide voltage range and offers integrated protection features, including short circuit capability up to 6μs and a maximum junction temperature of 175°C. These safety mechanisms ensure the module's longevity and reliability, even in high-stress environments. Its compact L4.0 package facilitates easy integration into existing systems, while its RoHS-compliant design underscores a commitment to environmental responsibility.
The GD20FSX65L4S's efficiency and durability make it a cost-effective solution for applications requiring high power density and compact form factors. Whether you're upgrading existing systems or designing new ones, this module provides the performance and reliability needed to meet the demands of modern industrial applications.
🔧 Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | StarPower Semiconductor |
| Module Type | Intelligent Power Module (IPM) |
| Voltage Rating (VCE(sat)) | 650V |
| Current Rating | 20A continuous, 40A peak |
| Package Type | L4.0 |
| Gate-Emitter Voltage | ±20V |
| Collector-Emitter Saturation Voltage | 1.45V to 1.9V |
| Short Circuit Capability | 6μs |
| Maximum Junction Temperature | 175°C |
| Operating Temperature Range | -40°C to +150°C |
| Isolation Voltage | 2500V RMS (f=50Hz, t=1min) |
| Applications | Inverters, UPS, Servo Drive Amplifiers |
| Compliance | RoHS Compliant |
For more detailed information, please refer to the StarPower datasheet.
