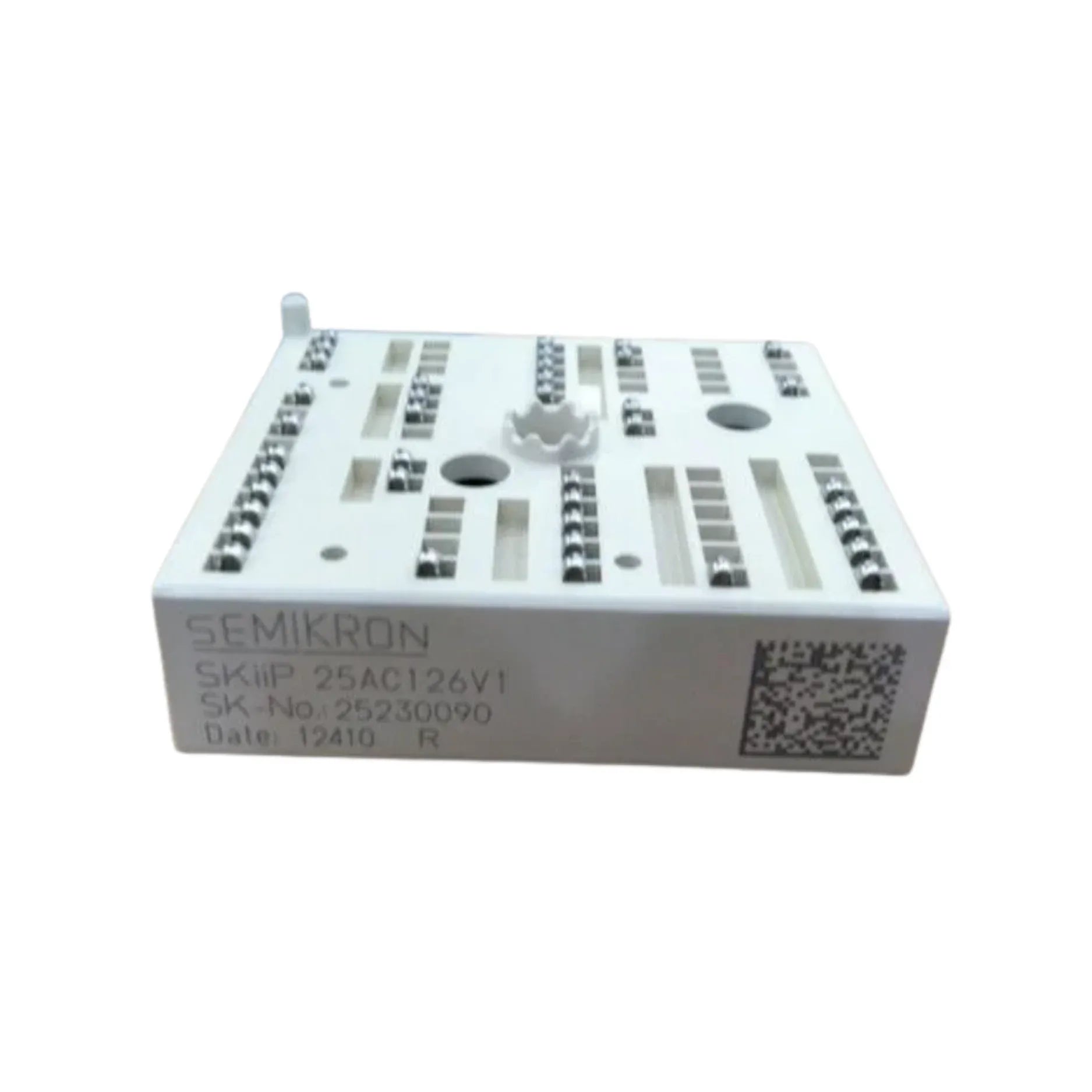

SKiiP 25AC126V1 IGBT Module
The SKiiP 25AC126V1 is a high-performance IGBT module from Semikron Danfoss, engineered to meet the rigorous demands of industrial power electronics applications. With a voltage rating of 1200 V and a current rating of 50 A, this module offers exceptional efficiency and reliability. Its sixpack topology ensures optimal performance in various applications, including uninterruptible power supplies (UPS), inverters, and photovoltaic systems.
Designed for industrial and commercial use, the SKiiP 25AC126V1 is built to withstand harsh operating conditions, providing long-term durability and reduced maintenance needs. Its solder-free SKiiP technology ensures maximum reliability and power density for compact, high-performance motor drives. The module's robust and soft freewheeling diodes in CAL technology further enhance its performance and longevity.
For more detailed information, please refer to the Semikron datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | 1200 V |
| Current Rating | 50 A |
| Topology | Sixpack |
| Package Type | MiniSKiiP® 2 |
| Pulsed Collector Current | 100 A |
| Gate-Emitter Voltage | ±20 V |
| Maximum Junction Temperature | 150°C |
| Typical Applications | UPS, Inverters, Photovoltaics |
For more detailed information, please refer to the Semikron datasheet.
