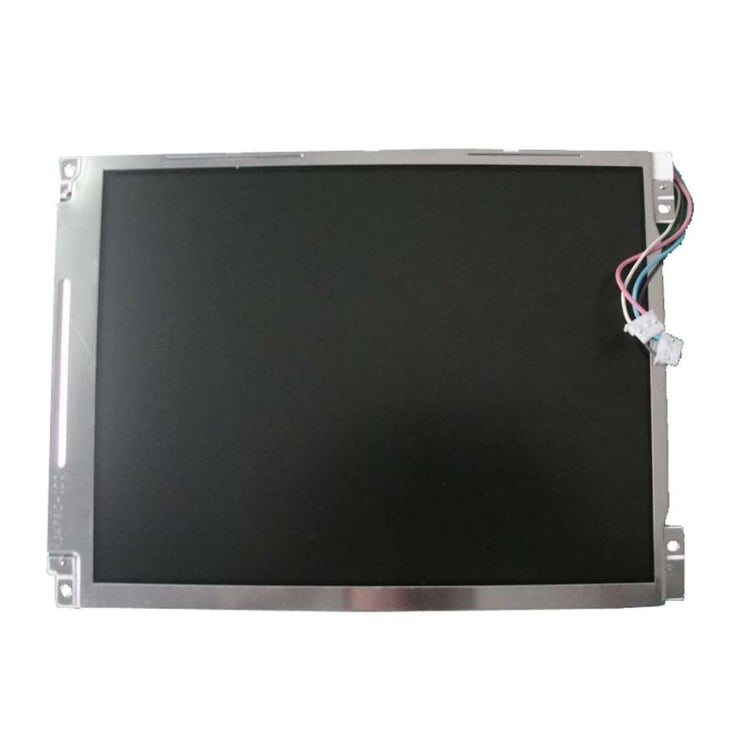

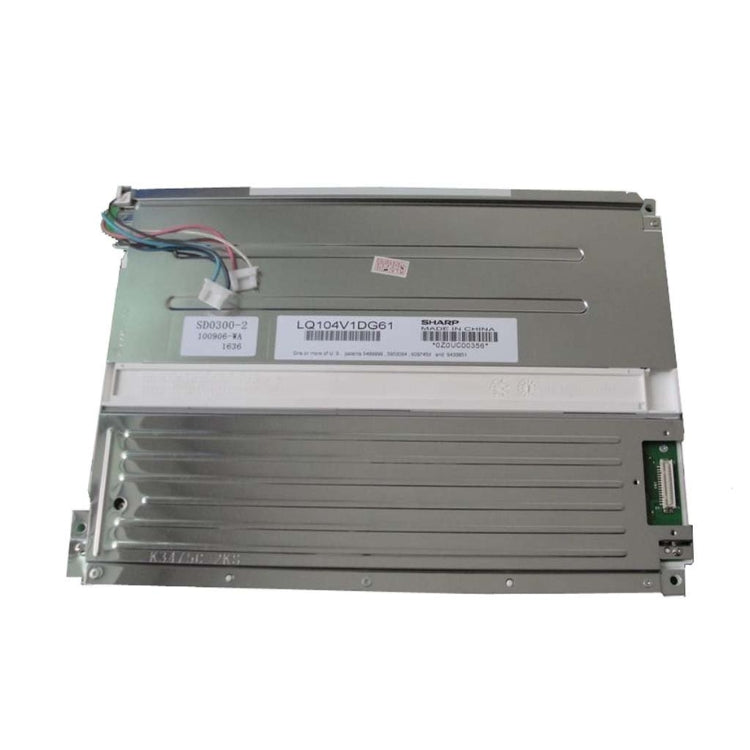

Sharp LQ104V1DG61 10.4-Inch TFT LCD Display Panel

LQ104V1DG61 10.4-Inch TFT LCD Display Panel – Sharp Industrial Grade

The LQ104V1DG61 is a premium 10.4-inch TFT LCD panel developed by Sharp, designed specifically for industrial-grade displays where high reliability, brightness, and clarity are required. With a VGA resolution of 640×480 pixels and a robust anti-glare screen, this display offers sharp image reproduction across wide viewing angles, making it ideal for factory automation, diagnostic equipment, marine interfaces, and HMI applications. Its long-life CCFL backlight ensures consistent illumination and extended operating life, even under harsh conditions.

The panel is housed in a durable mechanical frame with a slim form factor and secure mounting features. The LQ104V1DG61 is engineered to withstand demanding use in environments with fluctuating temperatures and high usage cycles, ensuring performance stability and minimum maintenance. Its compatibility with legacy and embedded systems makes it a preferred option for OEMs and system integrators. Sharp's manufacturing precision and proven TFT technology provide reliability, reduced downtime, and long-term availability for industrial supply chains.

Key Specs

Display Size: 10.4 Inches
Resolution: 640×480 (VGA)
Panel Type: TFT LCD
Backlight: CCFL, Long Life
Brightness: Approx. 350 cd/m²
Viewing Angle: Wide (Typical 120° horizontal)
Interface: TTL / CMOS (Parallel)
Operating Temp Range: -10°C to +65°C
Applications: Factory Automation, HMI Panels, Medical Equipment, Marine Displays
Brand: Sharp
Compliance: RoHS
