SEMiX302GB12E4S 1200V 300A IGBT Power Module
Guarantee Safe Checkout
SEMiX302GB12E4S 1200V 300A IGBT Power Module

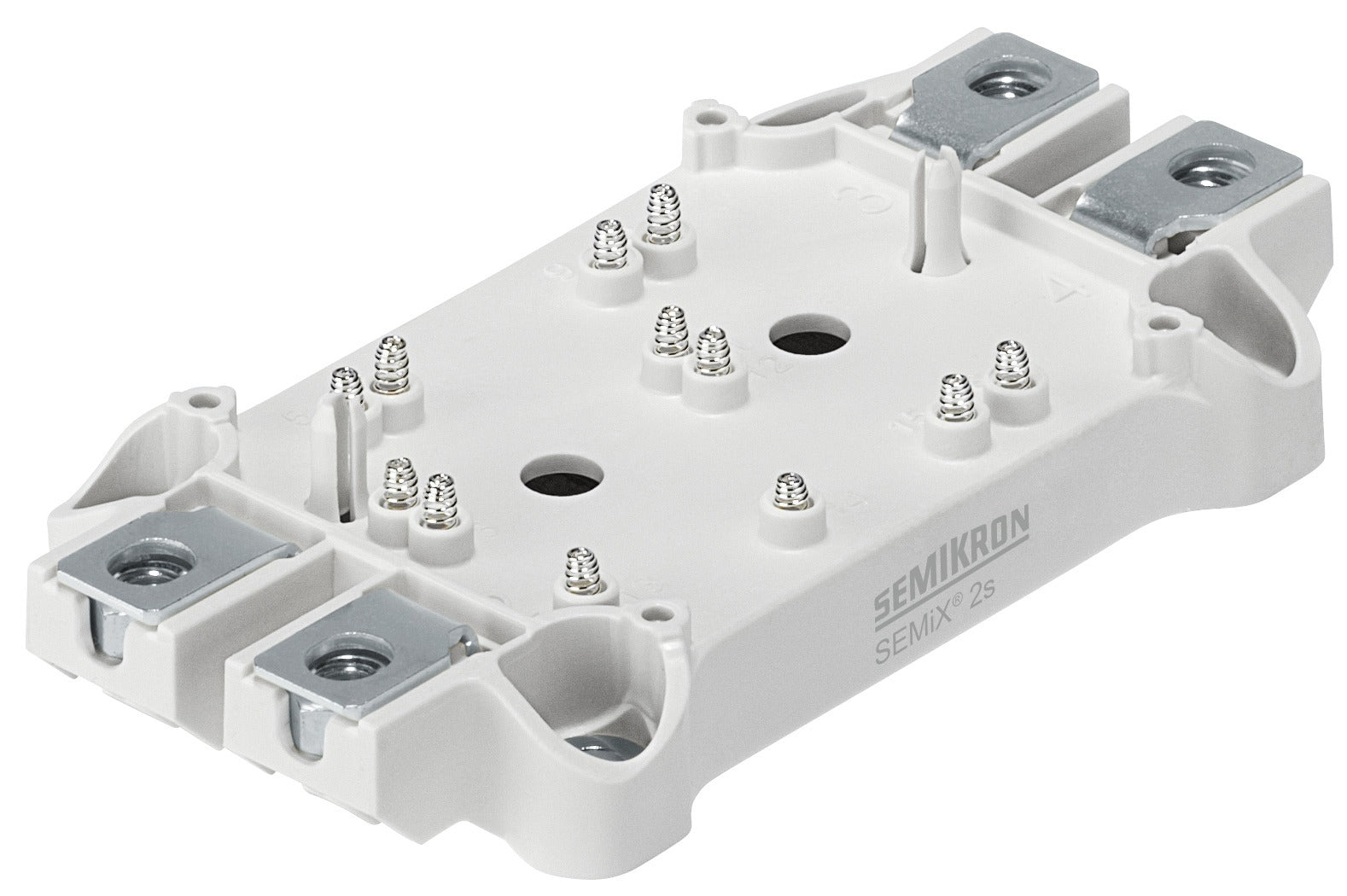

SEMiX302GB12E4S IGBT Power Module
The SEMiX302GB12E4S by Semikron Danfoss is a high-performance IGBT power module designed for demanding industrial and commercial power electronics applications. With a maximum collector-emitter voltage (V_CEO) of 1200V and a continuous collector current (I_C) of 300A, this module ensures efficient power conversion and reliable operation under continuous load conditions.
Utilizing Trench IGBT 4 technology, the SEMiX302GB12E4S offers low conduction losses and high switching efficiency, making it ideal for applications such as motor drives, uninterruptible power supplies (UPS), and photovoltaic inverters. Its SEMiX® 2s package provides a compact footprint suitable for space-constrained designs, while its high short-circuit capability enhances system safety and durability.
Operating within a temperature range of -40°C to +175°C, the SEMiX302GB12E4S is built to withstand demanding environments. Its UL recognition (file no. E63532) further attests to its compliance with international safety standards, ensuring dependable performance in various industrial and commercial applications.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V_CEO) | 1200V |
| Continuous Collector Current (I_C) | 300A |
| Pulsed Collector Current (I_C,pulse) | 900A |
| Package Type | SEMiX® 2s |
| Technology | Trench IGBT 4 |
| Topology | Half-Bridge |
| Gate-Emitter Voltage (V_GE) | ±20V |
| Operating Temperature Range | -40°C to +175°C |
| Weight | 0.24 kg |
| Mounting Type | Screw |
| Short-Circuit Capability | High |
| UL Recognition | E63532 |
For more detailed information, please refer to the Semikron Danfoss SEMiX302GB12E4S datasheet.
