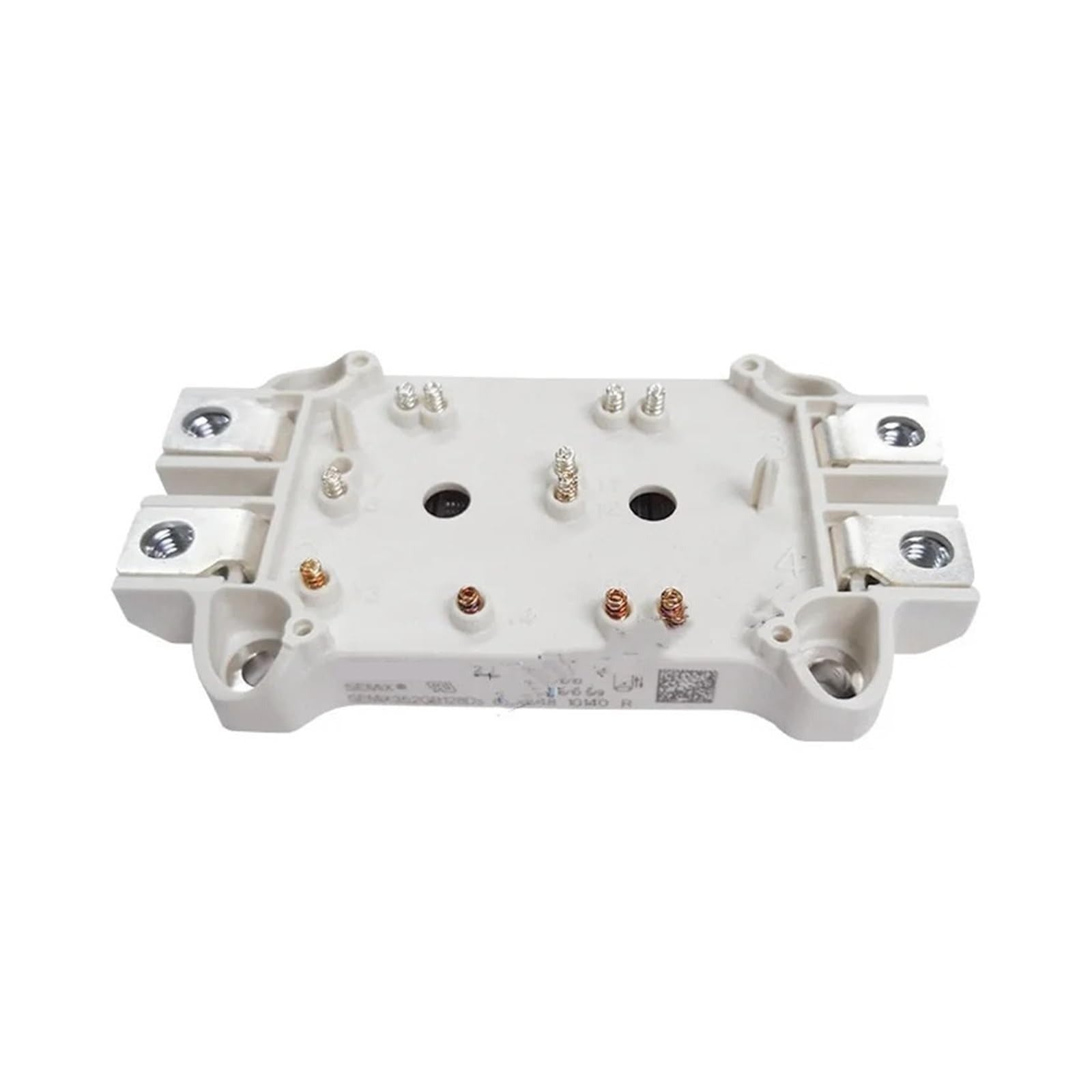

SEMiX101GD126HDS
The SEMiX101GD126HDS from SEMIKRON is a high-performance IGBT power module designed for demanding industrial and commercial applications. Built using advanced Trench IGBT 3 technology, this module offers exceptional efficiency, reliability, and durability. Its robust design ensures optimal performance in various power electronics systems.
With a voltage rating of 1200 V and a continuous collector current of 75 A, the SEMiX101GD126HDS is ideal for applications such as AC inverter drives, uninterruptible power supplies (UPS), and electronic welding equipment. The module's homogeneous Si Trench technology provides a positive temperature coefficient for VCE(sat), enhancing thermal stability and performance. Additionally, its high short-circuit capability ensures reliable operation under fault conditions.
Housed in the compact SEMiX 13 package, measuring 138 x 71 x 17 mm and weighing 0.289 kg, the SEMiX101GD126HDS is designed for easy integration into various systems. Its UL recognition (file no. E63532) underscores its compliance with international safety standards, making it a trusted choice for engineers seeking a durable and efficient power module.
Key Specifications
| Specification | Value |
|---|---|
| Technology | IGBT 3 (Trench) |
| Voltage Rating (VCEo) | 1200 V |
| Current Rating (IC) | 75 A |
| Collector Emitter Saturation Voltage (VCE(sat)) | 1.7 V |
| Operating Temperature (Tj max) | 125°C |
| Package Type | SEMiX 13 |
| Dimensions (L x W x H) | 138 x 71 x 17 mm |
| Weight (Net) | 0.289 kg |
| UL Recognition | E63532 |
| Country of Origin | Slovakia |
For more detailed information, please refer to the SEMIKRON datasheet
