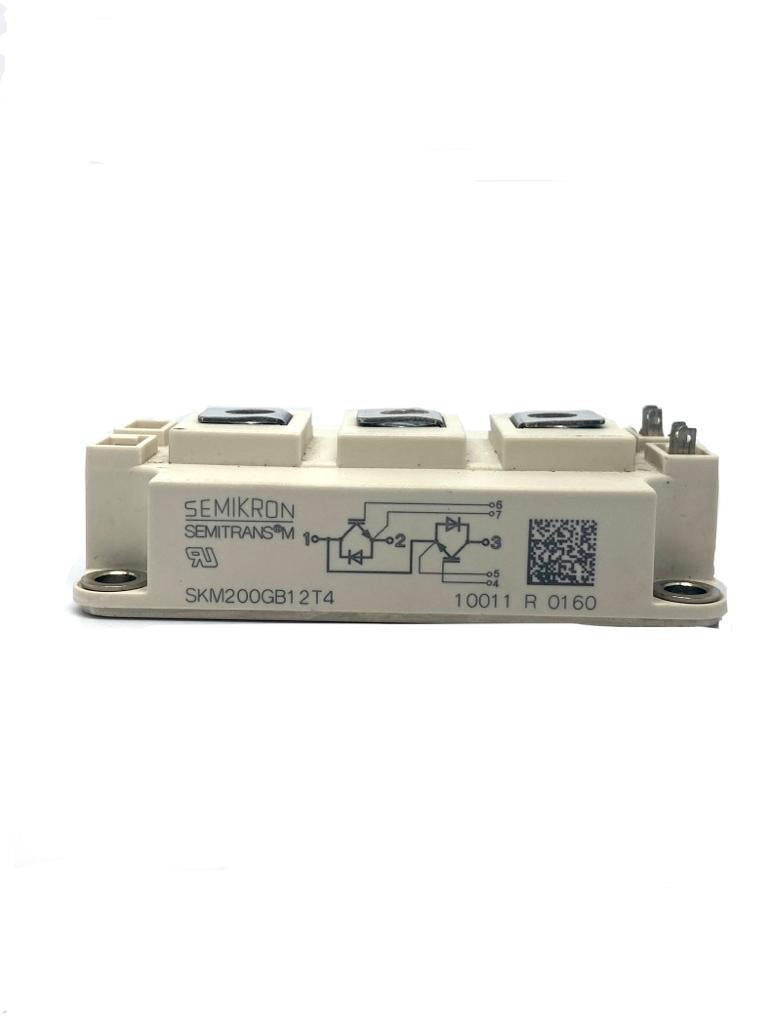

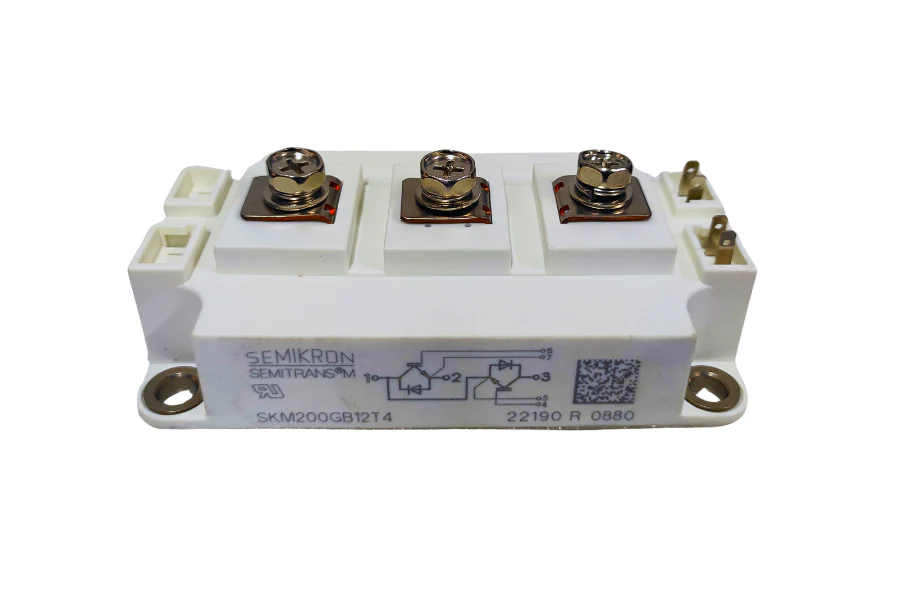

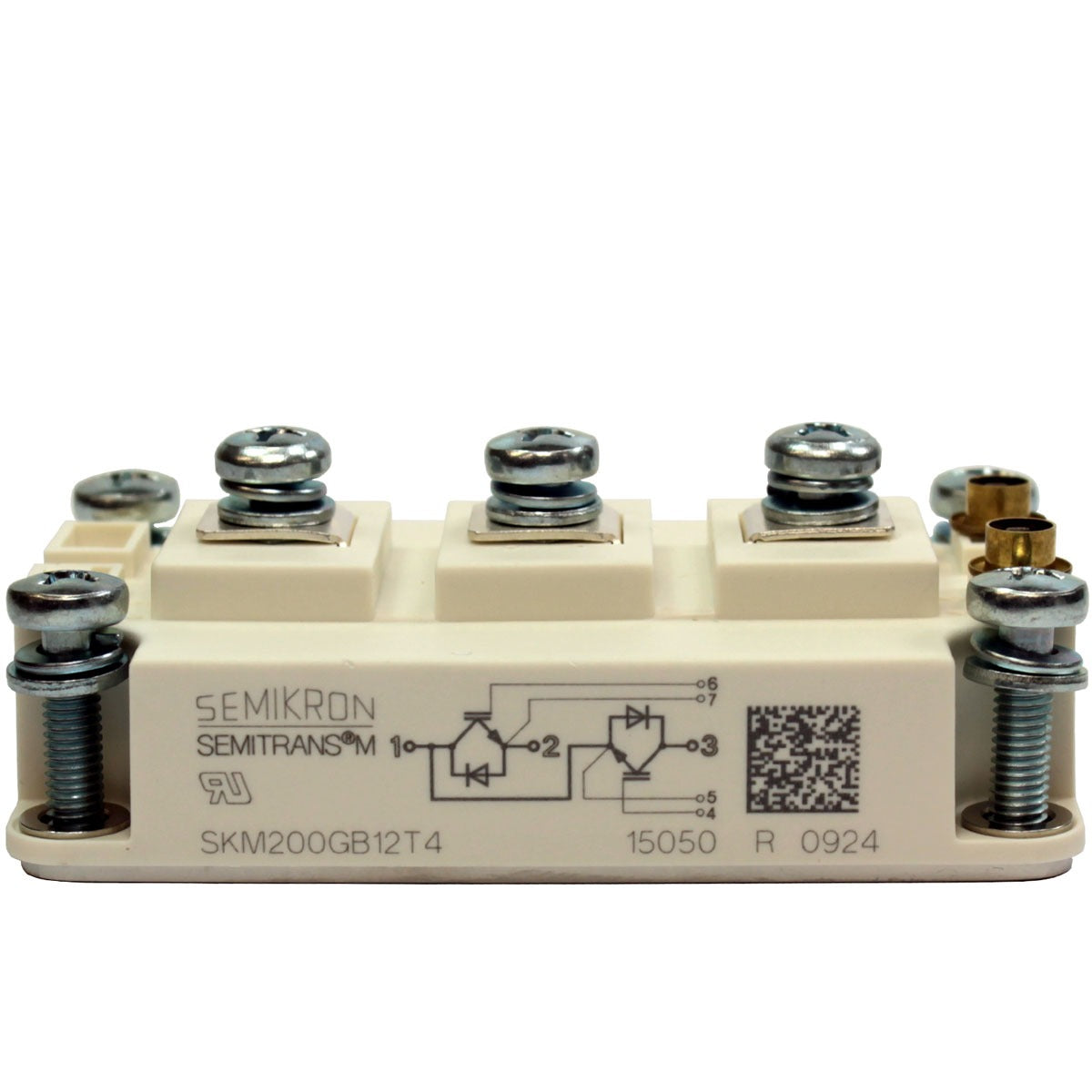

SKM200GB12T4
The SKM200GB12T4 is an IGBT module from Semikron, designed for reliable performance in power electronics. With a voltage rating of 1200V and a current capacity of 200A, it supports high-power applications efficiently. Its IGBT4 technology, with fast trench IGBT and CAL4 diodes, enables high-speed switching and low conduction losses, making it suitable for industrial power conversion systems.
The module features an insulated copper baseplate using Direct Bonded Copper (DBC) technology, providing effective thermal management and mechanical stability. Its design supports improved power cycling capability and thermal handling. Integrated gate resistors and CAL4 diodes contribute to consistent switching performance and reduced losses. The module is UL recognized for safety compliance.
The SKM200GB12T4 is suitable for applications such as AC inverter drives, uninterruptible power supplies (UPS), and electronic welders operating at switching frequencies up to 20 kHz. Its construction allows reliable operation in demanding industrial environments, offering efficiency and durability over extended periods.
Key Specifications
| Feature | Specification |
|---|---|
| Voltage Rating (Vceo) | 1200V |
| Current Rating (Ic) | 200A |
| Switching Frequency | Up to 20 kHz |
| Package Type | SEMITRANS® 3 |
| Technology | IGBT4 Fast Trench, CAL4 Diode |
| Baseplate Material | Insulated Copper (DBC) |
| Thermal Resistance (junction-case) | 0.02 to 0.038 K/W |
| Operating Temperature Range | -40°C to +150°C |
| UL Recognition | Yes (File No. E63532) |
| Weight | 325 g |
For more detailed information, please refer to the Semikron datasheet.
