SEMIKRON SKKR300/0.2-BVR Shunt Module
SEMIKRON SKKR300/0.2-BVR Shunt Module
The SEMIKRON SKKR300/0.2-BVR is a shunt module designed for accurate current measurement in power electronics systems. It is suitable for industrial and commercial applications that require reliable current sensing and stable operation under varying conditions.
The module provides a shunt resistance of 0.71 mΩ with a tolerance of ±5%, enabling precise current measurement. It supports continuous currents up to 300 A and peak currents up to 525 A. Its operating temperature range spans from -40°C to +125°C, ensuring consistent performance across different environments.

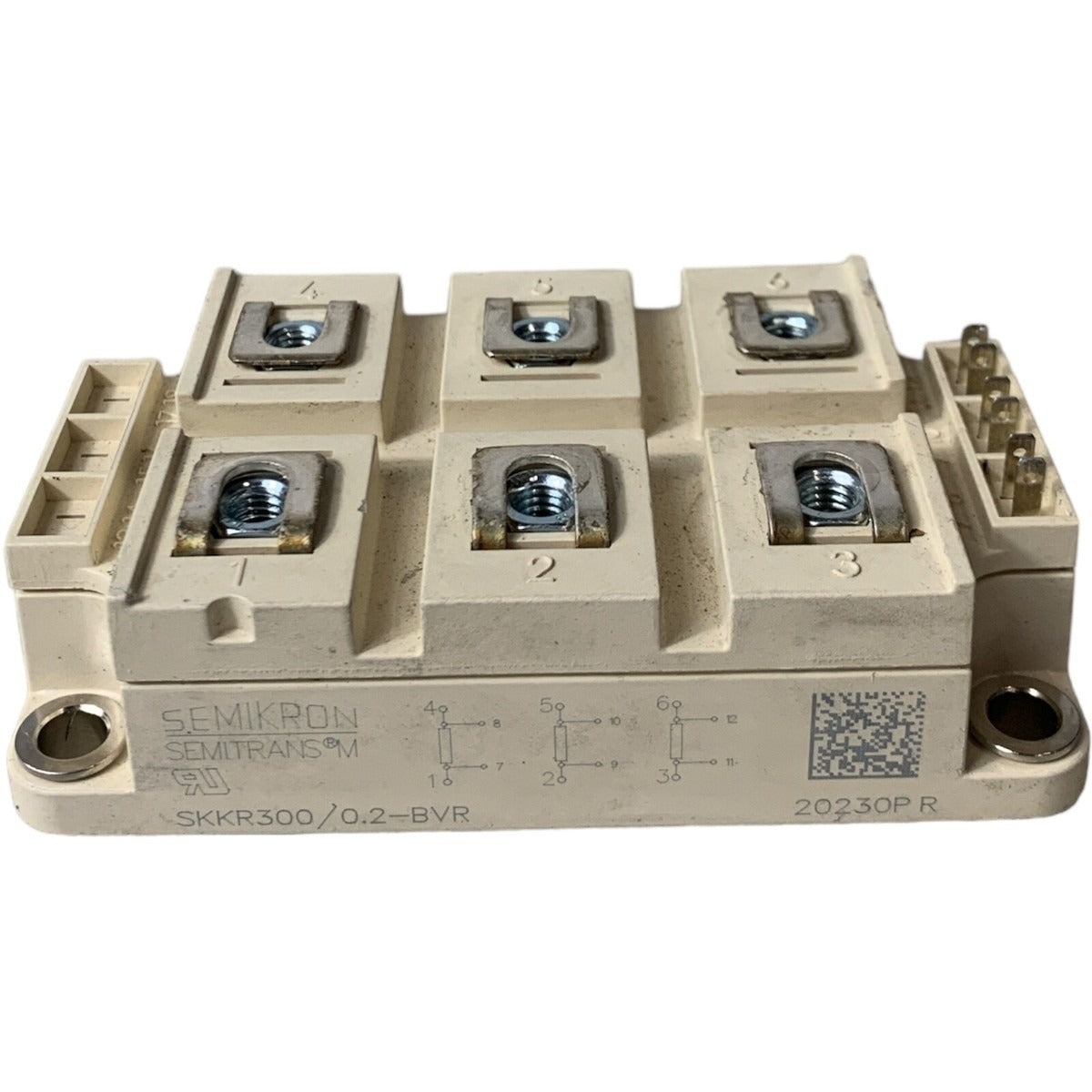

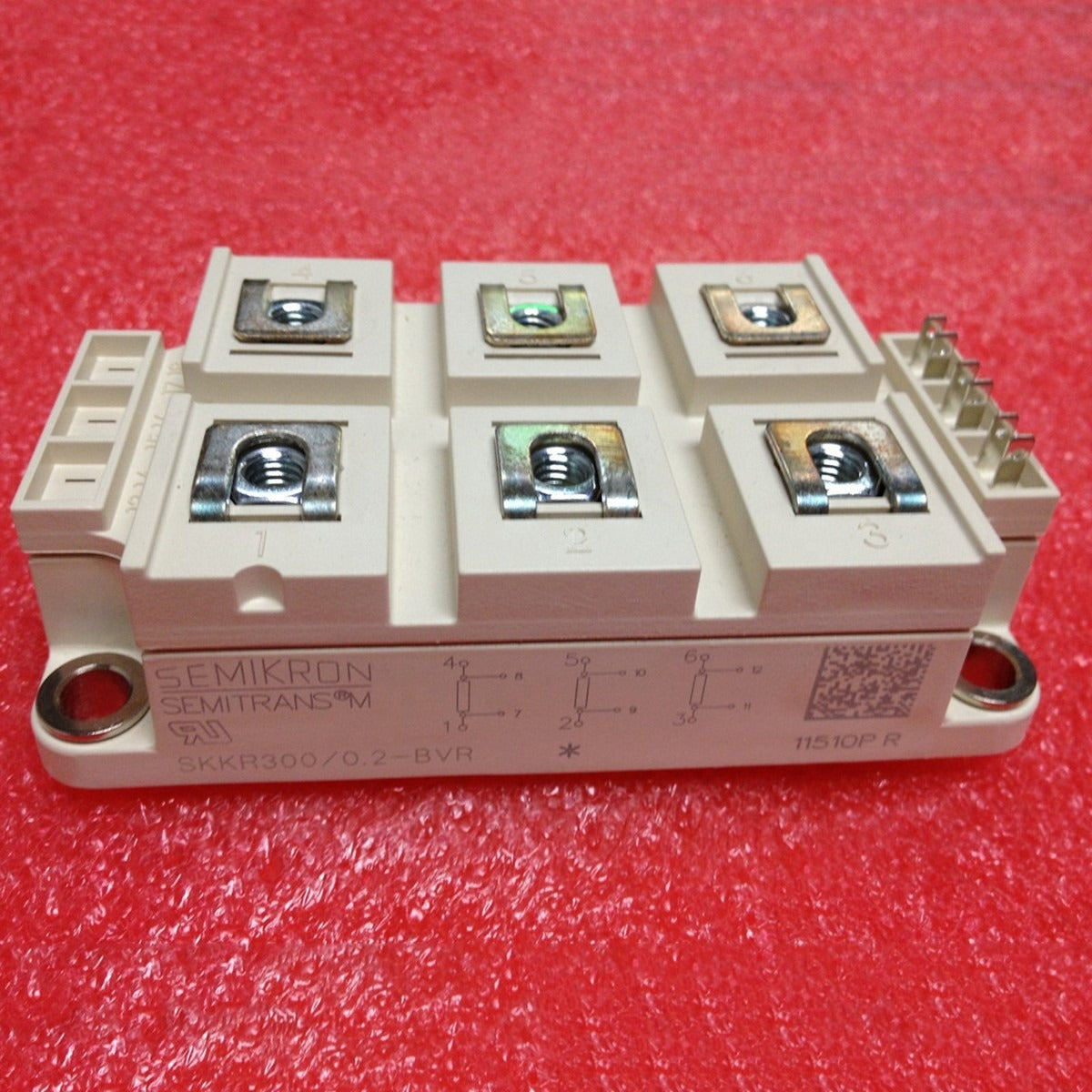

Encased in a D97 module with an isolated copper baseplate using Direct Copper Bonding (DCB) technology, the SKKR300/0.2-BVR is designed for straightforward integration into existing systems. Typical applications include industrial power supplies, motor drives, uninterruptible power supplies (UPS), renewable energy systems, and electric vehicle charging stations.
Key Specifications
| Specification | Value |
|---|---|
| Shunt Resistance (Rshunt) | 0.71 mΩ |
| Tolerance | ±5% |
| Continuous Current Rating | 300 A |
| Peak Current (IDCmax) | 525 A |
| Maximum Power Dissipation | 27 W |
| Operating Temperature Range | -40°C to +125°C |
| Inductance (Lshunt) | 0.2 µH |
| Thermal Resistance (Rth(j-c)) | 7.0 K/W |
| Weight | 420 g |
| Case Type | SEMITRANS 5 Series (D97) |
For detailed technical information, refer to the SEMIKRON SKKR300/0.2-BVR datasheet.
