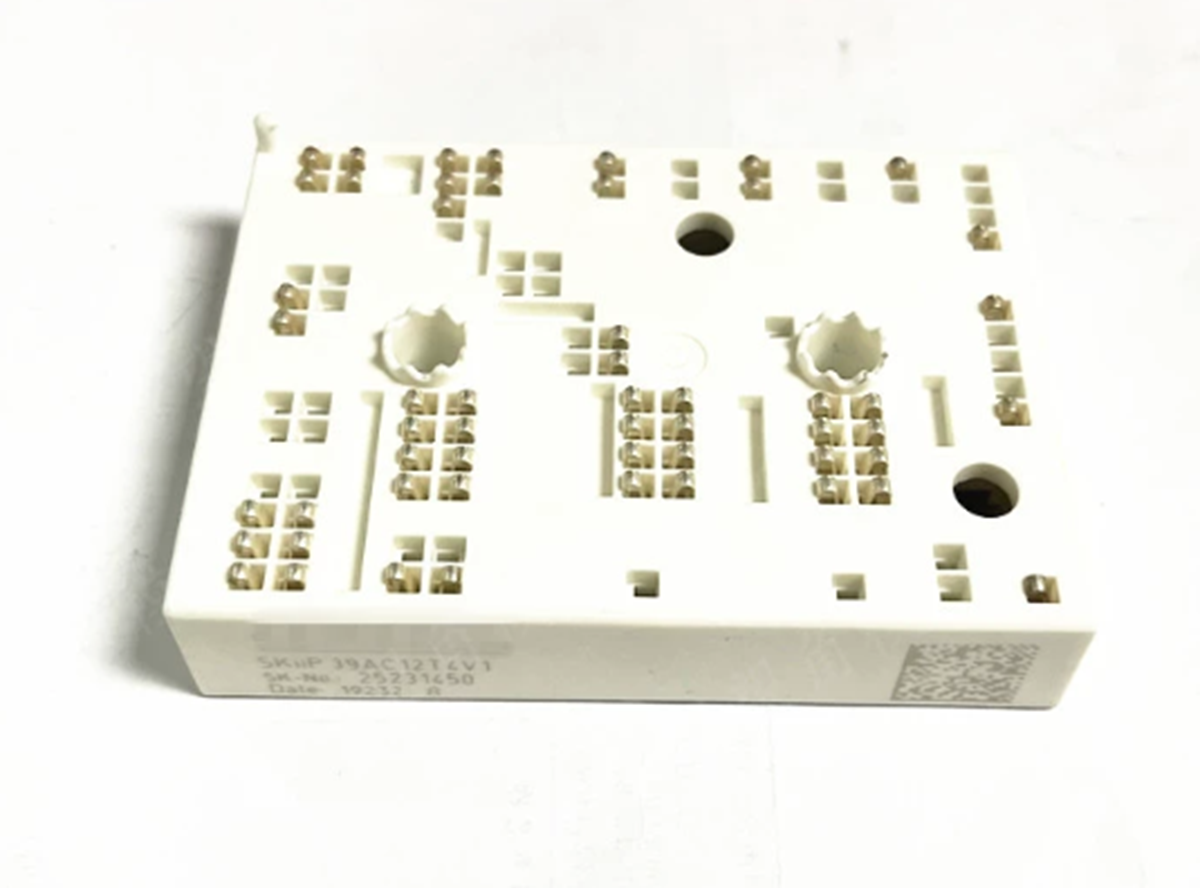

SEMIKRON SKiiP39AC12T4V1 IGBT Module
The SEMIKRON SKiiP39AC12T4V1 is a high-performance IGBT module designed to meet the demanding requirements of industrial power electronics. Utilizing advanced Trench 4 IGBT technology, it offers improved switching performance and reduced conduction losses, making it ideal for applications such as inverters, motor drives, and renewable energy systems. The module's integrated gate driver circuit simplifies system design and reduces component count, while its robust and soft-switching freewheeling diodes enhance overall system efficiency and reliability.
This module is housed in the MiniSKiiP® 3 package, which is compact and designed for press-fit mounting, ensuring ease of integration into various systems. With a maximum off-state voltage of 1200 V and a collector current rating of 150 A, the SKiiP39AC12T4V1 is well-suited for inverter applications up to 50 kVA and typical motor powers around 30 kW. Its operating temperature range from -40°C to +150°C ensures reliable performance in harsh industrial environments.
The SKiiP39AC12T4V1 is UL recognized under file number E63532, ensuring compliance with international safety standards. Its durability and efficiency make it a preferred choice for industrial and commercial applications, providing a reliable and cost-effective solution for power electronic systems.
Key Specifications
| Specification | Value |
|---|---|
| Topology | 3-phase bridge inverter |
| Max. Off-State Voltage (VCE) | 1200 V |
| Collector Current (IC) | 150 A |
| Pulsed Collector Current | 450 A |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Case Temperature (TC) | 125°C (max) |
| Operating Junction Temp. (Tj) | -40°C to +150°C |
| Package Type | MiniSKiiP® 3 |
| Module Type | Sixpack |
| Mounting Type | Press-Fit |
| Typical Motor Power | 30 kW |
| Inverter Power Rating | Up to 50 kVA |
For more detailed information, please refer to the SEMIKRON datasheet
