SEMIKRON SKIIP26AC126V1 1200V, 66A IGBT Power Module

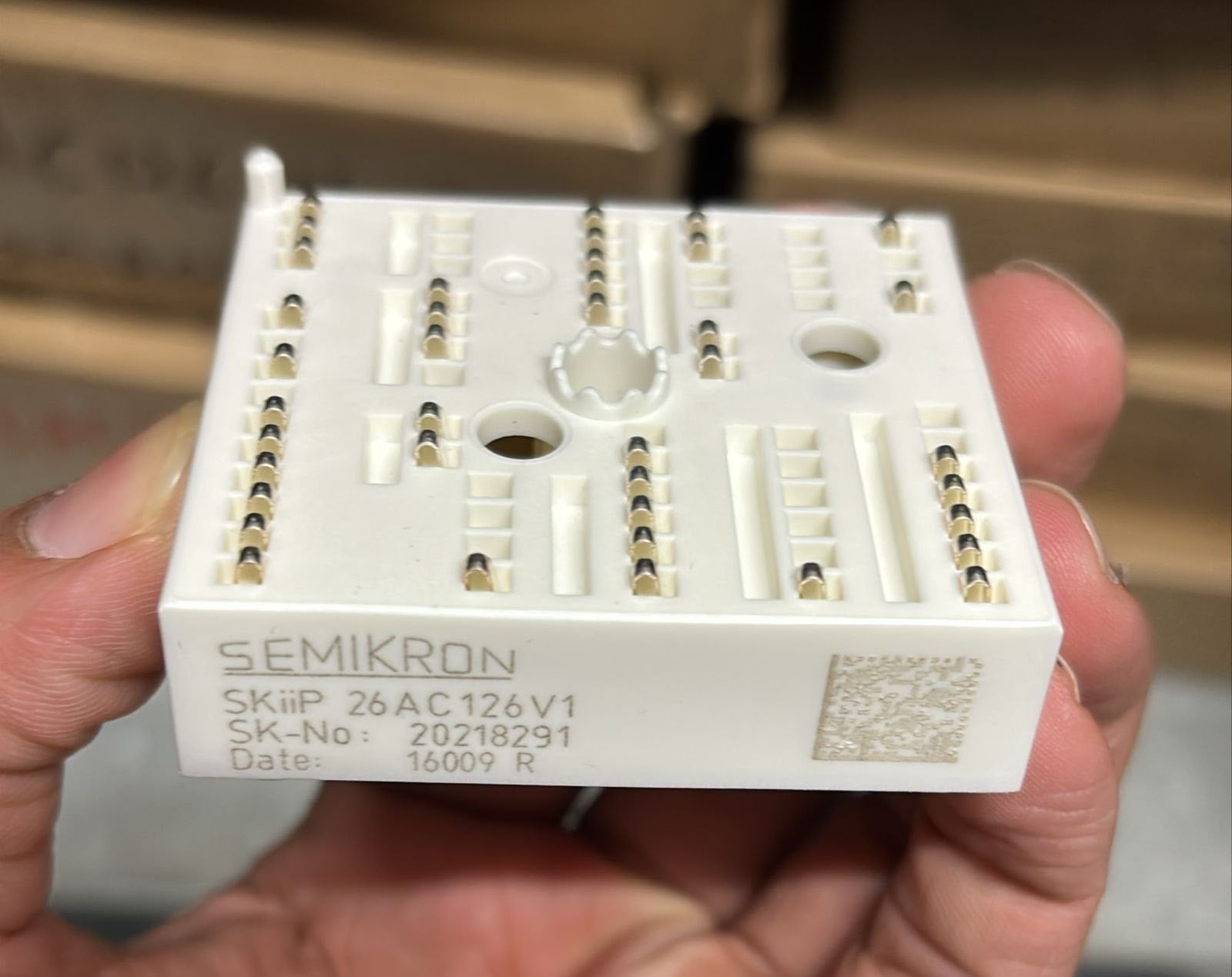

SEMIKRON SKIIP26AC126V1 Power Module
The SEMIKRON SKIIP26AC126V1 is a robust IGBT (Insulated Gate Bipolar Transistor) power module designed to deliver exceptional performance and reliability in demanding power electronics applications. With its advanced features and durable construction, this module is ideal for use in industrial and commercial settings where efficiency and longevity are paramount.
The SKIIP26AC126V1 features a 3-phase bridge inverter topology, ensuring efficient power conversion and minimal energy loss. Built with high-quality materials and designed to withstand harsh industrial environments, this module offers long-term reliability. Its MiniSKiiP® 2 package allows for space-saving integration into various systems.
The SKIIP26AC126V1 is commonly used in applications such as Uninterruptible Power Supplies (UPS), inverters, photovoltaic systems, and motor drives. These applications benefit from the module's high efficiency, durability, and versatility, making it a preferred choice for professionals in the field.
Key Specifications
| Specification | Value |
|---|---|
| Topology | 3-phase bridge inverter |
| Max. Off-State Voltage | 1200 V |
| Collector Current (IC) | 66 A |
| Pulsed Collector Current (IC) | 140 A |
| Power Rating | 18.5 kW |
| Gate-Emitter Voltage | ±20 V |
| Package Type | MiniSKiiP® 2 |
| Weight | 103.8 g |
| Mounting Type | Press-Fit |
| Mechanical Mounting | Screw |
For more detailed information, please refer to the SEMIKRON datasheet.
