Semikron SKIIP25AC126V1
Regular price
Rs.0.00

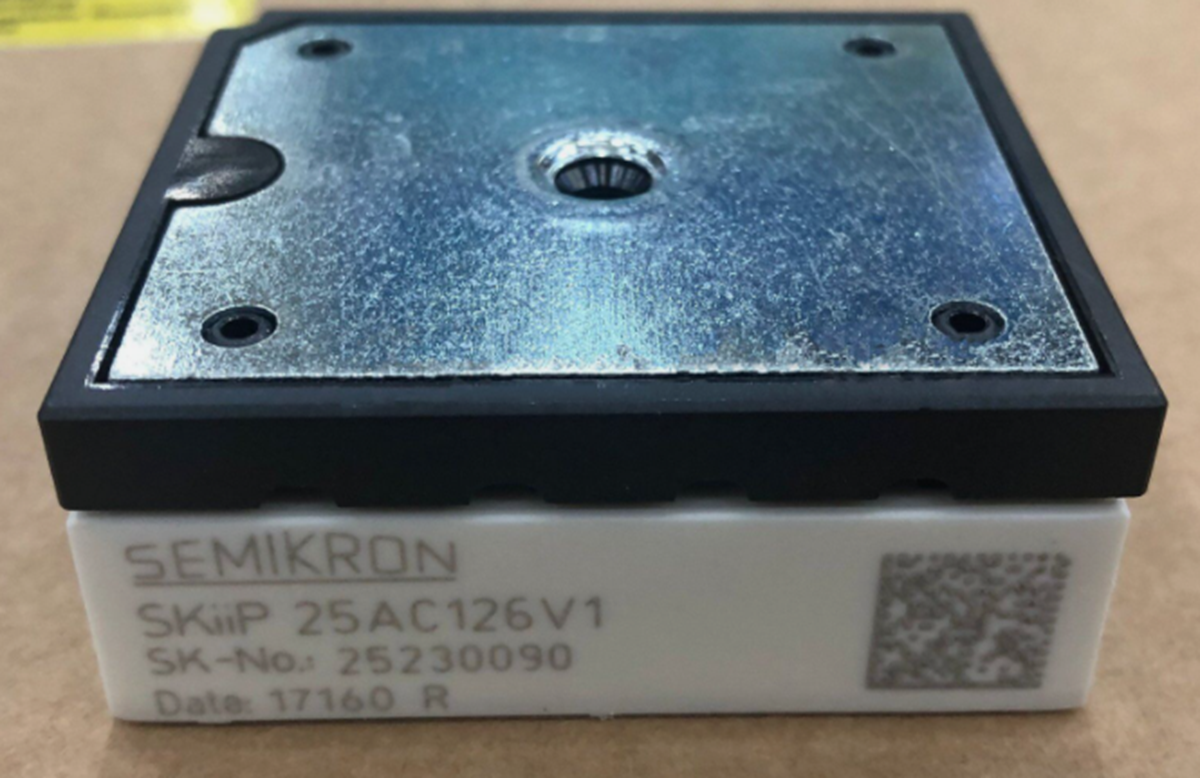

Semikron SKIIP25AC126V1 IGBT Power Module
The Semikron SKIIP25AC126V1 is a robust and efficient IGBT (Insulated Gate Bipolar Transistor) power module designed to meet the demanding requirements of industrial and commercial power electronics applications. With its advanced technology and compact design, it offers superior performance, reliability, and versatility, making it an ideal choice for various power conversion systems.
The SKIIP25AC126V1 utilizes Fast Trench IGBT technology, ensuring low conduction and switching losses, which translates to improved system efficiency and reduced energy consumption. Equipped with robust and soft freewheeling diodes in CAL technology, this module provides enhanced durability and reliability, even under harsh operating conditions. Housed in a MiniSKiiP® II 2 package with dimensions of 59 x 52 x 16 mm, it offers a compact footprint suitable for space-constrained applications. With a collector current rating of 50 A and a pulsed collector current capability of 100 A, the SKIIP25AC126V1 can handle substantial power loads, making it suitable for high-power applications. This module is ideal for use in inverters up to 28 kVA and is commonly employed in motor drives, uninterruptible power supplies (UPS), photovoltaic systems, and industrial power supplies.
The SKIIP25AC126V1 provides efficient and reliable power conversion for motor drives, ensures continuous power supply with minimal downtime in UPS systems, facilitates efficient energy conversion in solar power applications, and offers robust performance for industrial power distribution systems. Its combination of efficiency, durability, and versatility makes it suitable for both industrial and commercial use, supporting a wide range of high-power applications.
Key Specifications
| Feature | Specification |
|---|---|
| Chip Technology | IGBT 3 (Trench) |
| Collector Current | 50 A |
| Pulsed Collector Current | 100 A |
| Max. Off-State Voltage | 1.2 kV |
| Power Rating | 15 kW |
| Package Type | MiniSKiiP® II 2 |
| Dimensions (LxWxH) | 59 x 52 x 16 mm |
| Gate-Emitter Voltage | ±20 V |
| Mounting Type | Press-Fit Electrical, Screw Mechanical |
| Typical Applications | Inverter up to 28 kVA, Motor Power 15 kW |
For more detailed information, please refer to the Semikron SKIIP25AC126V1 datasheet.
