SEMIKRON SKiiP 23NAB126V1 1200V IGBT Module
Regular price
Rs.0.00

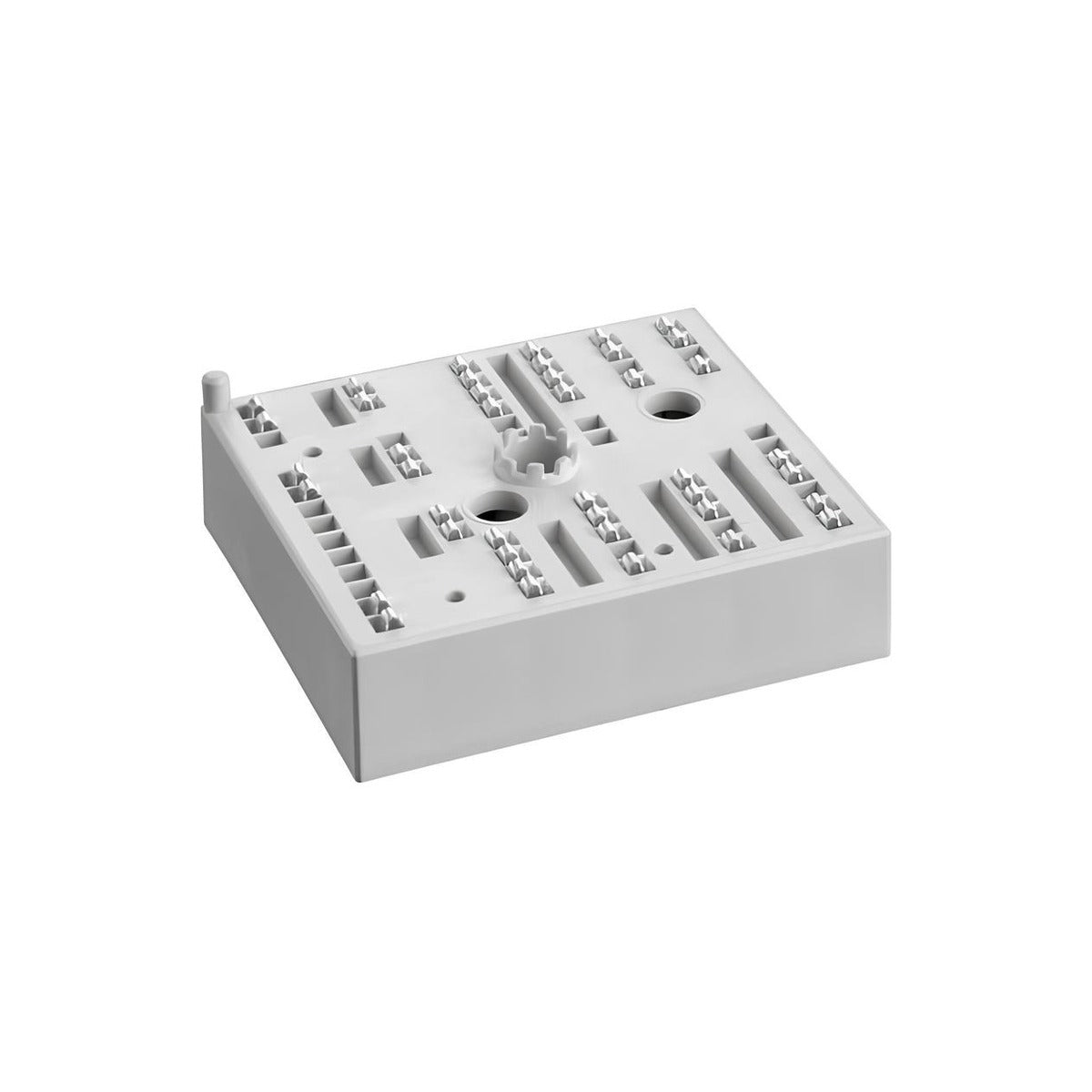

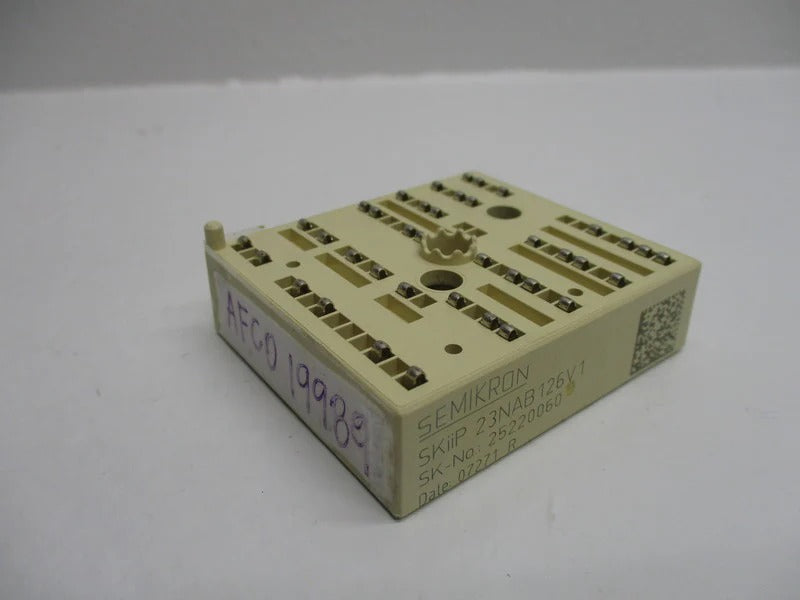

SKiiP 23NAB126V1 – MiniSKiiP® IGBT Module
The SKiiP 23NAB126V1 is a MiniSKiiP® IGBT power module from SEMIKRON Danfoss designed for use in power electronic systems such as three-phase inverters, UPS equipment, photovoltaic inverters, and motor drives. It has a blocking voltage rating of 1200 V and supports stable current handling for medium-power applications. Its compact MiniSKiiP® housing allows efficient thermal performance in limited space.
This module integrates Trench IGBT technology with CAL freewheeling diodes, enabling low switching losses and reliable performance. It combines a three-phase rectifier, inverter bridge, and brake chopper in a single package, reducing system complexity. The use of press-fit and spring contact technology provides secure electrical connections and eliminates the need for soldering.
The SKiiP 23NAB126V1 is applied in inverter systems within the 7.5 kW to 16 kVA power range, UPS units, and industrial drive systems. Its design supports consistent operation and straightforward assembly. For detailed characteristics, the datasheet provides complete specifications.
Key Specs
| Specification | Value |
|---|---|
| Part Number | SKiiP 23NAB126V1 (MiniSKiiP® II) |
| Blocking Voltage | 1200 V |
| Nominal Collector Current | ~25–31 A (depending on conditions) |
| Typical Inverter Power Class | ~7.5 kW to 16 kVA |
| Chip Technology | Trench IGBT with CAL diodes |
| Gate-Emitter Voltage | ±20 V |
| Features | Integrated rectifier, inverter bridge, brake chopper, optional snubber, short-circuit detection |
| Electrical Connection | Press-fit / spring contacts |
| Case Dimensions (L×W×H) | Approx. 59 × 52 × 16 mm |
| Certifications | UL Recognized (variant dependent) |
For more detailed information, please refer to the SEMIKRON Danfoss datasheet.
