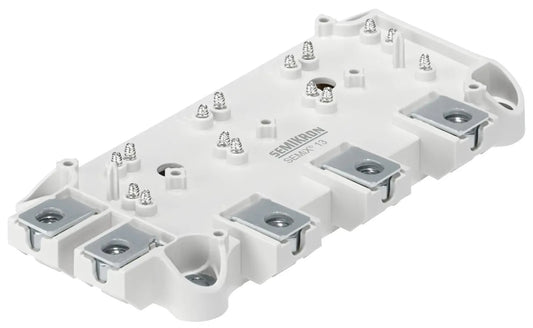

SEMiX341D16S IGBT Power Module
The SEMiX341D16S by SEMIKRON is a three-phase bridge rectifier module designed for reliable performance in industrial environments. With a maximum repetitive reverse voltage of 1.6 kV and an average forward current of 348 A, this module supports efficient power conversion for applications such as AC/DC motor control and power supply systems.
The module features chips soldered directly to an isolated substrate, ensuring stable thermal management and mechanical reliability. Its compact design, with a terminal height of 17 mm, allows straightforward integration into various systems. The module also holds UL recognition (File No. E63532), confirming compliance with international safety standards.
With high power density, low forward voltage drop, and stable thermal performance, the SEMiX341D16S provides long-term operational reliability in industrial and commercial applications. Its design supports continuous operation under rated conditions, making it suitable for motor drives, UPS, and other power electronics systems.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Repetitive Reverse Voltage (V_RRM) | 1.6 kV |
| Average Forward Current (I_FAV) | 348 A |
| Maximum Forward Impulse Current (I_FSM) | 2.5 kA |
| Forward Voltage Drop (V_F) at I_F = 400 A | 1.75 V |
| Thermal Resistance (R_th(j-c)) | 0.22 K/W |
| Terminal Height | 17 mm |
| Package Type | SEMiX® 13 |
| Mounting Type | Screw |
| Weight | 302.33 g |
| Operating Temperature Range | -40 to +130 °C |
| Isolation Voltage | 4 kV (1 minute) |
For more detailed information, please refer to the SEMIKRON SEMiX341D16S datasheet.
