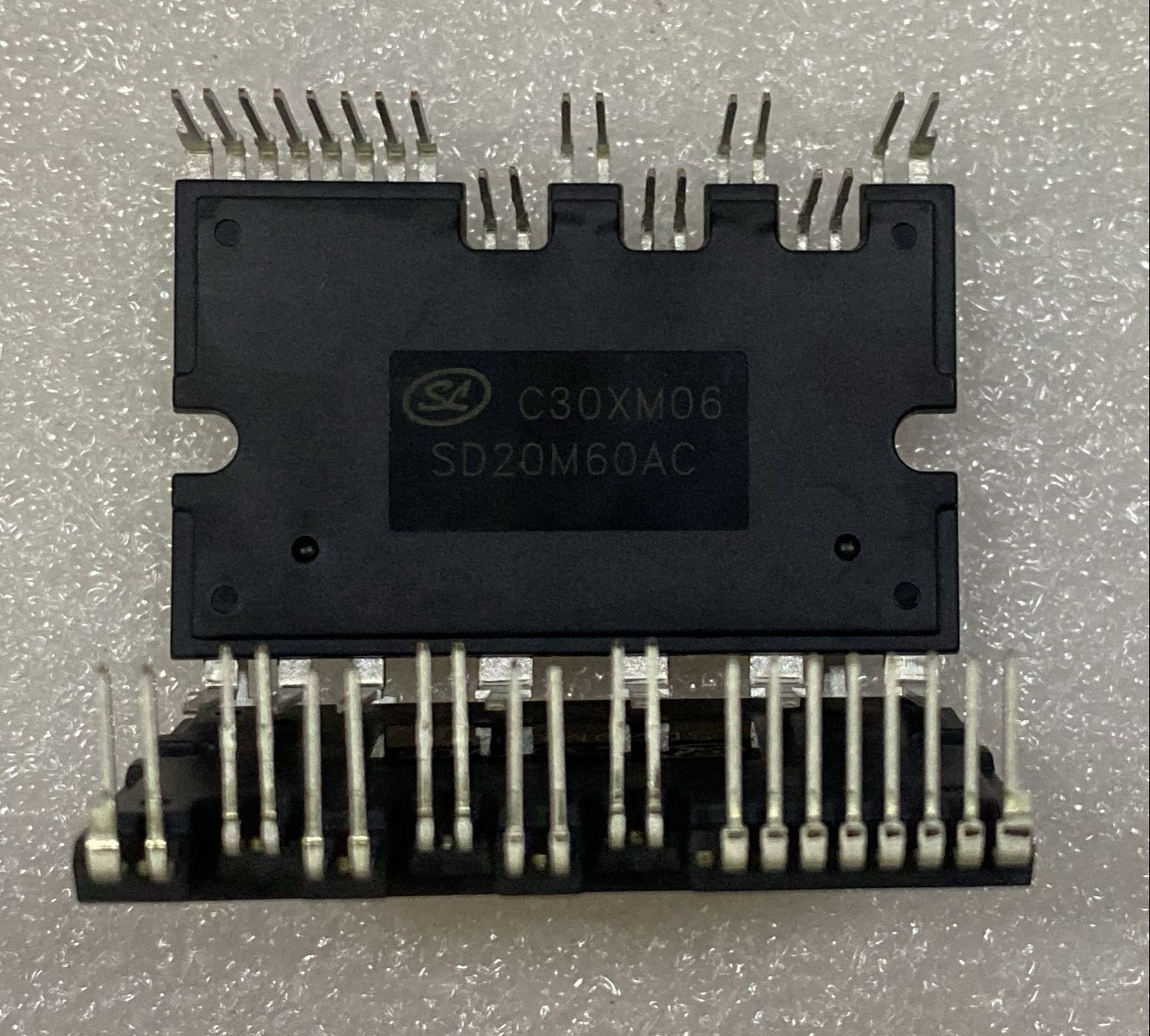

SD20M60A — 600V, 20A Intelligent Power Module

The SD20M60A (also referenced as SD20M60AC) is a highly efficient three-phase Intelligent Power Module (IPM) developed by Hangzhou Silan Microelectronics. Engineered with integrated low-loss IGBTs, freewheeling diodes, and a built-in driver circuit, it provides reliable motor control for compact inverter systems. Its DIP-27 package design ensures space-saving integration, making it a strong choice for consumer appliances, commercial equipment, and light industrial applications.

With a 600V collector-emitter voltage rating and 20A continuous current capability, the SD20M60A delivers stable power conversion for demanding environments. The module’s optimized switching technology minimizes conduction and switching losses, reducing heat generation while improving energy efficiency. Combined with extended operating temperature support, it provides long-term durability in both residential and industrial motor-drive solutions.

The SD20M60A is widely used in air conditioners, washing machines, dishwashers, fans, and low-power inverters, where compactness and high reliability are critical. By integrating control and protection features within a single package, it reduces external components, simplifies PCB layout, and ensures dependable system performance. For engineers and manufacturers, this module is an excellent balance between performance, cost-efficiency, and long-term reliability.

Key Specs

For complete details, please refer to the official Silan Microelectronics SD20M60AC datasheet.
