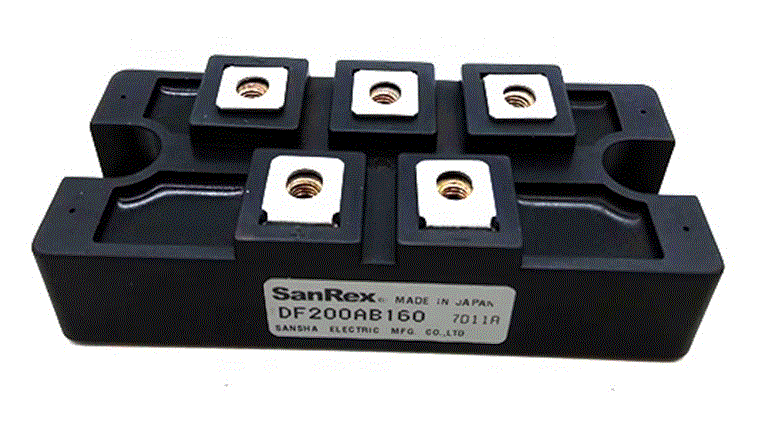

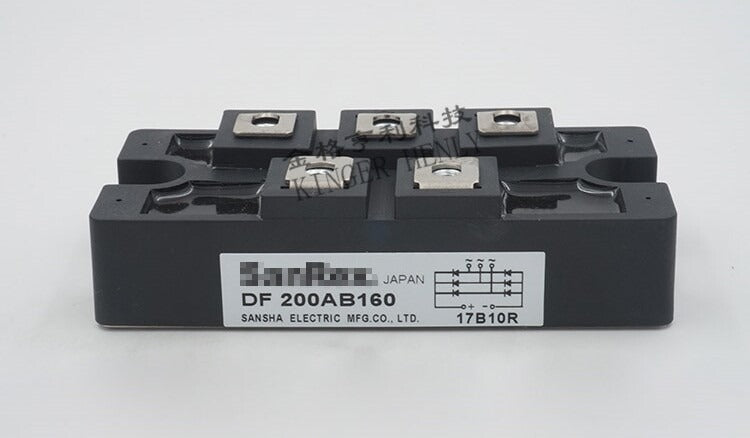

SanRex DF200AB160 3 Phase Bridge Diode Module
Regular price
Rs.0.00
DF200AB160
The SanRex DF200AB160 is a robust and efficient 3-phase bridge diode module engineered to meet the demanding requirements of industrial and commercial power electronics. Designed for high-current rectification, this module delivers a continuous output current of 200A, making it ideal for applications such as AC/DC motor drives, welding machines, and power supplies. Its high reverse voltage rating of 1.6 kV ensures reliable performance in systems with substantial voltage demands.
Built with a focus on durability and thermal efficiency, the DF200AB160 features a forward voltage drop of just 1.2 V at 200 A, minimizing energy losses and enhancing overall system efficiency. The module operates effectively within a wide temperature range of -40°C to +150°C, ensuring stable performance even under harsh environmental conditions. Its chassis-mount design and isolated package facilitate straightforward integration into various industrial setups, providing both mechanical stability and electrical isolation.
Incorporating advanced glass passivation technology, the DF200AB160 offers high reliability and longevity, reducing the need for frequent maintenance and downtime. This makes it a cost-effective solution for long-term industrial applications. For detailed technical specifications and application guidelines, please refer to the official SanRex datasheet: All Datasheet.
Key Specifications
| Feature | Specification |
|---|---|
| Type | 3-Phase Bridge Diode |
| Reverse Voltage (VRRM) | 1600 V |
| Forward Voltage (Vf) | 1.2 V @ 200 A |
| Average Output Current (Io) | 200 A |
| Reverse Leakage Current (IRRM) | 20 mA @ 1600 V, 150°C |
| Operating Temperature Range | -40°C to +150°C |
| Thermal Resistance (Rthj-c) | 0.1°C/W |
| Mounting Style | Chassis Mount |
| Package Type | Isolated |
| Compliance | RoHS |
For more detailed information, please refer to the SanRex datasheet
