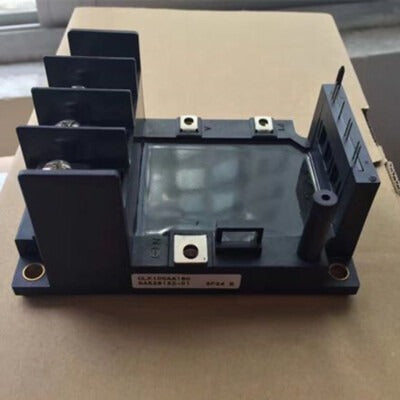

CLK100AA160
The CLK100AA160 is a power integrated module (PIM) designed for industrial applications requiring efficient and reliable power conversion. Manufactured by SanRex, this module combines a three-phase input rectifier, a three-phase inverter, and a brake chopper into a single package, simplifying system design and enhancing overall reliability. With a collector-emitter voltage rating of 1200V and a continuous collector current of 100A at a case temperature of 80°C, it is suitable for various applications such as variable frequency drives and motor control systems.
Utilizing Trench Fieldstop IGBT technology, the CLK100AA160 minimizes conduction and switching losses, leading to improved system efficiency and reduced thermal stress. The integration of CAL (Controlled Axial Lifetime) free-wheeling diodes ensures soft switching characteristics, which help in reducing electromagnetic interference (EMI) and simplifying snubber circuit design. These features contribute to the module's suitability for applications where space and performance are critical.
Designed for industrial environments, the CLK100AA160 offers durability and reliability. Its compact design reduces the need for extensive wiring and assembly, leading to cost savings and simplified maintenance. The module's high efficiency and robust construction make it an ideal choice for applications in automation, renewable energy systems, and industrial machinery, where performance and longevity are essential.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | SanRex |
| Module Type | Power Integrated Module (PIM) |
| Configuration | Sixpack Inverter + Brake Chopper + Six-Pulse Rectifier |
| Collector-Emitter Voltage (V<sub>CES</sub>) | 1200V |
| Continuous Collector Current (I<sub>C</sub>) | 100A @ T<sub>case</sub> = 80°C |
| Inverter VCE(sat) (typ.) | 1.9V @ I<sub>C</sub> = 100A, T<sub>j</sub> = 125°C |
| Diode Forward Voltage (V<sub>F</sub>) (typ.) | 1.8V @ I<sub>F</sub> = 100A, T<sub>j</sub> = 125°C |
| Technology | Trench Fieldstop IGBT, CAL Free-Wheeling Diodes |
| Integrated Features | NTC Temperature Sensor |
| Applications | Variable Frequency Drives, Motor Control, Power Conversion Systems |
For more detailed information, please refer to the SanRex datasheet.
