S12-PCS-24V Shori Relay

S12-PCS‑24V Shori Relay (S12-PCS-24)

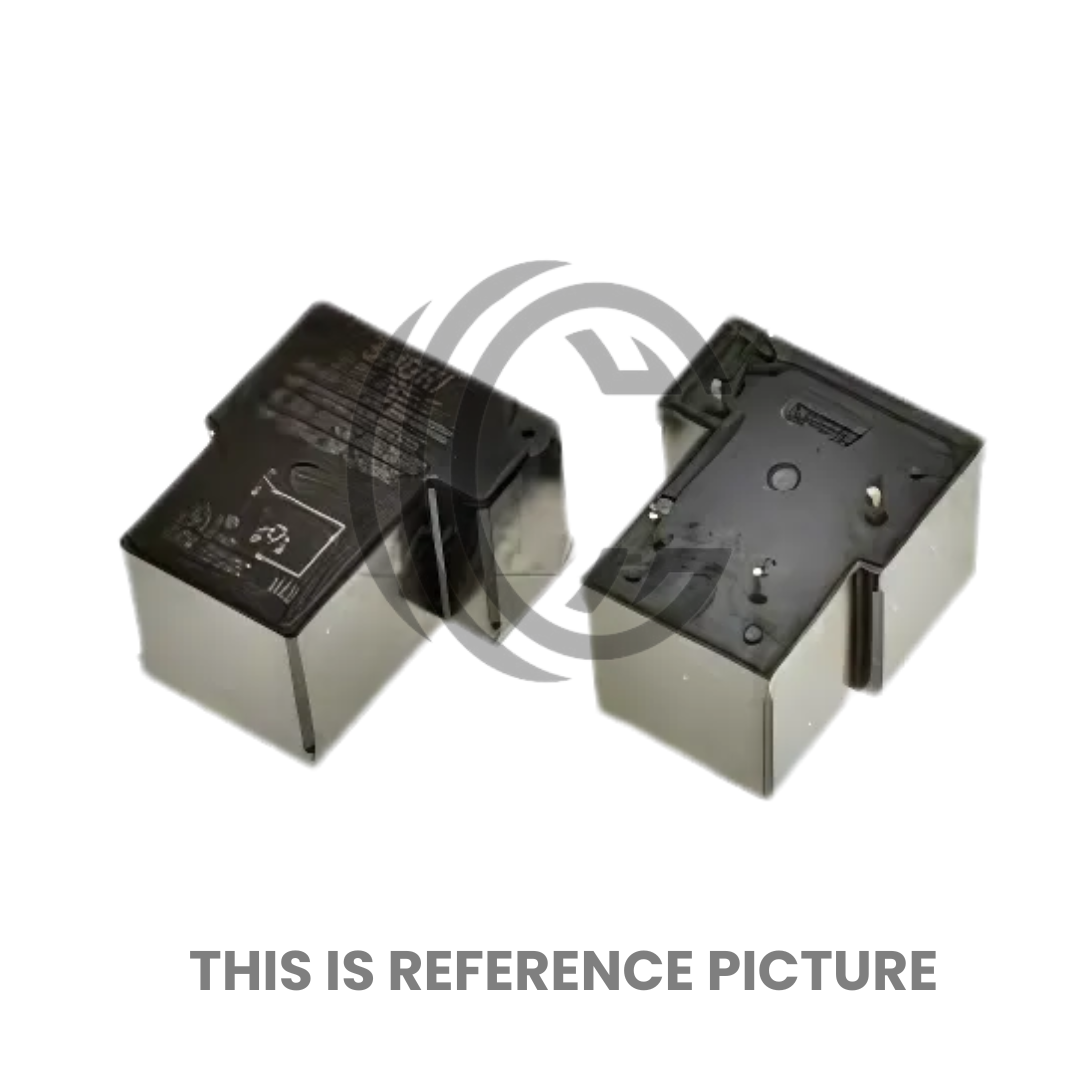

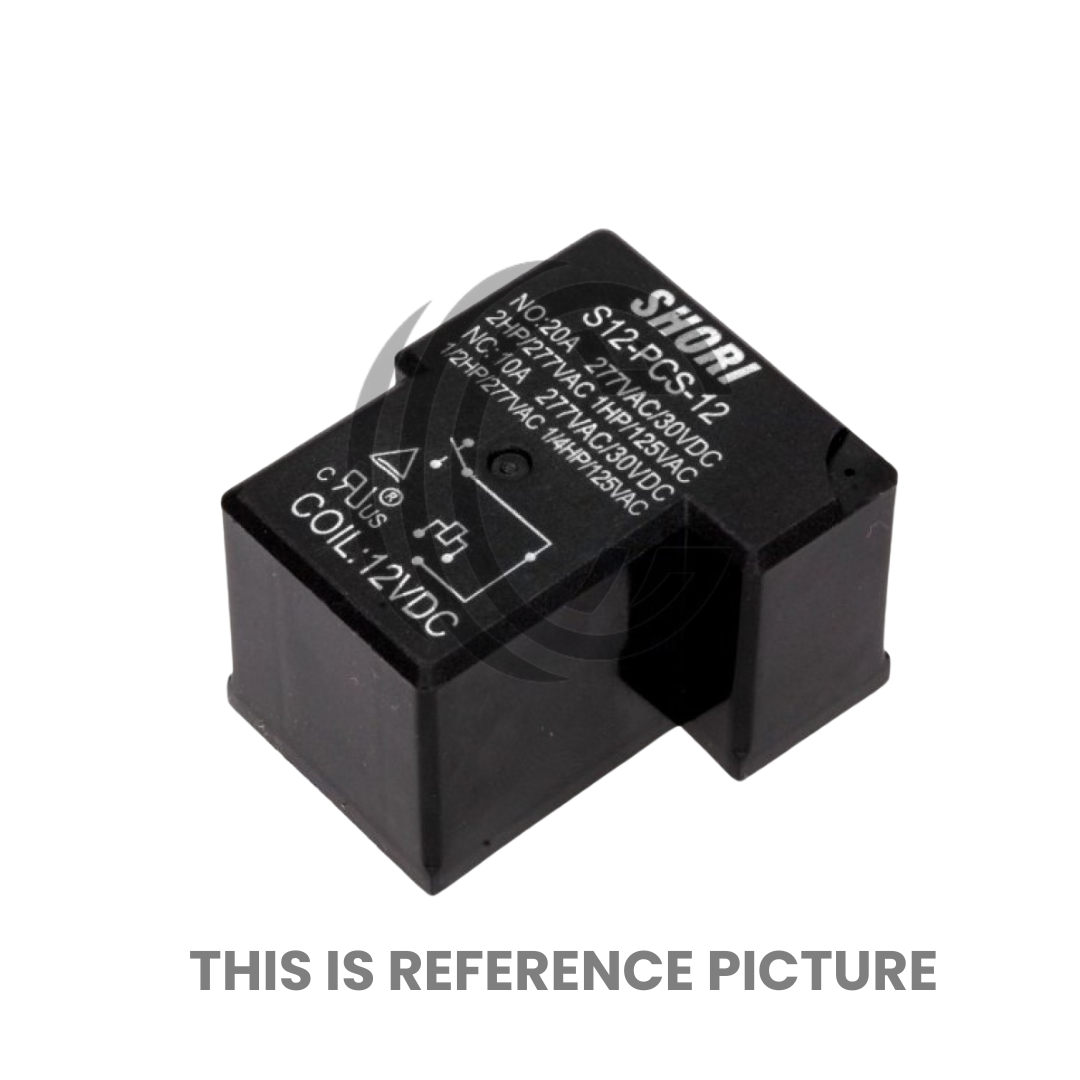

The S12‑PCS‑24V Shori Relay is a power-grade electromagnetic relay offering reliable SPDT switching in industrial and consumer applications. Operating from a 24 V DC coil and capable of switching up to 20 A (DC or AC), this relay is well-suited for control systems, HVAC modules, UPS units, and lighting drivers. Its compact PCB-mount footprint (approx. 19.5 × 26.8 × 31.9 mm) makes it ideal for dense layouts while maintaining robust electrical performance.

Inside, the coated silver-alloy contacts and 50 mΩ max contact resistance deliver low-loss conduction at high loads, supported by a fast operating time (~15 ms) and release time (~10 ms) for responsive switching. The relay is built for endurance—with up to 10 million mechanical cycles and 10,000 electrical switching cycles—making it a dependable choice in repeated-use scenarios.

Rated for temperatures from –30 °C to +85 °C and drawing just 36 mA coil current (~0.93 W), the S12‑PCS‑24V keeps power consumption modest while maintaining shock and vibration tolerance for harsh environments. Certifications from UL, CSA, and VDE ensure compliance with global safety standards.

Key Specs

Rated Coil Voltage: 24 V DC Contact Configuration: SPDT (Single-Pole Double-Throw) Contact Current: Up to 20 A (AC/DC) Coil Current / Power: ~36 mA / 0.93 W Contact Resistance: ≤ 50 mΩ Operate Time: ~15 ms Release Time: ~10 ms Mechanical Life: 10,000,000 cycles Electrical Life: 10,000 cycles Dimensions: ~19.5 × 26.8 × 31.9 mm (PCB mount) Operating Temperature: –30 °C to +85 °C Certifications: UL, CSA, VDE; RoHS compliant
