RS1J 600V 1A SMD Diode
Regular price
Rs.20.00
Sale price
Rs.30.00
RS1J

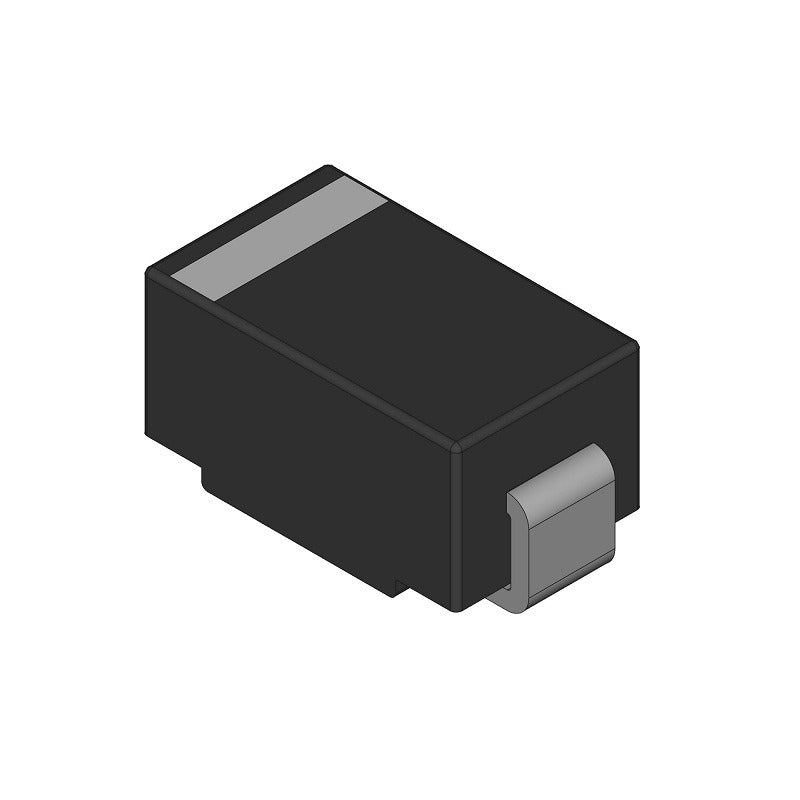

The RS1J Fast Recovery Diode is a rectifier diode rated for 600 V reverse voltage and 1 A forward current, designed for high-speed switching circuits in inverters, switch‑mode power supplies, motor drives, AC/DC converters, automotive electronics, and communication power modules. Its compact SMA (DO‑214AC) surface‑mount package allows integration into high-density PCB layouts for industrial and commercial electronics.
The diode features a glass‑passivated junction and a low-profile plastic package for thermal stability. Its fast recovery time (typically 250 ns) reduces switching losses, while a low forward voltage drop (approx. 1.3 V at 1 A) and low reverse leakage current support consistent operation in high-frequency circuits.
RS1J supports surge currents up to 30 A and operates across a temperature range of –55 °C to +150 °C. It is suitable for applications such as free‑wheeling diodes, snubber networks, and automotive power modules. The surface-mount format is compatible with automated assembly processes.
Key Specs
| Parameter | Specification |
|---|---|
| Peak Repetitive Reverse Voltage (Vₙᵣₘ) | 600 V |
| Average Forward Current (I_F(AV)) | 1.0 A |
| Forward Voltage Drop (V_F) @ 1 A | ≈ 1.3 V |
| Reverse Recovery Time (t_rr) | 250 ns (typical) |
| Peak Forward Surge Current (I_FSM) | 30 A |
| Maximum Reverse Leakage Current (I_R) | 5 µA @ 600 V |
| Package / Case Style | SMA (DO‑214AC) |
| Mounting Type | Surface Mount |
| Operating Junction Temperature | –55 °C to +150 °C |
| Typical Capacitance (C_T) | ~15 pF |
| Compliance | RoHS‑compliant, lead‑free |
