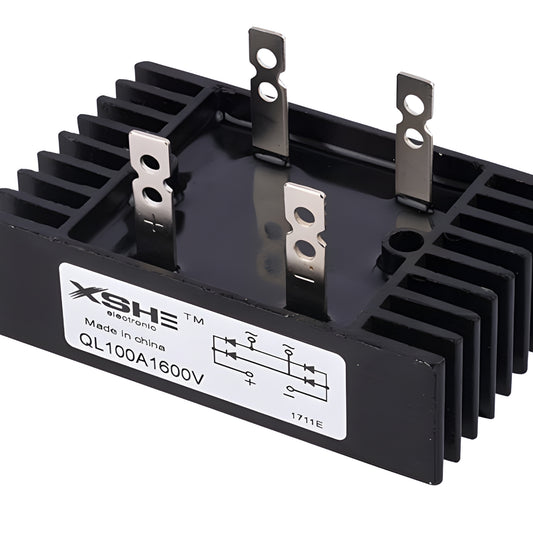

QL100A1600V 100A 1600V Bridge Rectifier
Regular price
Rs.3,500.00
Sale price
Rs.4,000.00
QL100A1600V

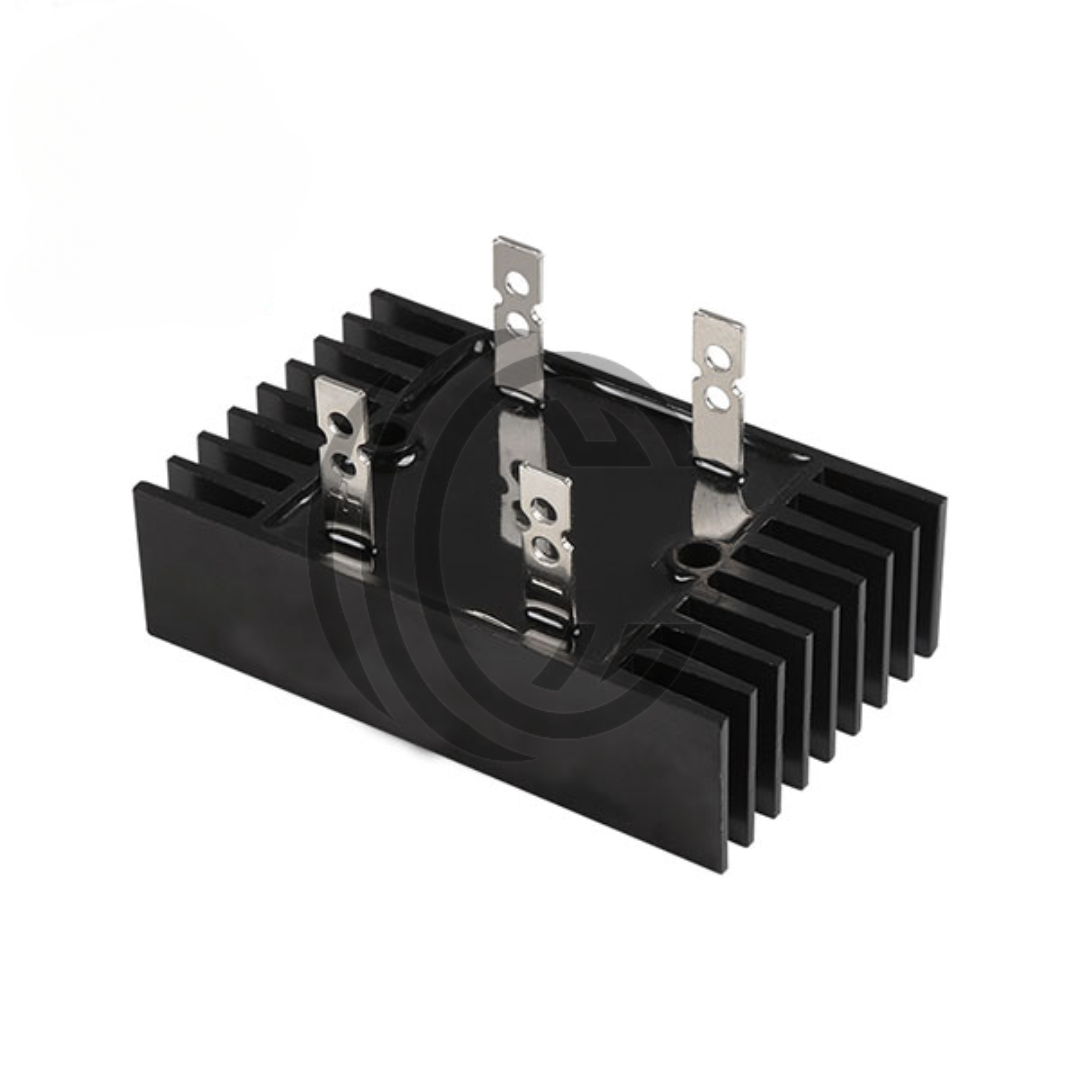

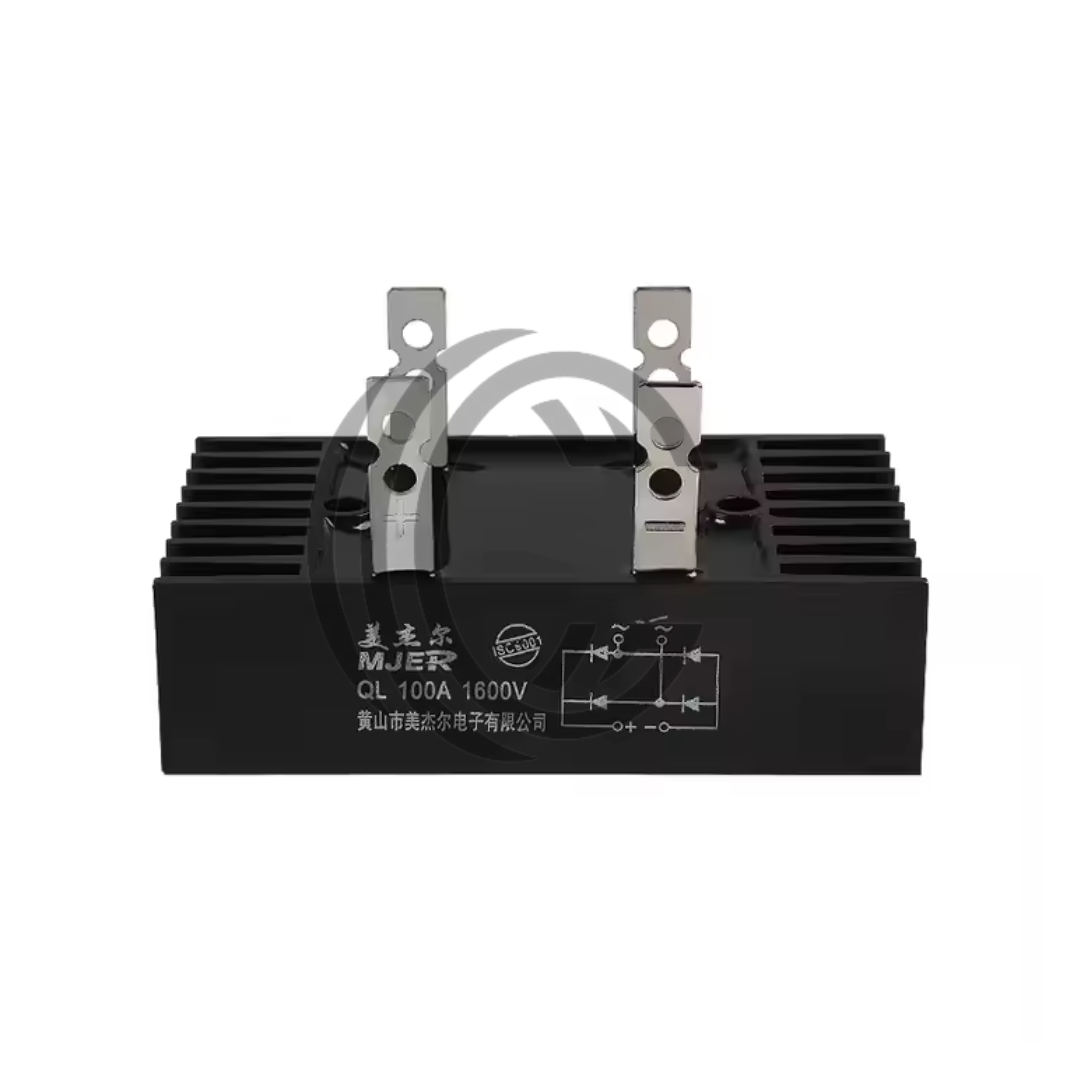

The QL100A1600V is a single‑phase bridge rectifier module designed for AC‑to‑DC conversion in industrial and commercial power systems. Housed in an aluminium heatsink case, it delivers up to 100 A continuous direct output current and withstands a repetitive peak reverse voltage of 1600 V — suitable for high-voltage rectification tasks including motor drives, UPS power supplies, battery chargers, CNC machines, and renewable-energy inverters.
The module features low forward voltage drop and efficient thermal dissipation thanks to its heatsink housing, which helps to limit on‑state losses and manage heat under continuous load. According to the manufacturer’s datasheet, the rectifier supports a non‑repetitive peak surge current (IFSM) of 1000 A (10 ms, half‑wave, single‑side heat dissipation) and offers isolation voltage (case to terminals) of 2500 V RMS, making it suitable for installations requiring electrical isolation and safety.
Given its electrical ratings and mechanical format (100 × 60 × 55 mm module, ≈ 230 g, M5 mounting), the QL100A1600V can be integrated into power‑supply assemblies, motor controllers, and DC power systems where robust AC/DC conversion is required. For exact installation guidance, thermal management, and detailed electrical characteristics, please refer to the official datasheet.

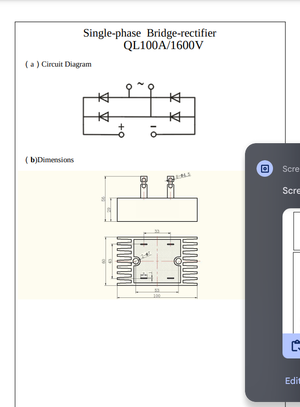

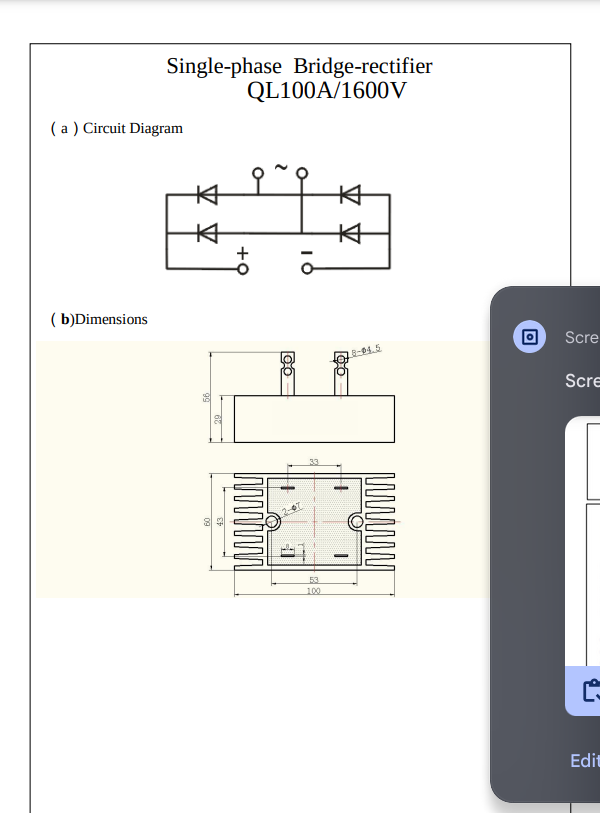

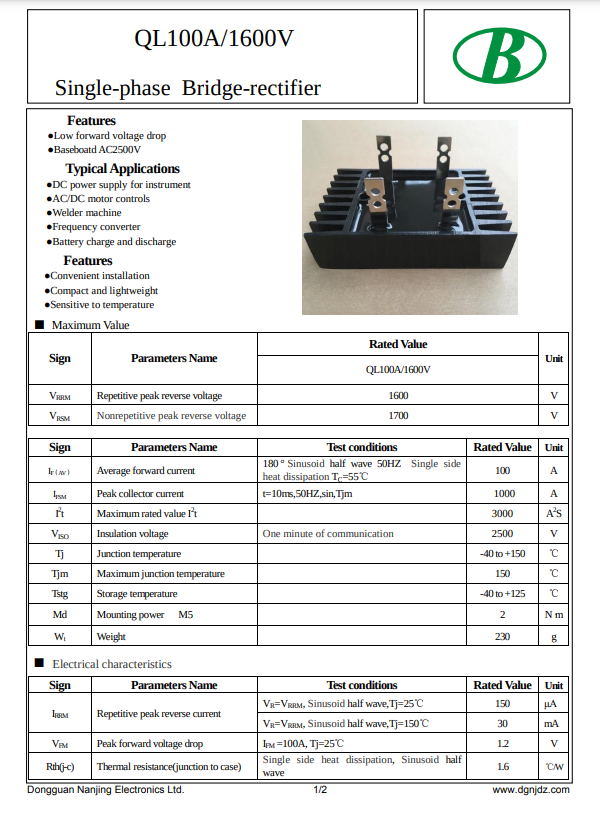

Key Specs — QL100A1600V
| Parameter | Value |
|---|---|
| Direct output current (Iₙ / I_D) | 100 A |
| Average forward current (I_F(AV)) | 100 A (180° half-wave, single‑side heat dissipation, T_case = 55 °C) |
| Repetitive peak reverse voltage (V_RRM) | 1600 V |
| Non‑repetitive surge forward current (I_FSM, 10 ms) | 1000 A |
| Isolation voltage (case to terminals, RMS) | 2500 V |
| Thermal resistance (junction to case) | 1.6 °C/W (single‑side heat dissipation) |
| Maximum junction temperature (T_j / T_jm) | –40 to +150 °C (junction), typically rated to 150 °C max. |
| Forward voltage drop (per diode, at 100 A, Tj = 25 °C) | ~1.2 V |
| Dimensions (L × W × H) | 100 × 60 × 55 mm |
| Weight | ~230 g (as specified in datasheet) |
| Package / Mounting | Aluminium heatsink module, through‑hole / chassis mount (M5) |
