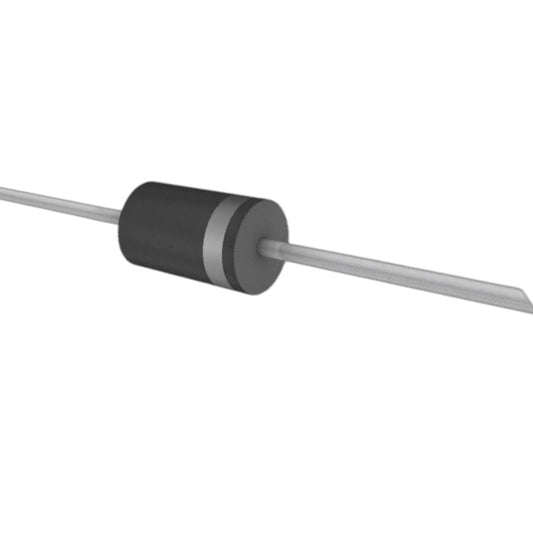

MUR490E 900V 4A Ultrafast Rectifier Diode
Regular price
Rs.35.00
Sale price
Rs.40.00
MUR490E

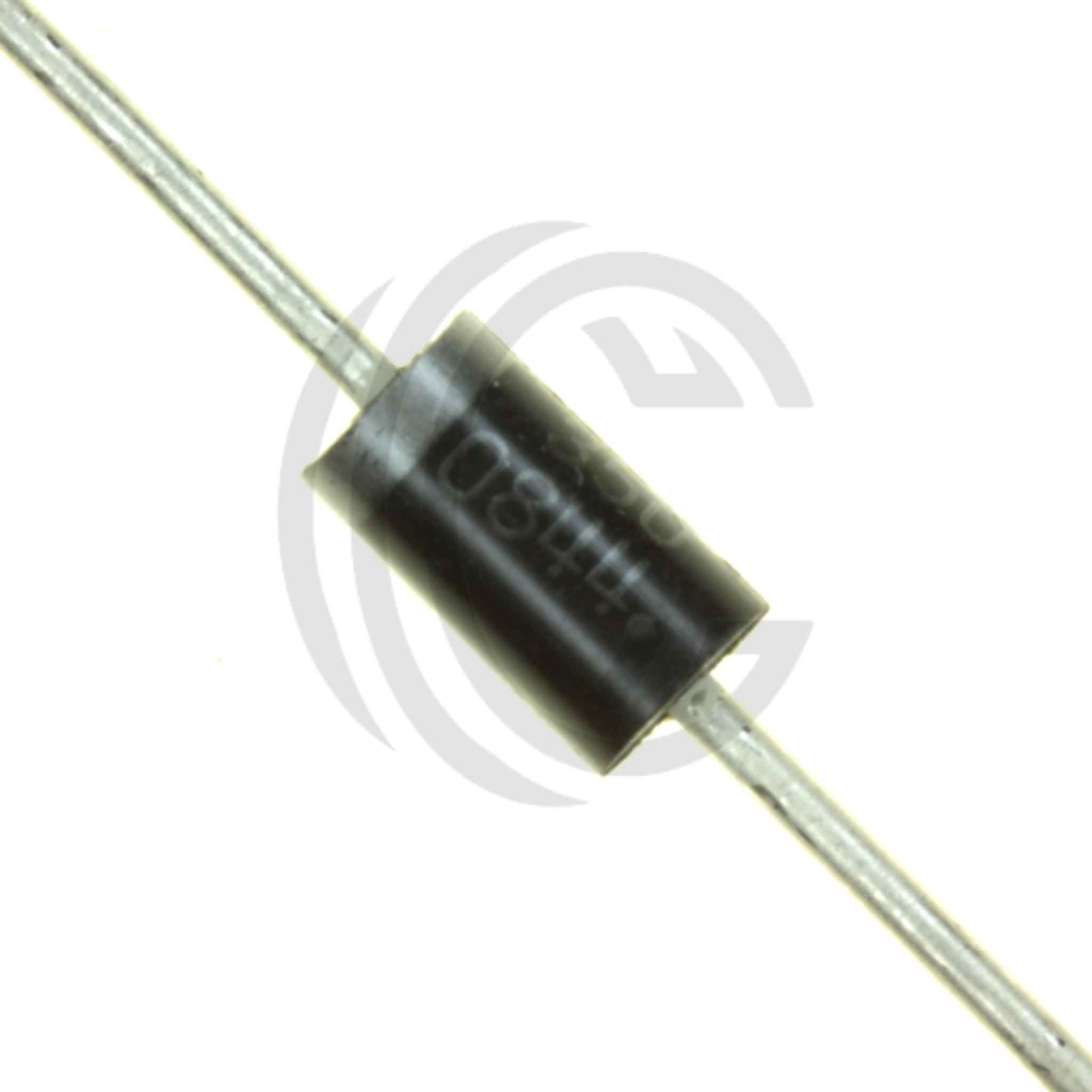

The MUR490E is a 900 V, 4 A ultrafast rectifier diode from ON Semiconductor, designed for high-speed switching in power electronics. It comes in a DO‑201AD package and is avalanche-rated, providing reliable performance in inverters, SMPS, motor drives, solar installations, welding equipment, and telecom power circuits.
The diode features a low forward-voltage drop of 1.85 V at 4 A, reducing conduction losses during operation. Its reverse recovery time of 75 ns supports efficient high-frequency switching. The device handles a controlled avalanche energy of 20 mJ and operates over a junction temperature range of –65 °C to +175 °C, making it suitable for demanding industrial environments.
The MUR490E supports automated assembly due to its through-hole package and meets RoHS and Pb-free standards. Its specifications allow use in solar inverters, SMPS, welding power supplies, and motor-drive systems where reliable rectification is required.
Key Specs
| Parameter | Specification |
|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 900 V |
| Average Forward Current (IF(AV)) | 4.0 A @ TA = 35 °C |
| Non-Repetitive Surge Current (IFSM) | 70 A (single half-wave surge) |
| Forward Voltage (Vf) | Max 1.85 V @ 4 A, 25 °C |
| Reverse Recovery Time (trr) | 75 ns (typical) |
| Reverse Leakage Current (IR) | 25 µA @ 900 V, 25 °C |
| Controlled Avalanche Energy (W_AVAL) | 20 mJ |
| Operating Junction Temperature (T_J) | –65 °C to +175 °C |
| Package / Case | DO‑201AD (through‑hole) |
| Diode Type | Ultrafast recovery rectifier |
