Modular Dual Barrier Terminal Blocks 2-Pin & 3-Pin

Modular Dual Barrier Terminal Blocks – 2-Pin & 3-Pin – TE Connectivity

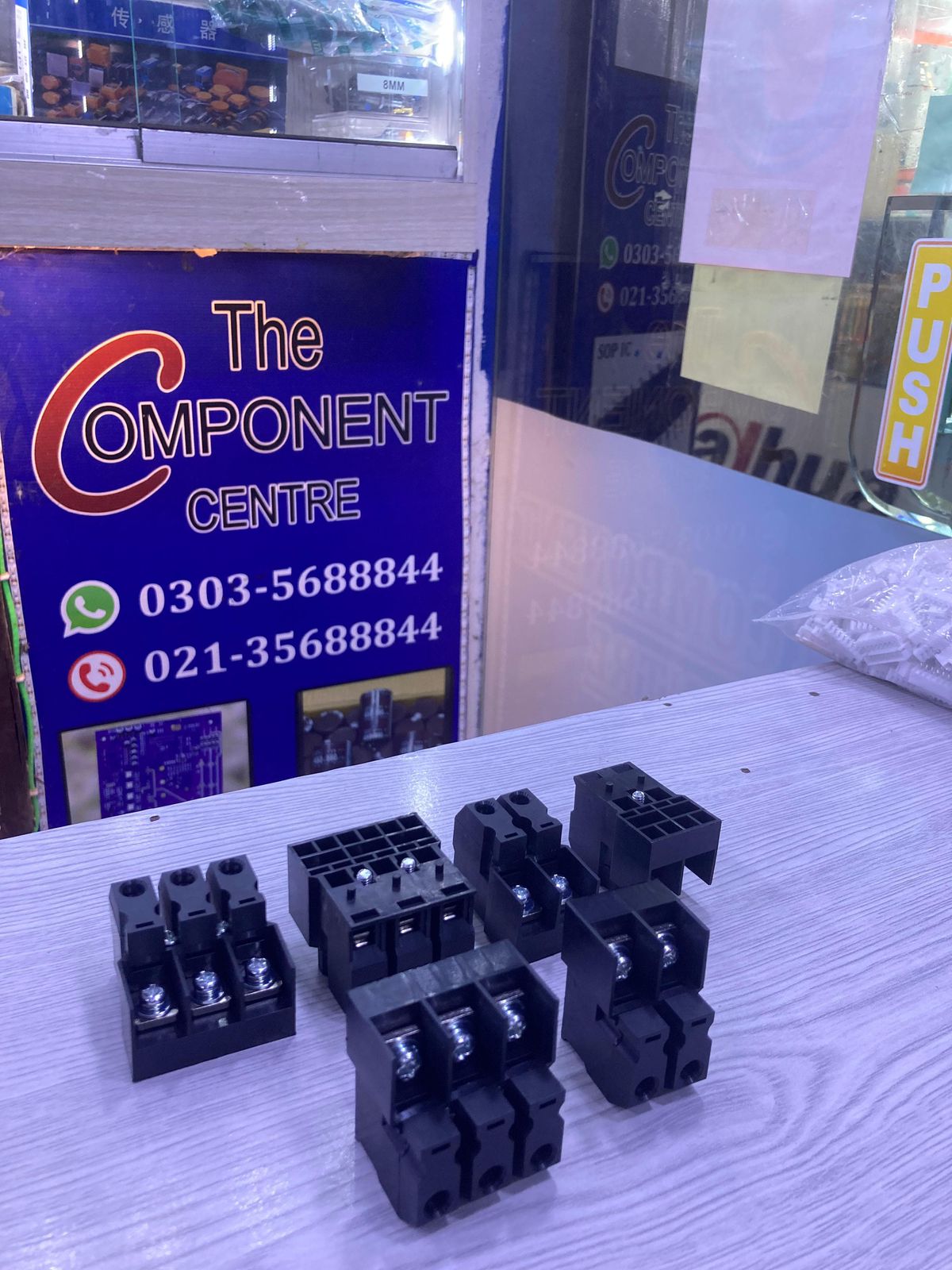

The Modular Dual Barrier Terminal Blocks from TE Connectivity are available in both 2-pin and 3-pin configurations, providing a reliable and flexible solution for secure wire-to-wire connections in industrial and commercial electrical systems. Featuring a dual barrier design, these blocks ensure superior electrical isolation between adjacent terminals, reducing the risk of accidental shorts and improving safety. The modular interlocking feature allows users to connect multiple blocks together to create custom configurations while maintaining a compact 0.235-inch (5.97 mm) centerline spacing. Engineered with flame-retardant UL 94V-0 polyamide housing and nickel-plated steel screw clamp terminations, these terminal blocks offer excellent durability, high mechanical strength, and resistance to heat and electrical stress. With ratings of 15A and 300V, they are well-suited for use in power distribution units, HVAC controls, industrial machinery, and security systems. Designed to operate in temperatures from –40°C to +105°C and fully compliant with UL and RoHS standards, these blocks provide dependable performance in demanding environments.

Key Specs

Type: 2-Pin and 3-Pin Modular Dual Barrier Terminal Blocks Number of Positions: Modular interlocking design for custom configurations Centerline Spacing: 0.235 inch (5.97 mm) Voltage Rating: 300 V AC/DC (UL) Current Rating: 15 A (UL) Housing Material: UL 94V-0 flame-retardant polyamide Termination Type: Screw clamp with nickel-plated steel screws Operating Temperature: –40°C to +105°C Recommended Screw Torque: 12 in-lbs Package Style: Single-row barrier terminal block Applications: Power Supplies, Industrial Controls, HVAC Systems, Security & Alarm Panels Brand: TE Connectivity Compliance: UL Recognized, RoHS Compliant
