Mitsubishi PS21869-P
PS21869-P

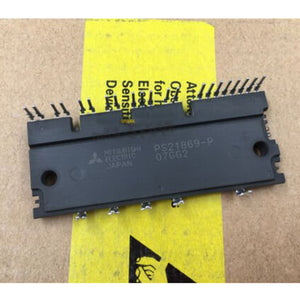

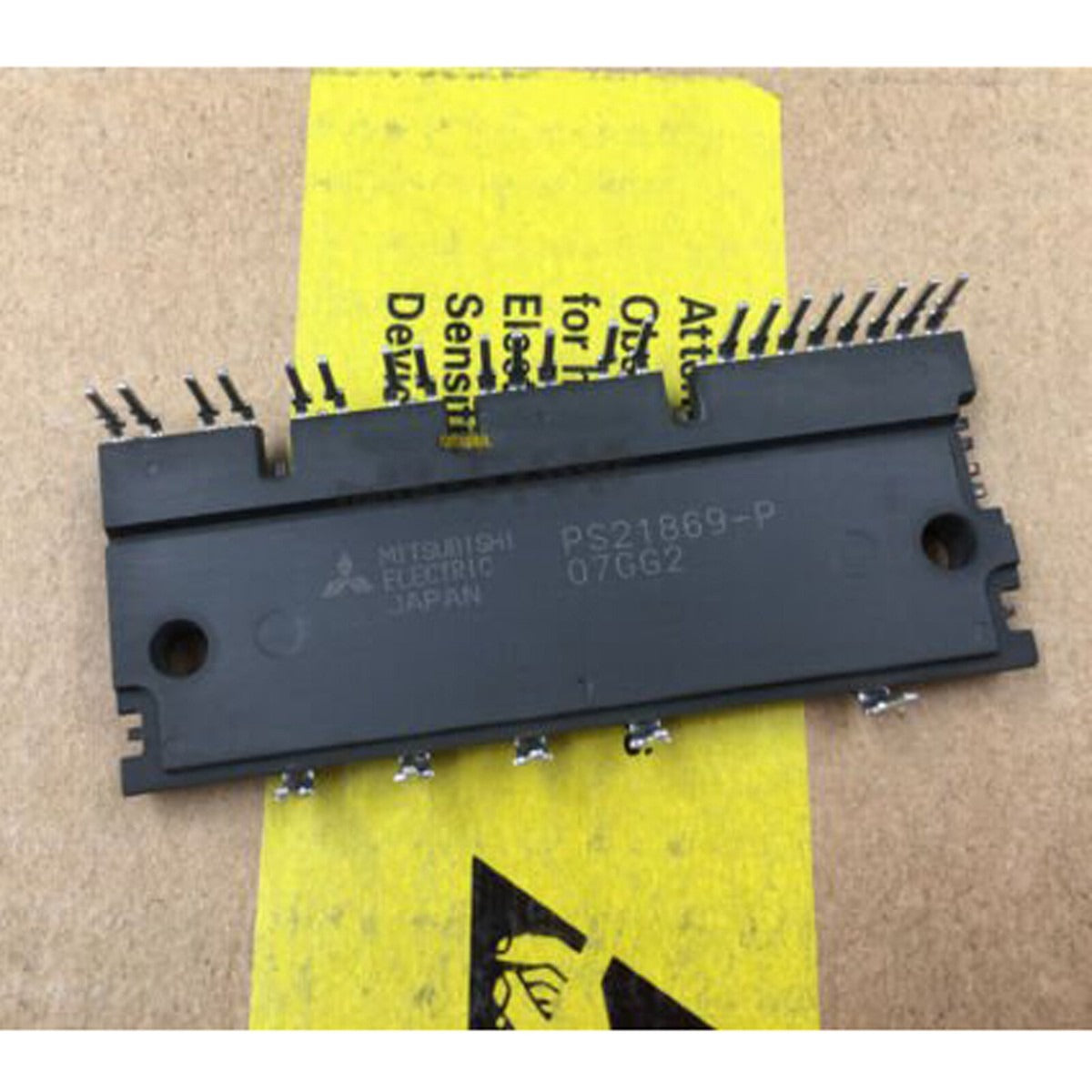

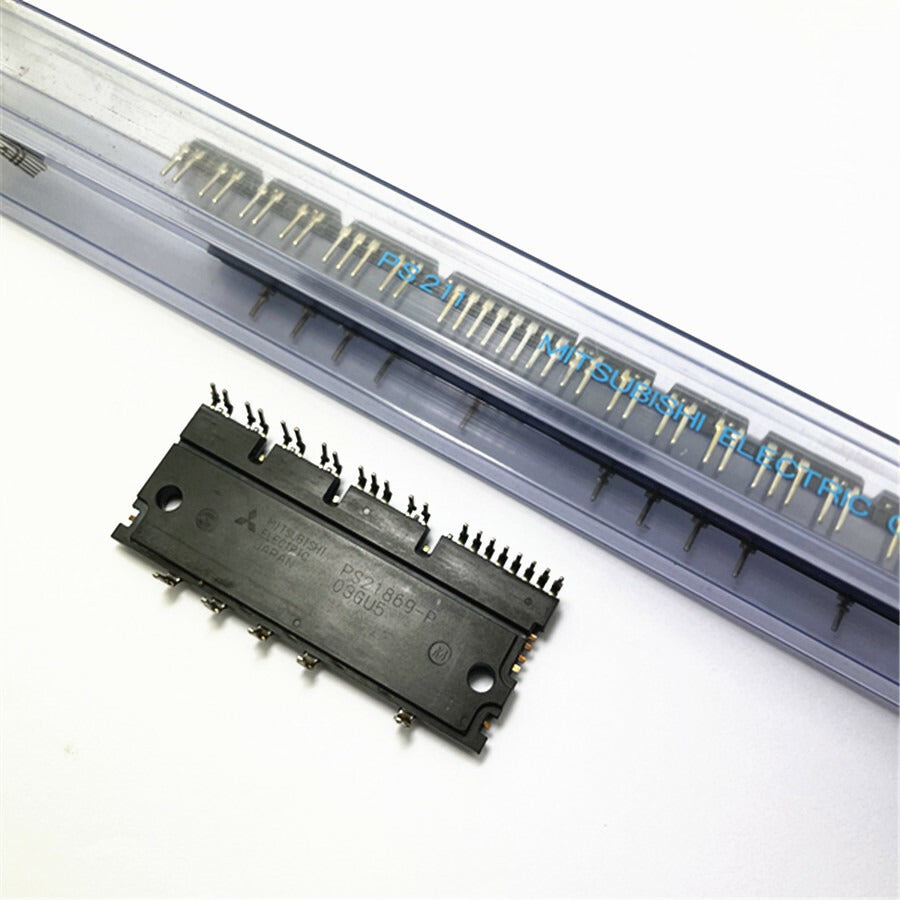

The Mitsubishi PS21869-P is a 600V/50A Intelligent Power Module (IPM) designed for three-phase DC-to-AC power conversion. It is suitable for applications such as variable frequency drives (VFDs), solar inverters, and industrial motor control systems. Its design ensures low power loss, fast switching, and reliable operation under demanding conditions.
Built using Mitsubishi's CSTBT (Carrier Stored Trench Gate Bipolar Transistor) technology, the PS21869-P integrates upper and lower IGBT drivers with isolated level shifting, under-voltage protection, and short-circuit protection. Its Dual-In-Line Package (DIP) form factor allows straightforward integration into various systems, making it appropriate for both industrial and commercial use.
The PS21869-P is capable of operating in high-temperature environments with minimal maintenance. Its structure reduces power loss and thermal stress, supporting long-term use in motor drives, inverters, and power supply systems.
For more detailed information, please refer to the Mitsubishi PS21869-P datasheet.
Key Specifications
| Specification | Value |
|---|---|
| Type | Intelligent Power Module (IPM) |
| Technology | CSTBT (Carrier Stored Trench Gate Bipolar Transistor) |
| Voltage Rating | 600V |
| Current Rating | 50A |
| Package Type | Dual-In-Line Package (DIP) |
| Topology | Three-phase inverter bridge |
| Protection Features | Under-voltage, short-circuit, overcurrent |
| Switching Frequency | Up to 20 kHz |
| Applications | VFDs, solar inverters, motor control systems, power supplies |
For more detailed information, please refer to the Mitsubishi PS21869-P datasheet.
