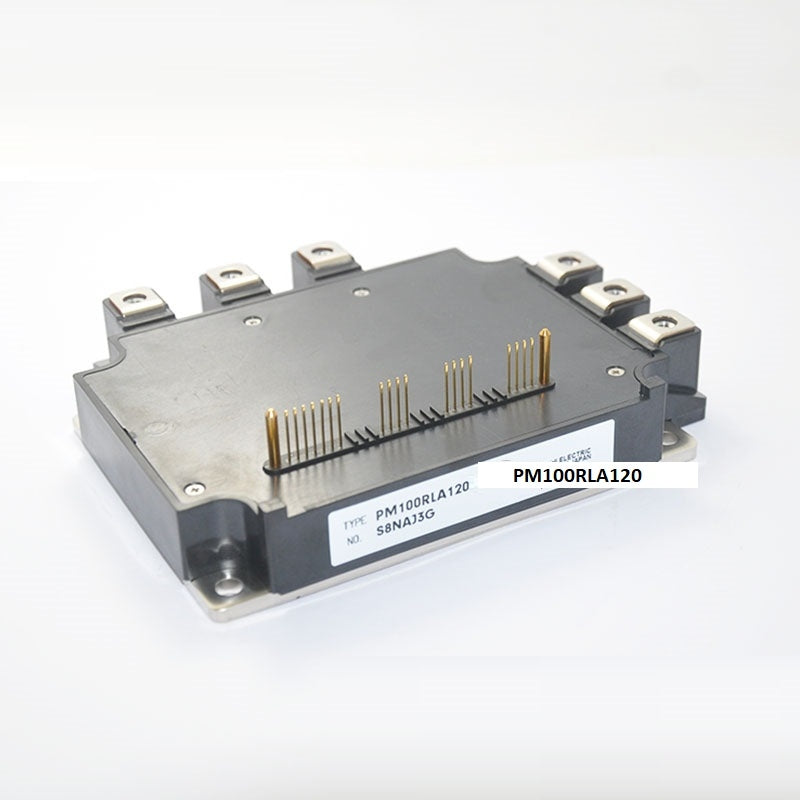

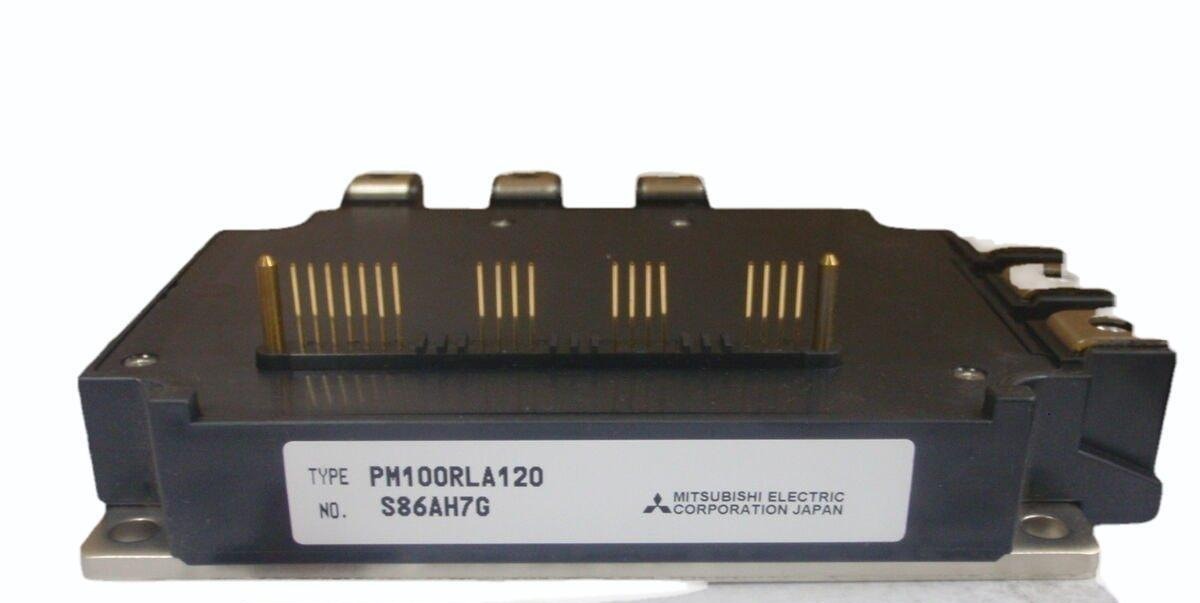

Mitsubishi PM100RLA120 100A 1200V IGBT Module
Regular price
Rs.0.00
Mitsubishi PM100RLA120 IGBT Module – 100A 1200V Intelligent Power Module
The Mitsubishi PM100RLA120 is a high-performance Intelligent Power Module (IPM) designed for demanding industrial and commercial applications. With a collector-emitter voltage rating of 1200V and a continuous collector current of 100A at 25°C, this module delivers exceptional efficiency and reliability. Its advanced CSTBT™ (Carrier Stored Trench Gate Bipolar Transistor) technology ensures low conduction and switching losses, making it ideal for motor drives, uninterruptible power supplies (UPS), and general-purpose inverters.
This module features a 3-phase Converter-Inverter-Brake (CIB) topology, integrating gate drivers and protection circuits into a single compact package. It includes built-in short-circuit, over-temperature, and under-voltage protections, enhancing system reliability and reducing the need for external components. The PM100RLA120's robust design and high thermal stability make it suitable for applications requiring continuous operation under challenging conditions.
Whether you're developing sophisticated AC servo drives or general-purpose inverters, the Mitsubishi PM100RLA120 offers a reliable and efficient solution. Its integrated design simplifies system architecture, reduces component count, and enhances overall performance, making it a preferred choice for engineers seeking high-quality power modules.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 1200V |
| Continuous Collector Current (IC) | 100A @ 25°C |
| Peak Collector Current (ICP) | 200A |
| Collector Dissipation (PC) | 300W |
| Junction Temperature (Tj) | 125°C |
| Switching Frequency | Up to 20kHz |
| Topology | 3-phase CIB |
| Protection Features | Short-circuit, Over-temperature, Under-voltage |
| Gate Drive | Integrated |
| Package Type | Flat-base Insulated Package |
For more detailed information, please refer to the Mitsubishi PM100RLA120 datasheet.
