Mitsubishi Electric CM300DXD-24A 1200V, 300A IGBT Module
Regular price
Rs.0.00

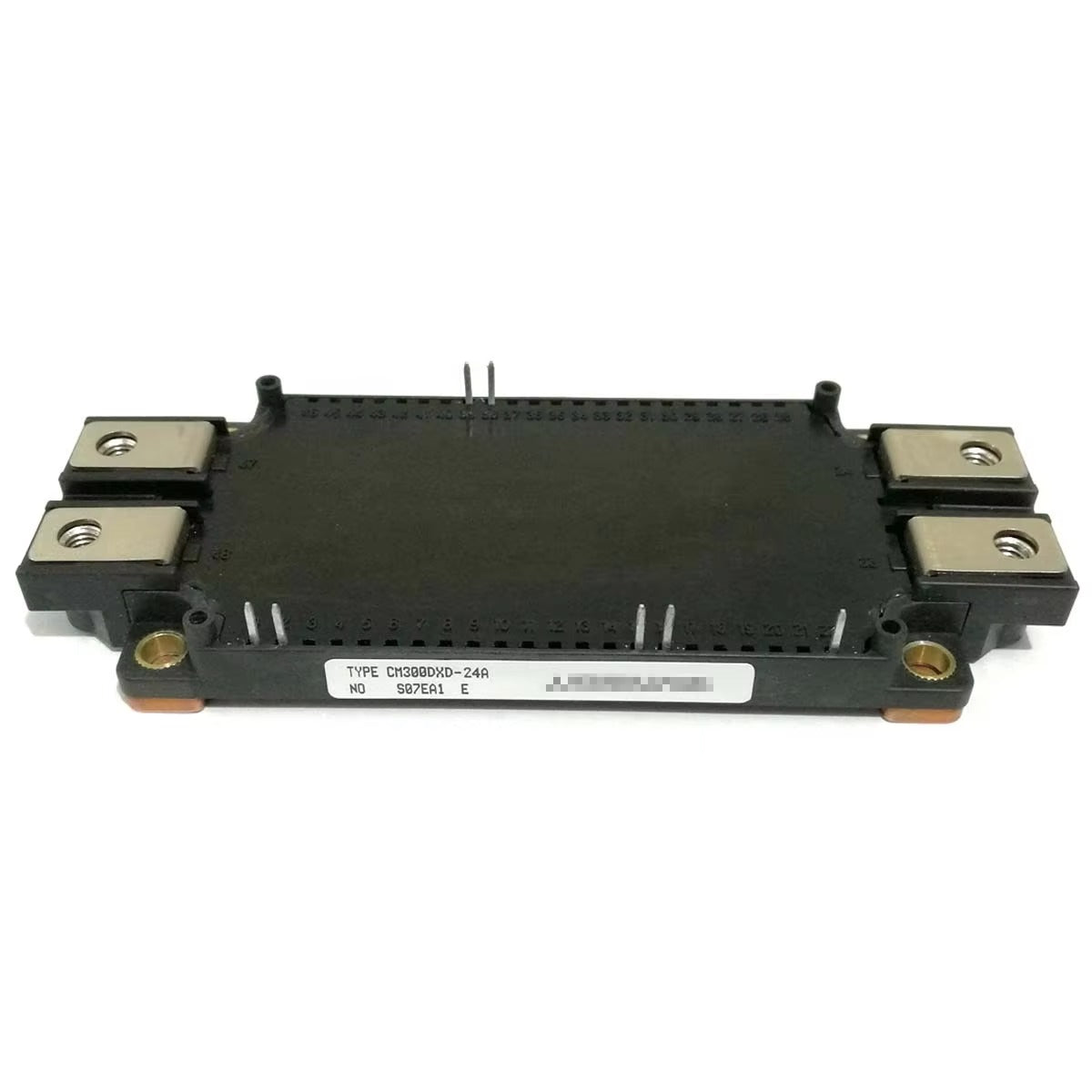

CM300DXD-24A IGBT Module
The CM300DXD-24A is a high-power IGBT module from Mitsubishi Electric, designed for demanding industrial power-electronics applications. With a blocking voltage of 1200 V and a 300 A current class, this module is widely used in inverters, motor drives, UPS units, and servo amplifiers. Its insulated package and flat-base design allow efficient mounting and thermal management in compact, high-density systems.
The module incorporates low VCE(sat) characteristics and integrated diodes optimized for converter and dynamic-brake circuits. These electrical properties improve efficiency, reduce conduction losses, and help minimize system cooling requirements. The CM300DXD-24A maintains stable operation even under repeated thermal cycling and high-stress switching conditions.
This IGBT module is selected for applications requiring long-term reliability, high current handling, and robust insulation performance. Its proven design, combined with Mitsubishi’s manufacturing quality, makes it suitable for both new designs and replacement in existing systems.
Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric Semiconductor |
| Part Number | CM300DXD-24A |
| Device Type | High-power IGBT Module |
| Voltage Rating | 1200 V |
| Current Class | 300 A |
| Package / Type | Insulated, flat-base power module |
| Typical Applications | Inverters, AC drives, UPS, servo amplifiers |
| VCE(sat) | Low conduction loss |
| Internal Diodes | Built-in converter / dynamic-brake diodes |
| Mounting | Bolt-on, flat base with mounting holes |
| Thermal Notes | Industrial cooling solutions required |
| Compliance | RoHS compliant |
For more detailed information, please refer to the official Mitsubishi CM300DX-24A datasheet.
