Mitsubishi Electric CM100DY-24NF IGBT Module
Regular price
Rs.0.00

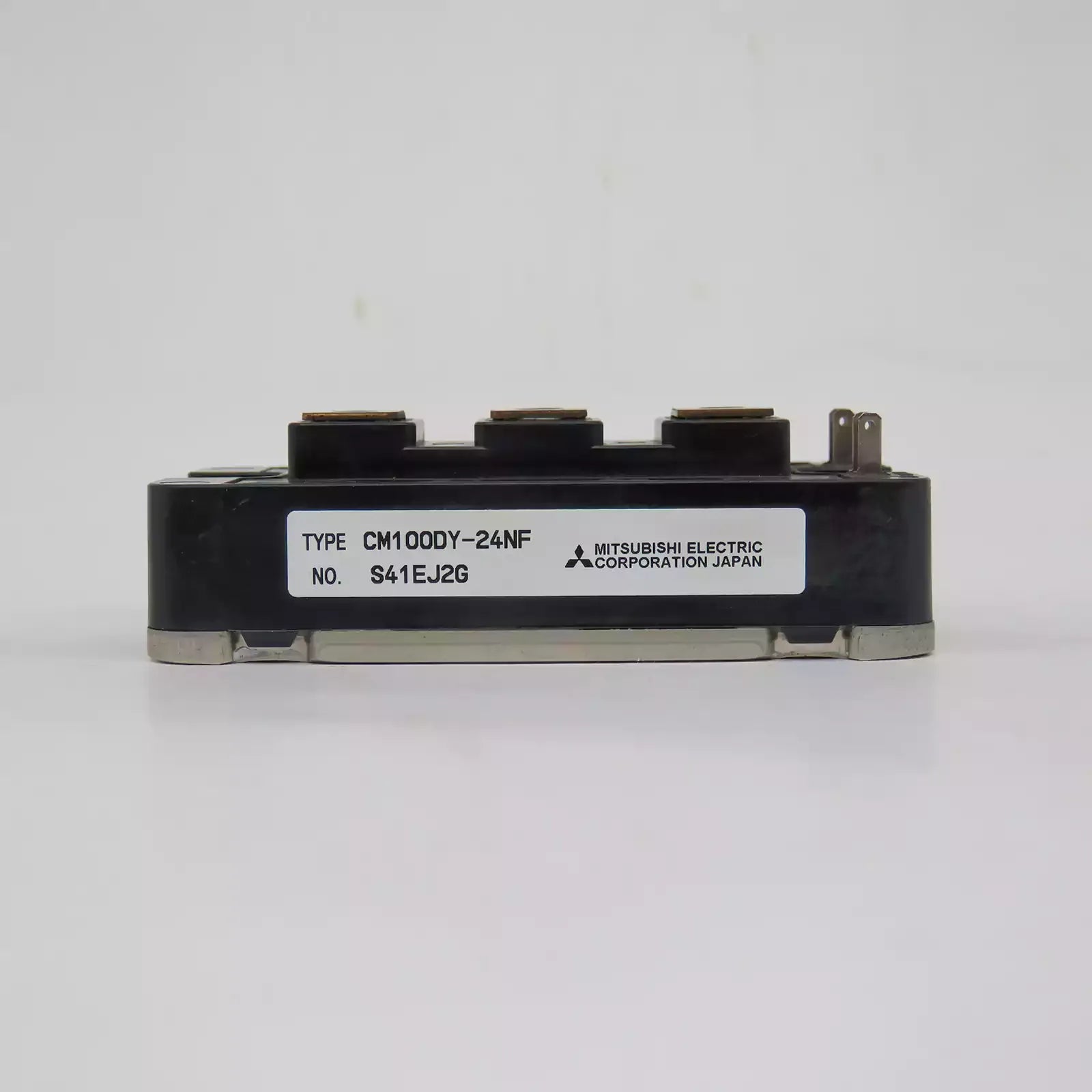

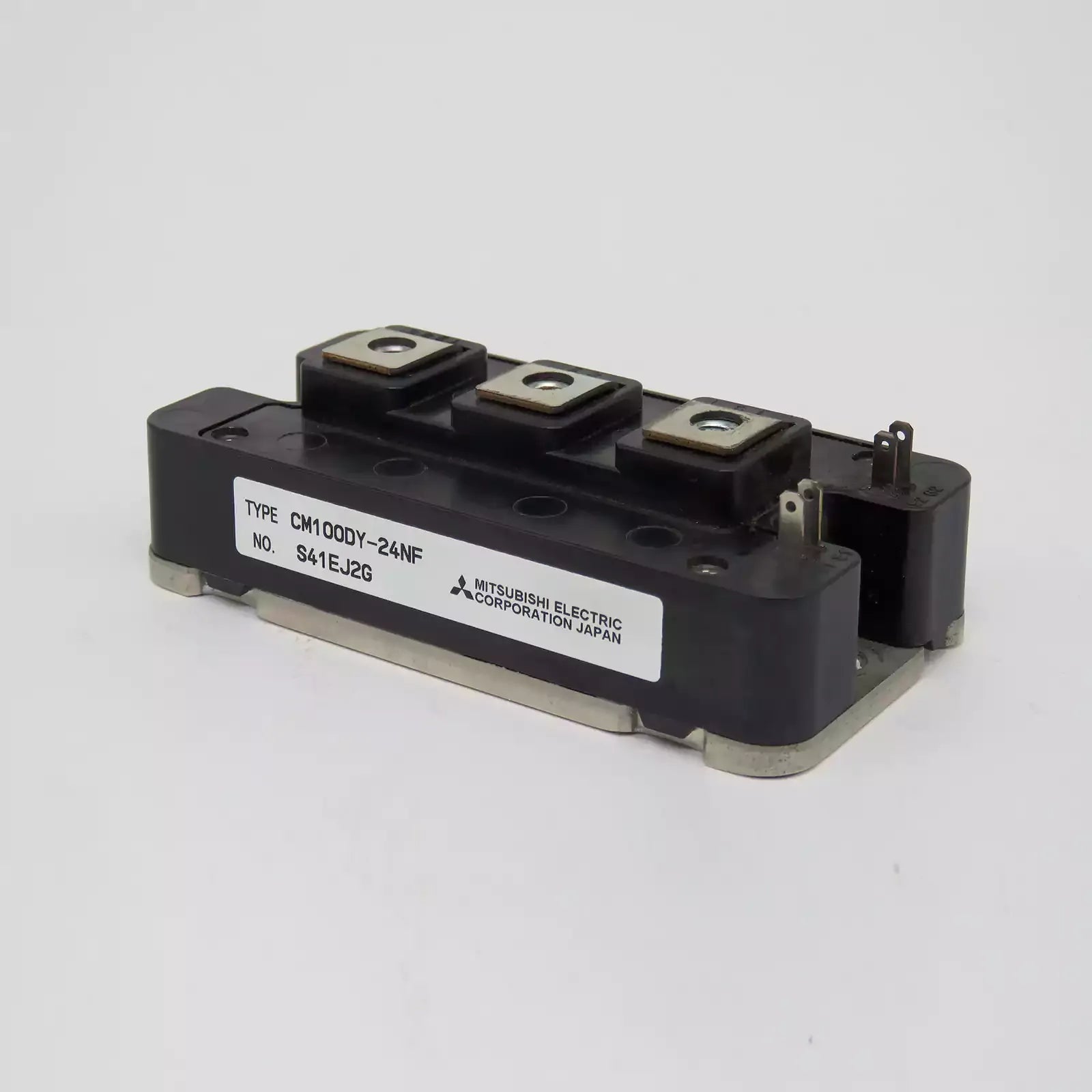

CM100DY-24NF IGBT Module Description
The Mitsubishi Electric CM100DY-24NF is an IGBT module designed for industrial and commercial power electronics applications. It has a collector-emitter voltage rating of 1200V and a continuous collector current of 100A, providing reliable switching performance in inverters, servo drives, and other high-power electronic systems. Its dual half-bridge configuration enables precise control and efficient operation.
The module features a low collector-emitter saturation voltage of 1.8V, reducing power losses. It operates reliably across a wide temperature range from -40°C to +150°C. With an insulation voltage of 2500Vrms, the module supports safe integration into critical systems.
Key characteristics include low thermal resistance, compact design, and high current handling capability. For detailed specifications, refer to the Mitsubishi Electric CM100DY-24NF datasheet.
Key Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 1200 V |
| Continuous Collector Current (IC) | 100 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.8 V |
| Power Dissipation (PC) | 650 W |
| Operating Temperature (Tj) | -40°C to +150°C |
| Isolation Voltage (Viso) | 2500 Vrms |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Mounting Style | Screw Mount |
| Thermal Resistance (Rth(j-c)) | 0.13°C/W |
| Weight | 450 g |
