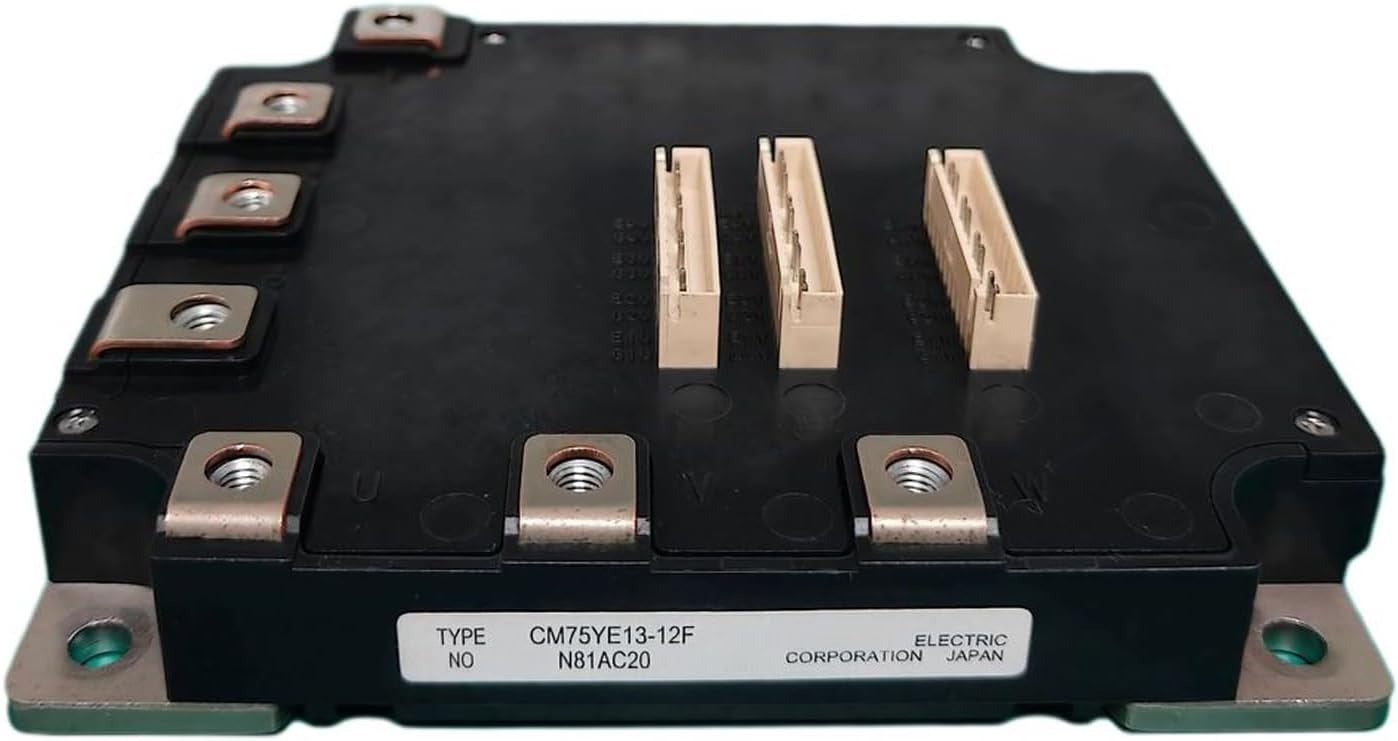

Mitsubishi CM75YE13-12F IGBT MODULE
The Mitsubishi CM75YE13-12F is a high-performance IGBT module designed for modern power electronics. Operating at a collector-emitter voltage (VCES) of 600V and a continuous collector current (IC) of 75A, this module supports three-level inverter topologies, providing efficient power conversion and reduced output voltage steps. Its Trench + Field Stop technology ensures low saturation voltage and a positive temperature coefficient, enhancing thermal performance and reliability.
The module features an insulated copper baseplate with soldering pins for PCB mounting, offering compact and effective system integration. The included freewheeling diodes have fast and soft reverse recovery, supporting high switching speeds with minimal electromagnetic interference.
CM75YE13-12F is suitable for industrial and commercial applications such as AC motor control, motion/servo control, inverters, and power supplies. Its design helps achieve lower output ripple current and improved output waveform quality, ensuring stable and consistent operation.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Continuous Collector Current (IC) | 75A |
| Junction Temperature (Tj) | -40°C to +150°C |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Isolation Voltage (Main Terminal to Baseplate) | 2500 Vrms (1 minute) |
| Weight | 800 grams |
| Package Type | Insulated copper baseplate with soldering pins for PCB mounting |
| Freewheeling Diodes | Included, fast and soft reverse recovery |
| Switching Technology | Trench + Field Stop IGBT |
| Applications | AC motor control, motion/servo control, inverters, power supplies |
For more detailed information, please refer to the Mitsubishi CM75YE13-12F datasheet.
