Mitsubishi CM100MXNC-24T 1200V, 100A IGBT Module
Regular price
Rs.0.00

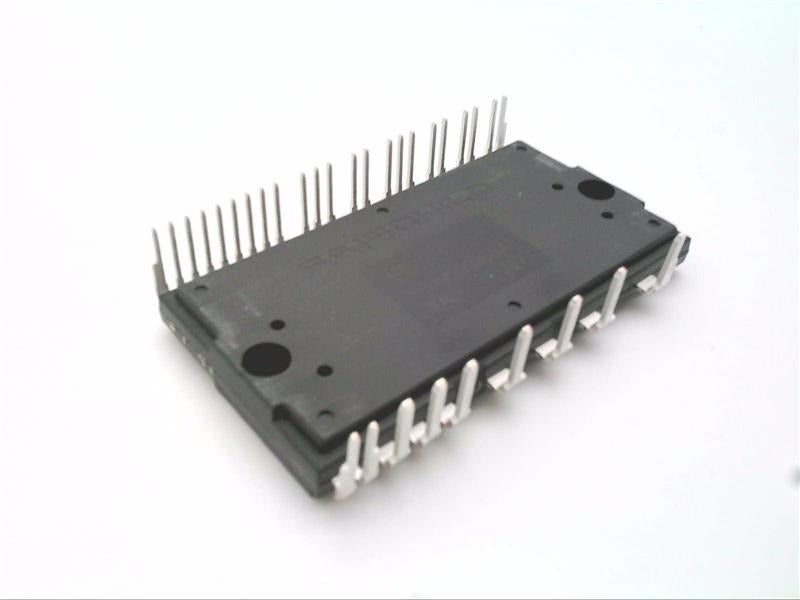

Mitsubishi CM100MXNC-24T IGBT Module
The Mitsubishi CM100MXNC-24T is an IGBT module designed for high-efficiency and reliable operation in power electronics applications. Using Mitsubishi’s CSTBT™ technology, it supports high voltage and current handling, suitable for industrial and commercial systems. Its integrated design combines multiple functions into a single package to simplify system assembly.
The module is applicable in AC motor drives, motion control, renewable energy systems, UPS, and EV charging stations. The three-phase converter and inverter integration (CIB design) reduces component count. The copper base plate with nickel plating provides effective thermal management and supports a maximum junction temperature of 175°C.
The CM100MXNC-24T includes Mitsubishi’s 7th-generation IGBT technology and relaxed field of cathode (RFC) structure for improved thermal cycle life and reduced power loss. It is RoHS compliant, meeting standard environmental requirements. The module provides a combination of voltage, current, and thermal characteristics suitable for a range of power electronics applications.
Key Specifications:
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Maximum Collector Current (I_C) | 100 A |
| Maximum Junction Temperature (T_j max) | 175°C |
| Total Power Dissipation (P_tot) | 565 W |
| Isolation Voltage (V_iso) | 2500 Vrms |
| Package Type | NX Type |
| Mounting Type | Insulated |
| Compliance | RoHS |
For detailed technical information, see the Mitsubishi Electric CM100MXUC-24T datasheet.
