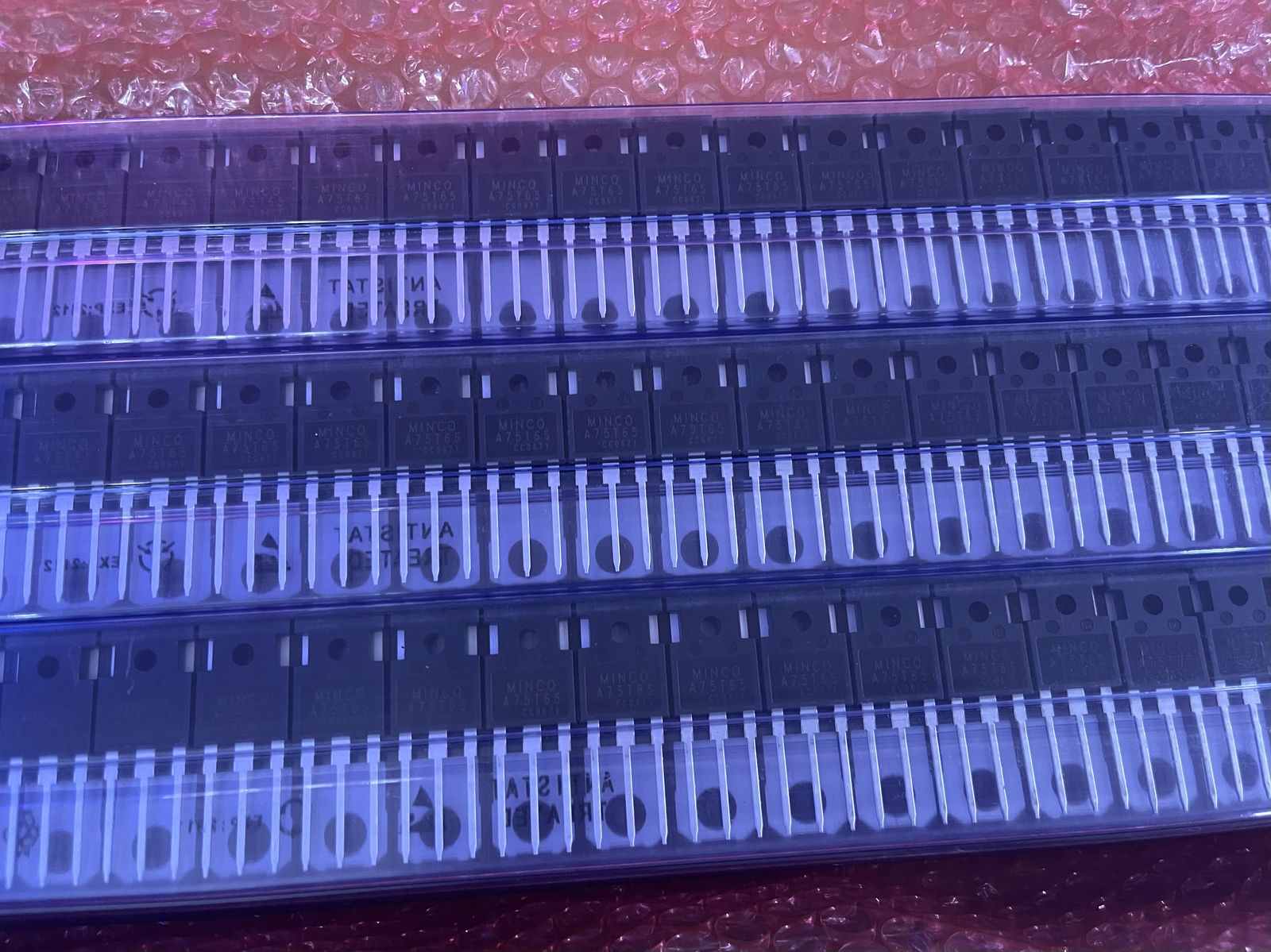

Minco A75T65 650V 75A IGBT
The Minco A75T65 is a 650V, 75A Field-Stop trench IGBT, designed for demanding power and industrial applications. It offers low V\CE(sat)\ of ~1.6 V at 75A, ensuring minimal conduction loss and optimized efficiency. The device supports a maximum junction temperature of 175 °C° C and is ideal for high-reliability systems including solar inverters, motor drives, and UPS units.
This IGBT features a positive temperature coefficient, which enables safe parallel operation. It supports fast switching for high-frequency designs and handles short-circuit events with peak pulsed current up to 300 A. Built for energy‑efficient performance, the Minco A75T65 is suitable for B2B buyers and OEMs seeking rugged 650V transistor solutions.
Key Specs Voltage Rating: 650 V DC Current Rating: 75 A Continuous @ 100 °C; 80 A @ 25 °C Technology: N‑Channel Field‑Stop Trench IGBT Package: TO‑247-3L (based on AFGHL75T65SQDC variant) V\CE(sat)\: ~1.6 V typ @ 75 A, 25 °C Switching: Fast switching, low switching losses Short-Circuit Capability: 300 A pulsed current Thermal Performance: TJmax = 175 °C; R\θJC\ ≈ 0.4 °C/W Applications: Solar Inverters, Motor Drives, UPS, PFC, Industrial Inverter Systems Brand: Minco (based on AFGHL75T65 field‑stop IGBT tech) Compliance: RoHS, PPAP capable, AEC‑Q101 qualified
