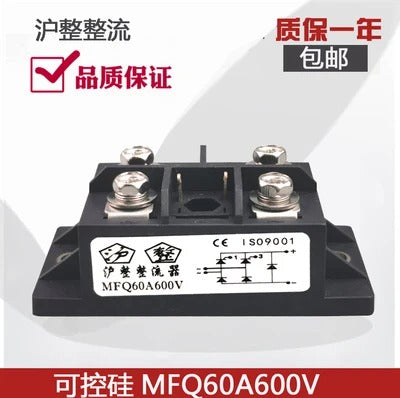

MFQ60A600V — Single Phase Half-Controlled Rectifier Module

The MFQ60A600V is a compact, industrial-grade single-phase half-controlled bridge module commonly offered as a 60 A / 600 V rectifier for power-electronics applications. Designed for steady DC supply in inverters, UPS units, motor drives and welding equipment, the part is built around glass-passivated diode/thryristor technology and is sold widely by distributors and component houses as an MFQ-series module. Listings and MFQ-series product pages show the MFQ variants (including 60 A models) targeted at industrial converters where robust surge capability and low forward drop matter.

Engineered for reliability under heavy loads, MFQ-series modules (the family that contains MFQ60 variants) typically provide low forward voltage, high non-repetitive surge capability and RoHS-compliant construction — features that translate to lower conduction losses, tolerance of start-up surges and long service life in commercial/industrial environments. Because many MFQ60A600V listings are distributor / OEM re-brands, common measured/typical parameters that appear across vendor datasheets and MFQ family datasheets include IF(AV) ≈ 60 A, repetitive peak reverse voltage ≈ 600 V and typical forward voltage around 1.6 V for the diode/thyristor elements — however exact electrical curves (thermal impedance, derating and exact surge rating) must be checked on the manufacturer’s datasheet for the precise part code you buy.

If you need parts for production or safety-critical designs, most distributors provide an MFQ60A600V product sheet and some MFQ family datasheets are published by makers of MFQ modules (see links below). Because the MFQ60A600V is commonly sold by many vendors (sometimes unbranded), I recommend confirming the exact device marking, the thermal derating curves and the non-repetitive surge (IFSM) value from the manufacturer-supplied datasheet before finalizing designs. Representative vendor and family datasheet links are provided below so you can open the original documents and verify the numbers for the specific unit you receive.

Key Specs
