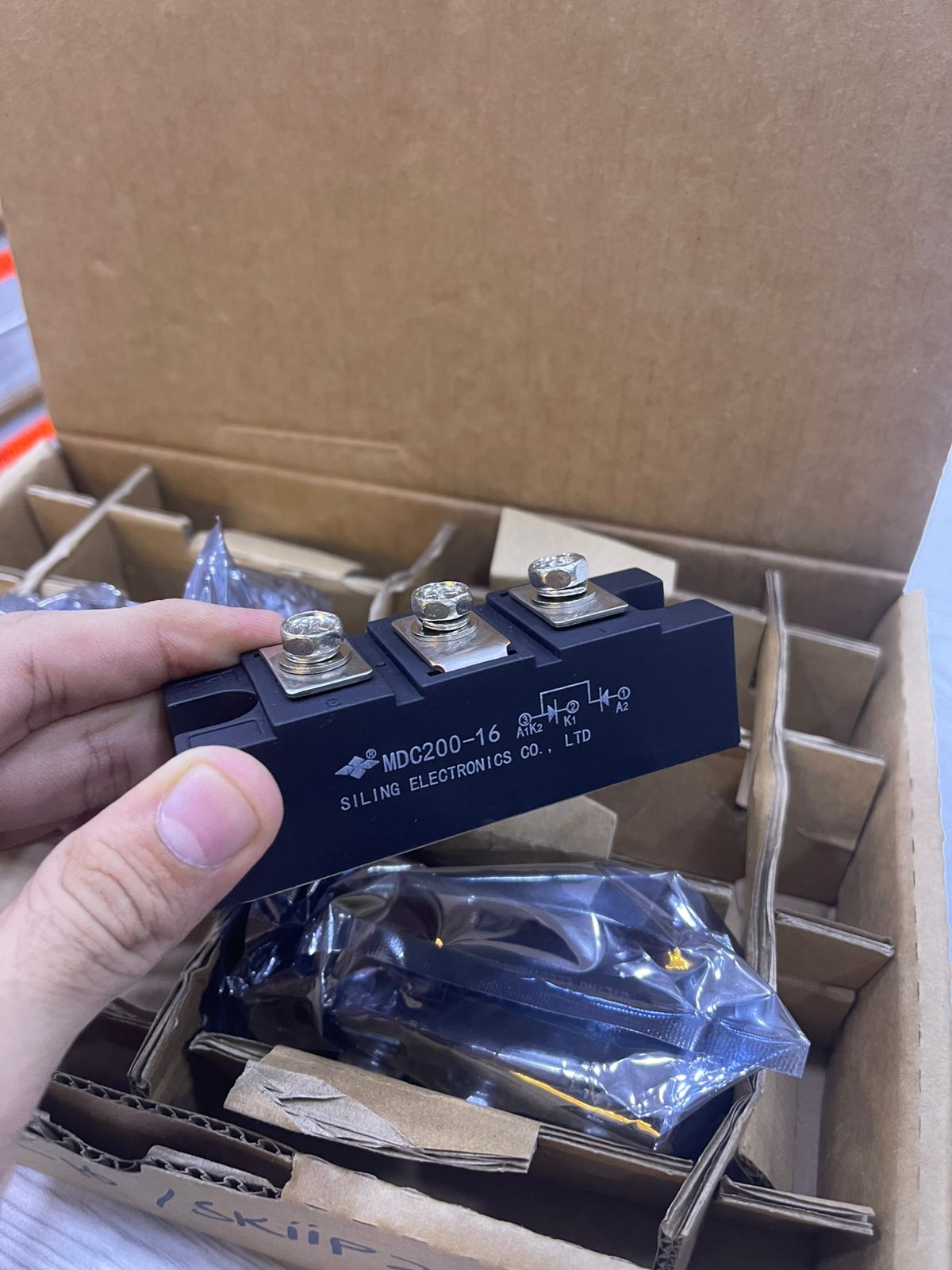

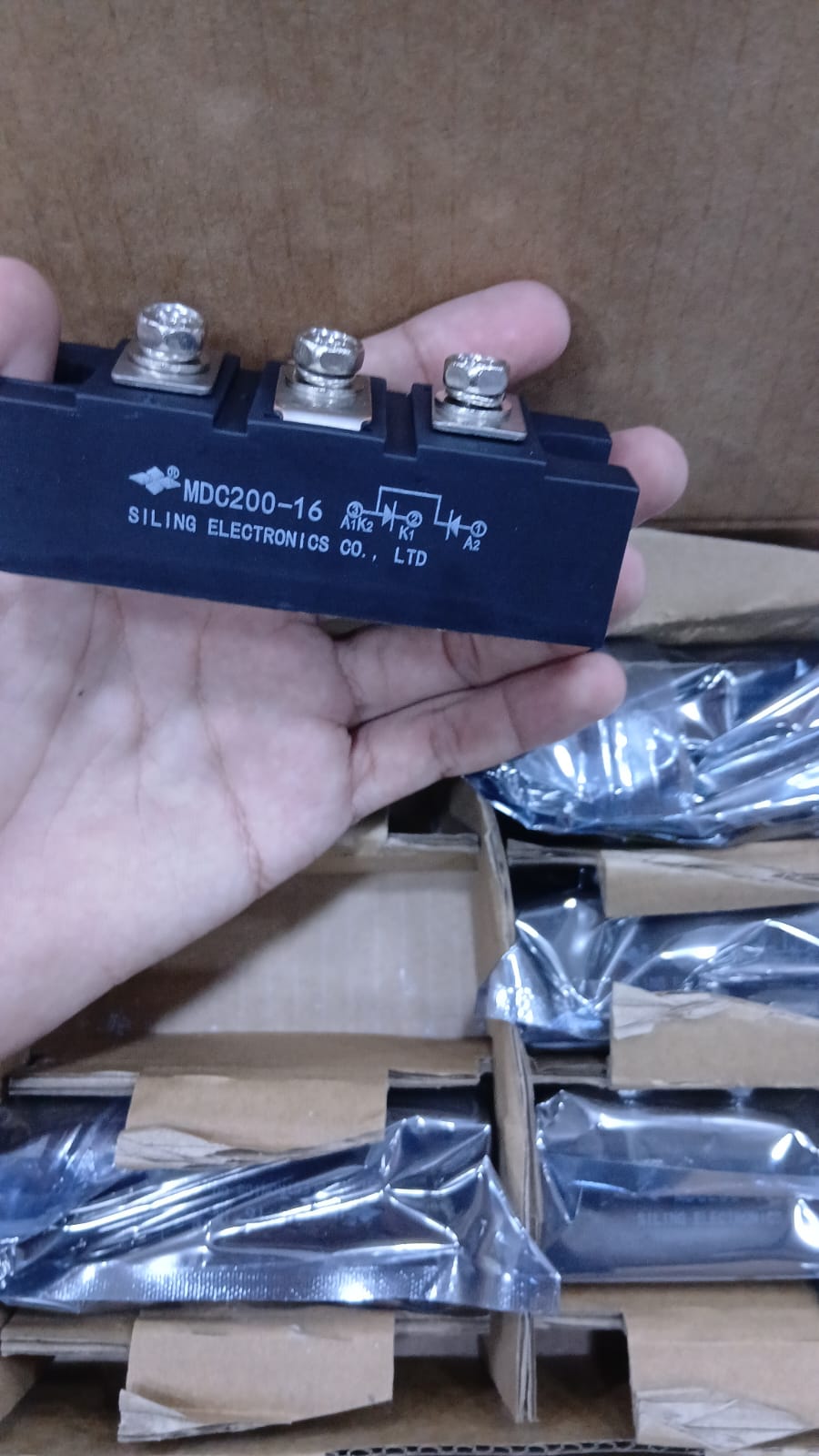

MDC200-16 — Dual Diode Rectifier Module (200 A / 1600 V)

The MDC200-16 is a heavy-duty dual diode rectifier module engineered for high-power industrial systems that require dependable, continuous operation. Designed in an industry-standard 214F3/216F3 housing, the module delivers an average forward current rating of 200 A (case 100 °C) and a repetitive peak reverse voltage of 1600 V, making it well suited for rectifier stages in converters, inverters, and large DC supplies.

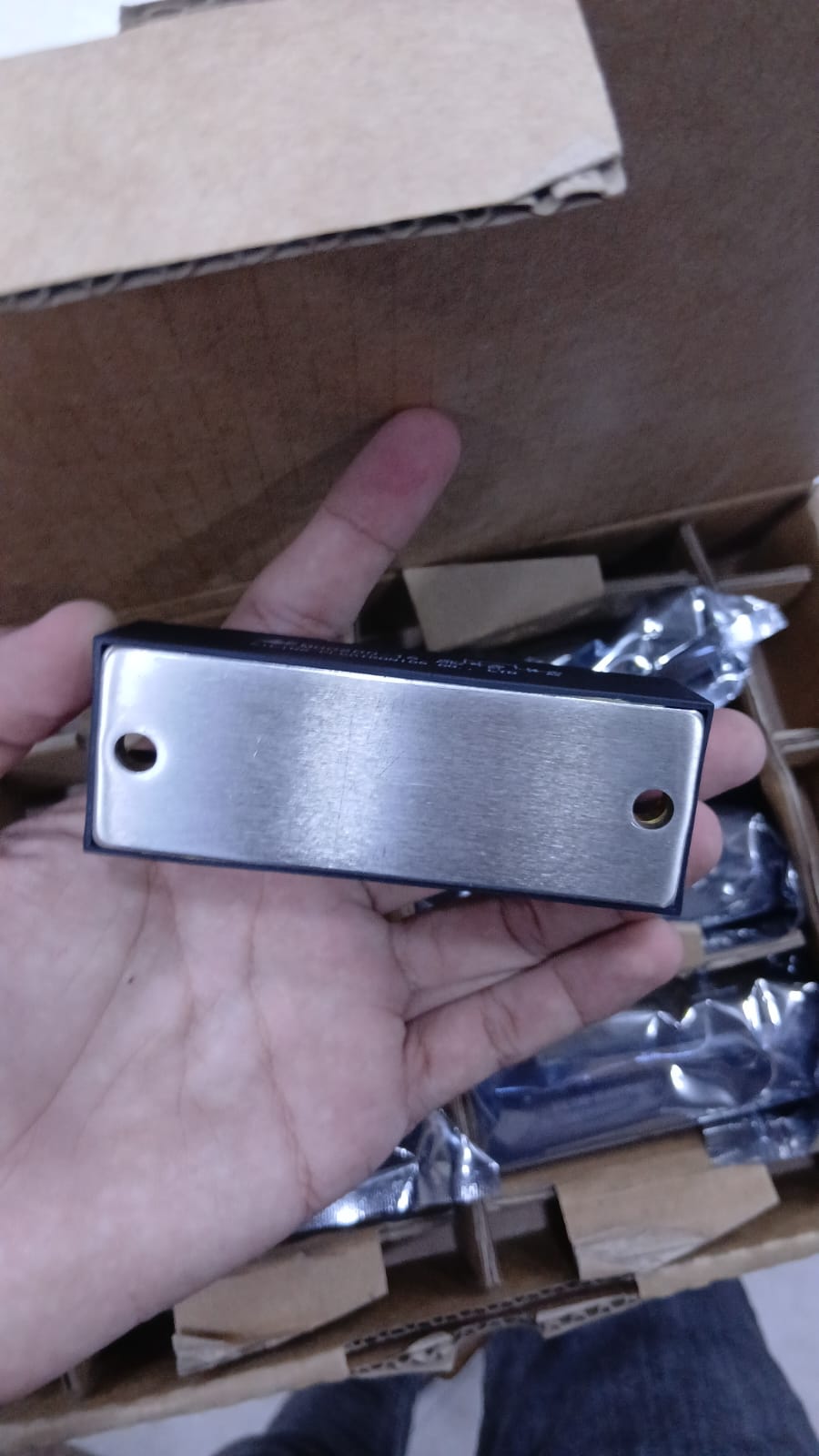

Built for robust thermal and electrical cycling, the MDC200-16 supports very high surge capability (up to 7.5 kA surge forward current) and exhibits a low forward voltage — approximately 1.38 V at 600 A — which helps minimize conduction losses under heavy load. Its junction-to-case thermal resistance is low (about 0.210 °C/W), and the module can be supplied with an isolated mounting base rated up to 3000 V RMS for dependable insulation in high-voltage systems. These characteristics translate into higher efficiency, improved heat handling, and extended service life in demanding environments.

The MDC200-16 is commonly deployed in motor drives, AC/DC motor controllers, UPS units, welding equipment, battery chargers and rectifier sections of power converters and soft starters where high current, high voltage and reliable cycling are essential. Its industrial-grade packaging, pressure-contact power terminals and compliance with common industry safety/ROHS requirements make the MDC200-16 a practical choice for designers who need a compact, serviceable rectifier module that integrates easily into existing power systems.

Key Specifications

Specification

Value

Average Forward Current (I_TAV)

200 A @ 100 °C case.

Repetitive Peak Reverse Voltage (V_RRM)

1600 V.

Surge Forward Current (I_TSM)

7.5 kA (single-pulse surge rating).

Forward Voltage (V_FM)

≈ 1.38 V @ 600 A (typical).

On-State Threshold Voltage (V_T0)

≈ 0.75 V (typical).

Thermal Resistance (Junction → Case)

≈ 0.210 °C/W.

Isolation Voltage (1 min RMS)

Up to 3000 V (variant dependent).

Safety / Certifications

CE / UL marking reported for module variants; RoHS compliant.

Package / Housing

214F3 / 216F3 industrial housing (pressure contact power terminals).

Typical Applications

Motor drives, UPS, inverters, welding equipment, battery chargers, rectifier/converter stages.
