Lenze 8211RH.1A Hybrid Resistor

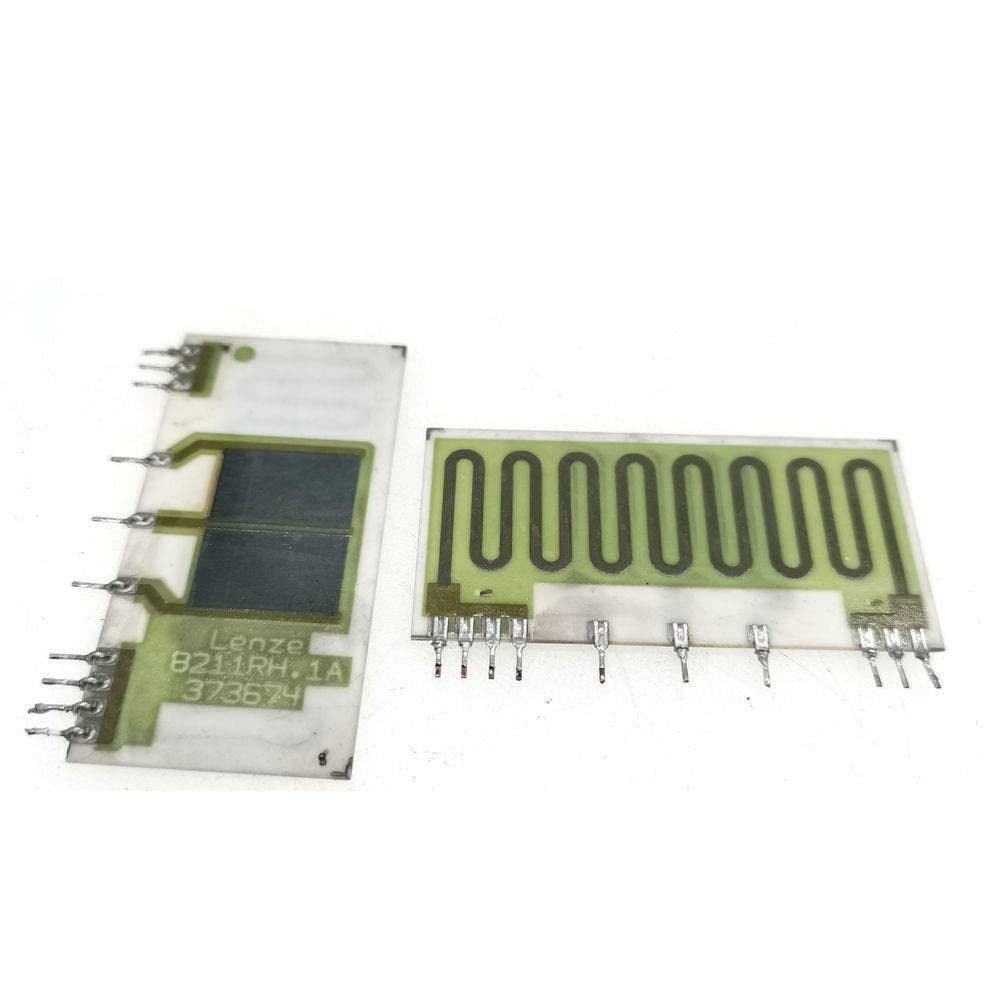

8211RH.1A Hybrid Resistor Array
The 8211RH.1A by Lenze is a hybrid resistor array designed for precise current distribution in modular power systems. Packaged in a SIP-10 form, it offers a compact footprint suitable for integration into power electronics assemblies such as inverters, drives, and converters. With an ultra-thin, transparent construction, it supports reliable multi-contact connectivity while occupying minimal space.
Rated for operation between 0 °C and +60 °C, and storage down to –25 °C, the 8211RH.1A accommodates a range of industrial conditions. Its customizable sizing allows flexible adaptation to the layout of specific systems or control boards.
Despite being discontinued by the manufacturer, the 8211RH.1A remains valuable for maintenance, retrofitting, and legacy systems requiring the precise resistance profile it offers.
Key Specifications
| Specification | Value / Description |
|---|---|
| Product Type | Hybrid Resistor Array |
| Package Type | SIP-10 |
| Manufacturer | Lenze |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage/Transport Range | –25 °C to +70 °C |
| Appearance | Ultra-thin, transparent |
| Contact Configuration | Multi-contact support |
| Customization | Size customizable |
| Status | Discontinued by manufacturer (legacy/repair part) |
