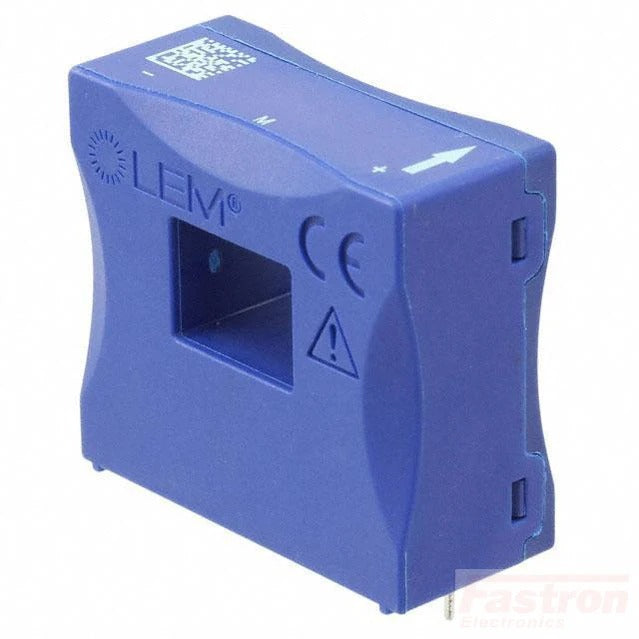

LA130-P/SP1 Hall Effect Current Sensor – 130 A, 65 mA Output
LA130-P/SP1 Current Sensor: Precision Measurement for Industrial Applications
The LA130-P/SP1 from LEM USA Inc. is a high-performance current sensor designed to provide accurate and reliable measurements in demanding industrial and commercial power electronics applications. Utilizing closed-loop Hall effect technology, this sensor offers galvanic isolation between the primary and secondary circuits, ensuring safety and precision in various environments.
With a nominal current rating of 130 ARMS and a measuring range up to ±200 A, the LA130-P/SP1 is ideal for applications requiring precise current monitoring. Its compact design and through-hole mounting facilitate easy integration into existing systems, making it a versatile choice for engineers and system designers. Operating within a wide temperature range of -40°C to +85°C, it ensures stable performance even in harsh conditions.
Whether you're working with motor drives, power supplies, renewable energy systems, or welding equipment, the LA130-P/SP1 delivers exceptional accuracy and durability. Its low response time of 300 ns and high accuracy of ±0.5% make it a reliable component for enhancing system performance and reducing maintenance needs.
Key Specifications
| Feature | Specification |
|---|---|
| Nominal Current (IPN) | 130 ARMS |
| Measuring Range (IPM) | ±200 A |
| Output Signal | 65 mA (Instantaneous) |
| Supply Voltage | ±12 V to ±15 V |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C to +85°C |
| Response Time | 300 ns |
| Mounting Type | Through Hole (PCB) |
| Technology | Closed Loop Hall Effect |
| Applications | Drives, Power Supplies, Renewable Energies, Welding |
For more detailed information, please refer to the LEM datasheet.
