KBPC5010 50A 1000V Single Phase Bridge Rectifier

KBPC5010 50A 1000V Bridge Rectifier – Single Phase Diode Module

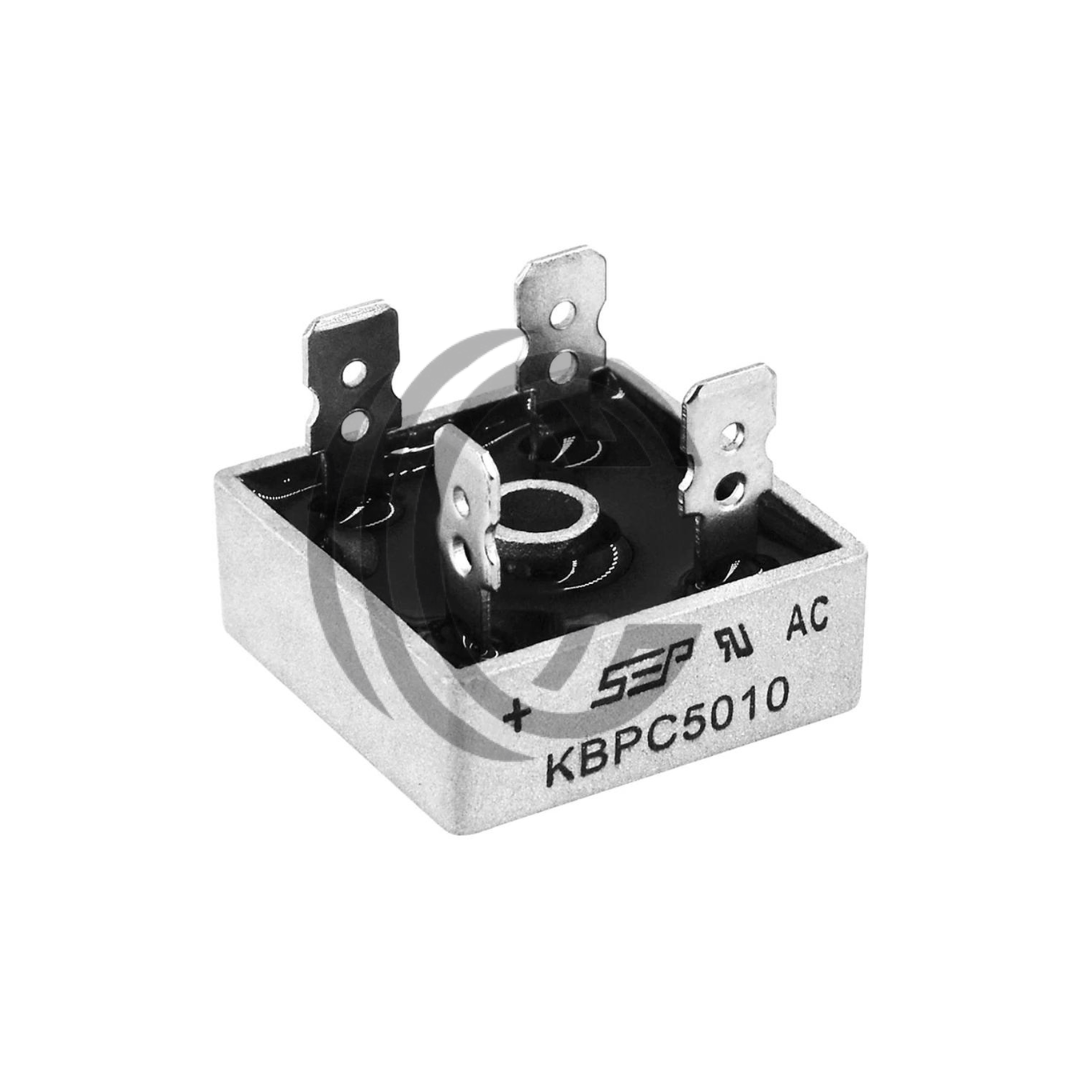

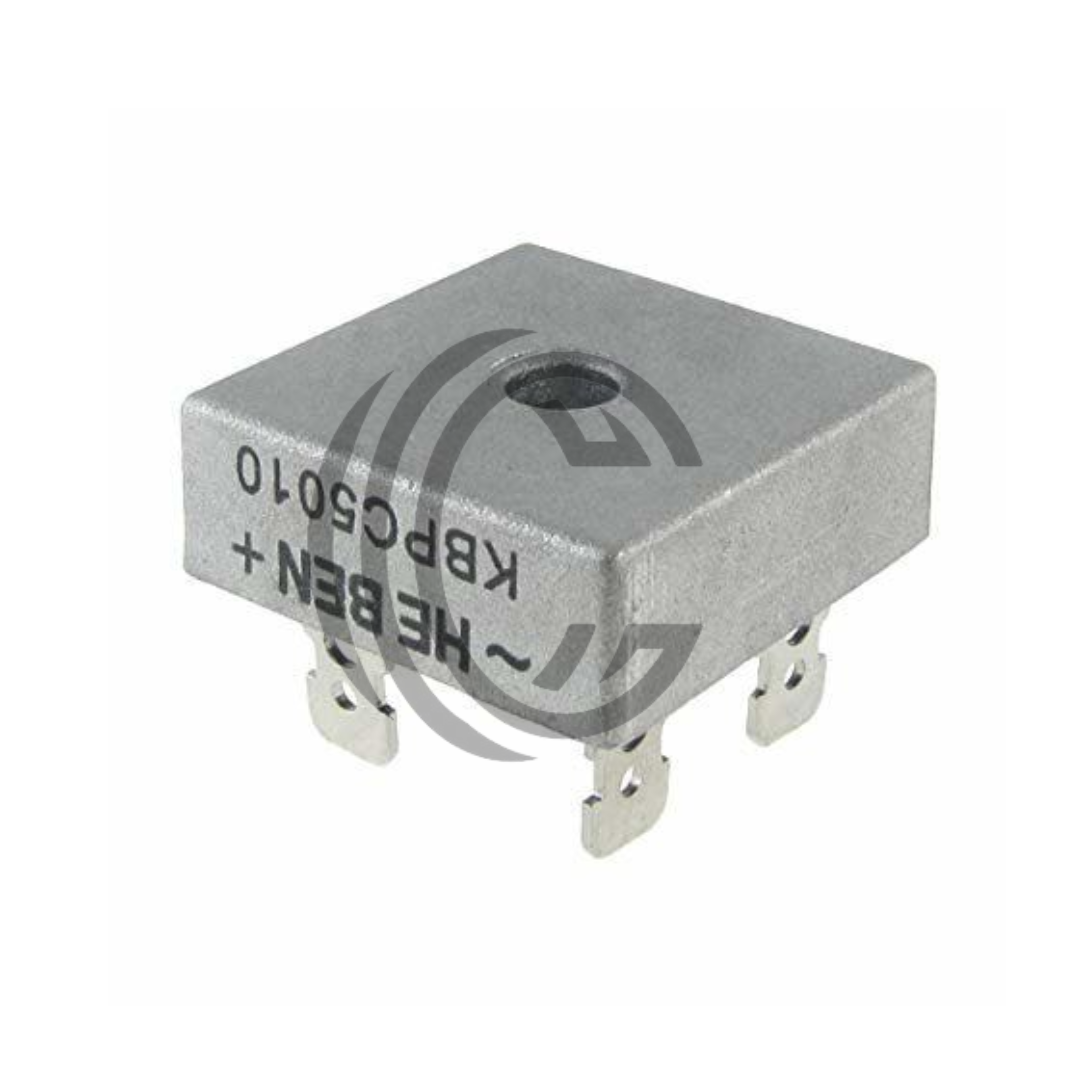

KBPC5010 is a single-phase bridge rectifier rated for 50A and 1000V, engineered for high-current AC to DC conversion. Suitable for industrial power supplies, battery chargers, and motor drives, this rectifier offers strong thermal performance and surge protection. Its metal case ensures efficient heat dissipation, and the 4-pin configuration supports easy mounting in PCB or chassis-based designs.

With a low forward voltage drop and high surge current capability, the KBPC5010 maintains stable operation under heavy load. The rectifier features isolated construction and fast-on spade terminals for secure connections. Measuring approximately 28 x 28mm, the compact module fits demanding layouts in inverter circuits and automation systems. RoHS compliant and built to withstand high-voltage conditions, it is a dependable choice for renewable energy converters, automotive equipment, and power distribution systems.

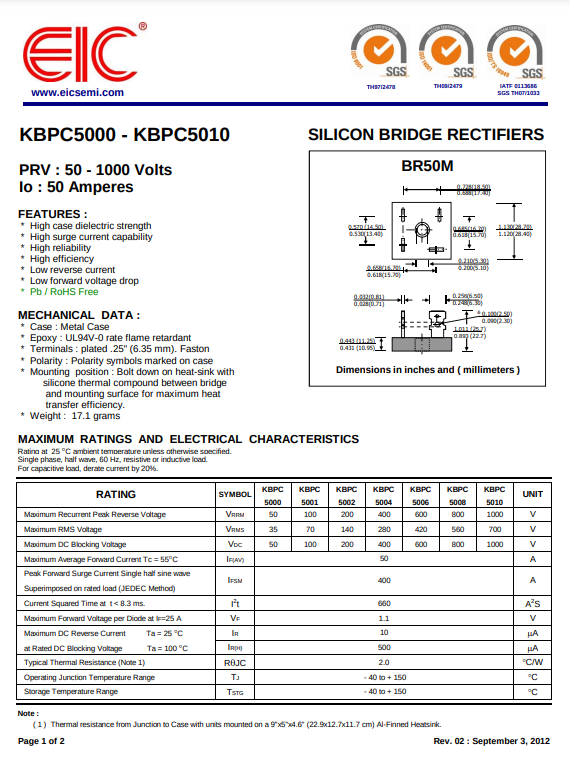

Key Specs Voltage Rating: 1000V Current Rating: 50A Continuous Configuration: Single Phase, 4-Pin Case: Electrically Isolated Metal Surge Current: High (up to 400A) Mounting: Chassis or PCB Dimensions: 28 x 28 x 11mm Applications: Power Supplies, Inverters, LED Drivers, Motor Drives, Battery Chargers Compliance: RoHS
