KBP310 3A 1000V Bridge Rectifier

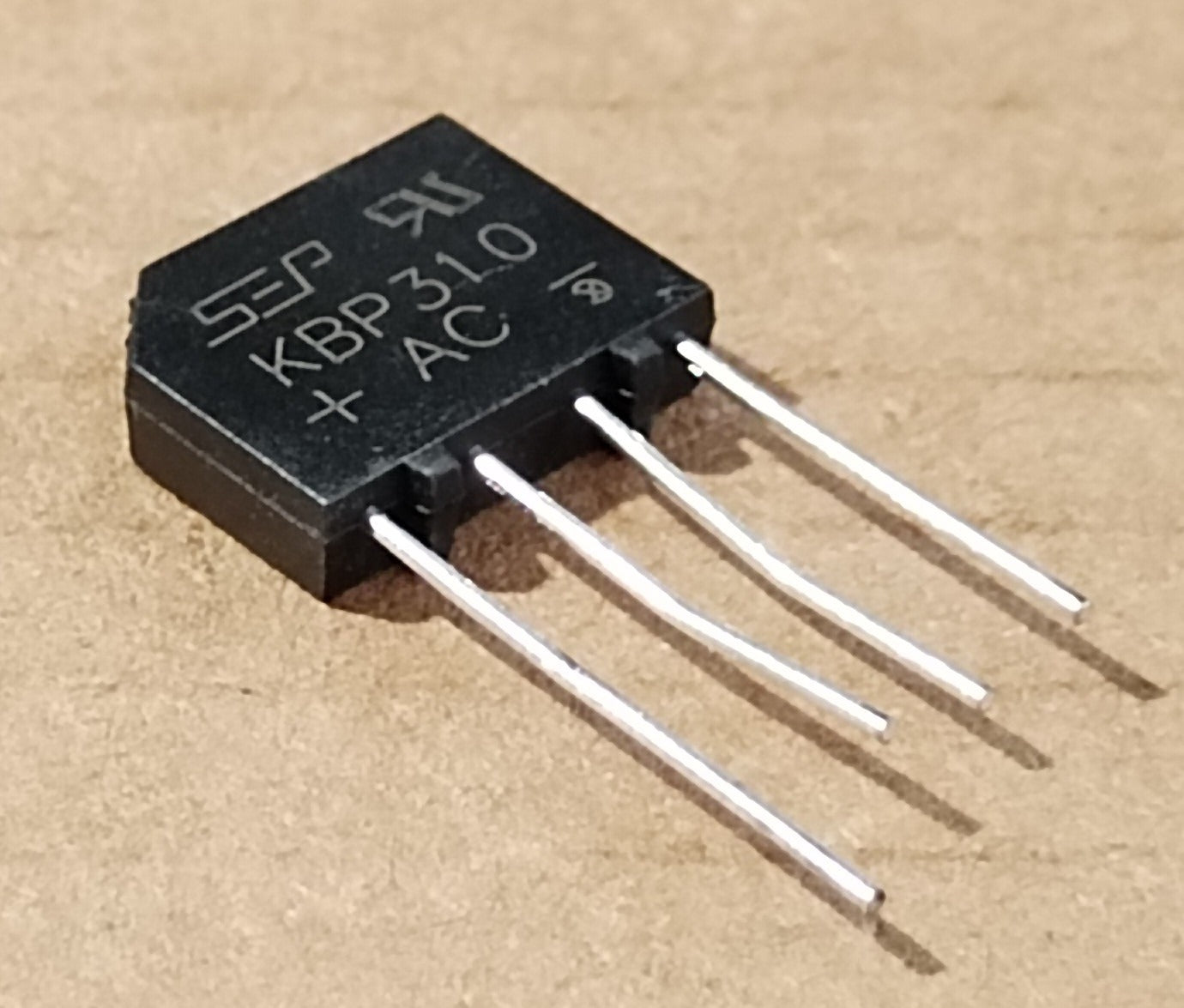

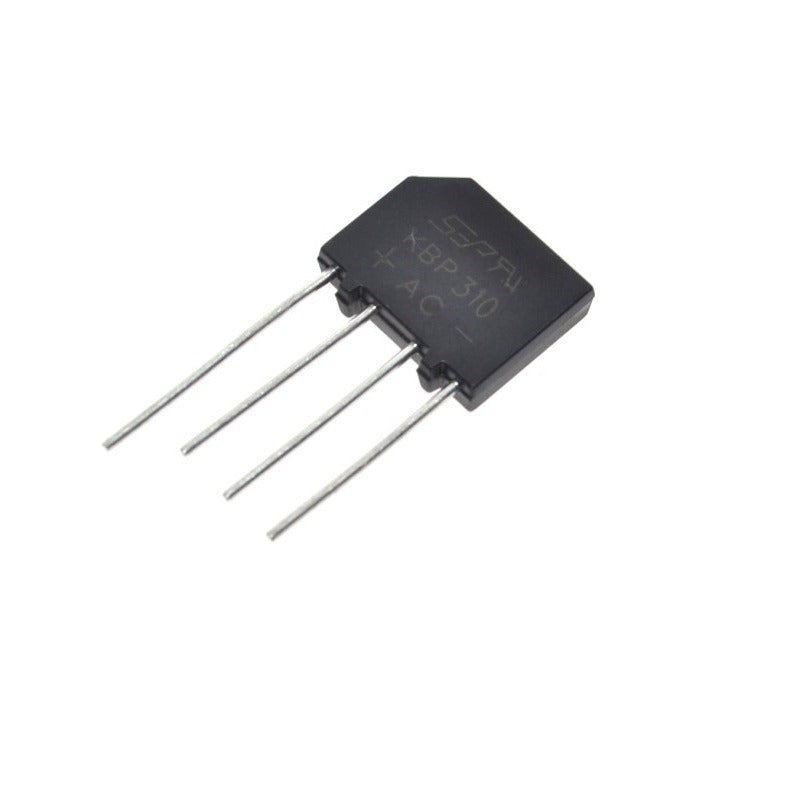

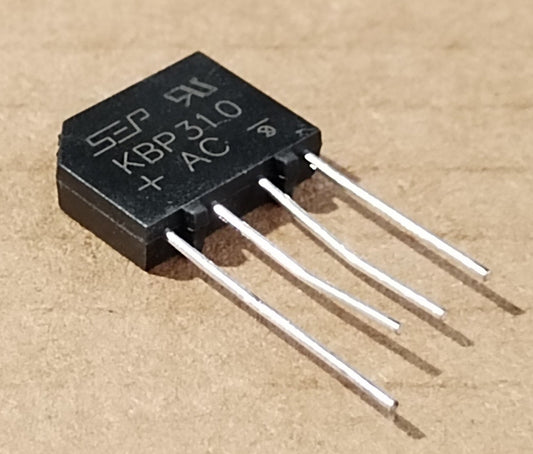

KBP310 Bridge Rectifier
The KBP310 is a robust single-phase bridge rectifier designed to efficiently convert alternating current (AC) to direct current (DC) in various power electronics applications. With a maximum repetitive peak reverse voltage (V_RRM) of 1000V and a forward current rating of 3.0A, it ensures reliable performance in demanding environments. Its glass-passivated chip construction offers enhanced durability, making it suitable for both industrial and commercial use.
This rectifier excels in applications requiring high surge current capability and low reverse leakage current. Its molded plastic package and solderable leads per MIL-STD-2026 ensure ease of integration into printed circuit boards (PCBs). The KBP310's low forward voltage drop contributes to improved energy efficiency, while its high surge current capacity allows it to handle transient spikes without compromising performance.
Ideal for use in power supplies, battery chargers, and other power conversion systems, the KBP310 provides a cost-effective solution without sacrificing quality. Its versatility and reliability make it a preferred choice for engineers seeking a dependable component for their power electronics designs.
Key Specs
| Specification | Value |
|---|---|
| Maximum Repetitive Peak Reverse Voltage (V_RRM) | 1000V |
| Average Forward Output Current (I_O) | 3.0A |
| Forward Voltage Drop (per diode) | ~1.1V @ 3A |
| Reverse Leakage Current | 10µA @ 1000V |
| Non-Repetitive Peak Forward Surge Current (I_FSM) | 200A (8.3ms half sine) |
| Operating Temperature Range | -55°C to +150°C |
| Package Type | KBP (flat rectangular, 4 pins) |
| Mounting Type | Through-hole or PCB Mount |
For more detailed information, please refer to the KBP310 datasheet.
