JH-459A 600V 25A Industrial IGBT Module

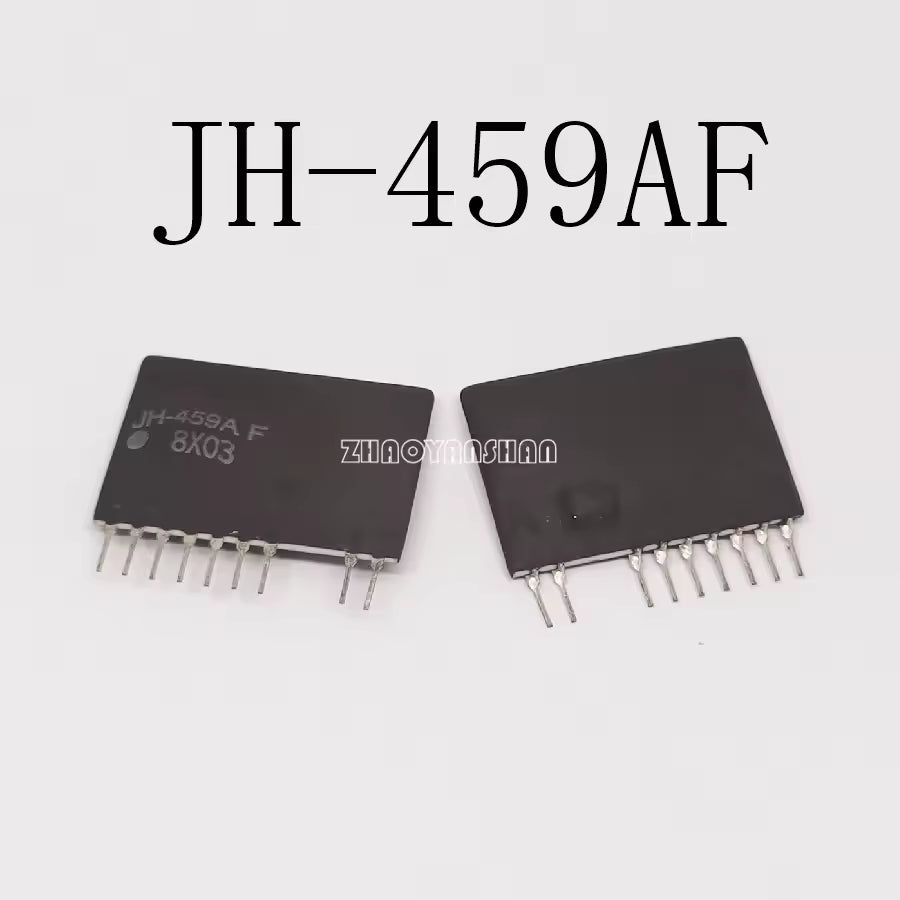

JH-459A IGBT Module
The JH-459A IGBT Module from Yaskawa is engineered to deliver exceptional performance and reliability in demanding industrial and commercial environments. Designed for driving three-phase brushless DC (BLDC) motors, this module ensures efficient and precise motor control, making it ideal for applications such as HVAC systems, industrial automation, and home appliances. Its robust construction and advanced features make it a trusted choice for engineers seeking high-performance power solutions.
Built to withstand challenging conditions, the JH-459A operates within a wide voltage range and offers integrated protection features, including overcurrent protection, thermal shutdown, and undervoltage lockout. These safety mechanisms ensure the module's longevity and reliability, even in high-stress environments. Its compact SIP-9 package facilitates easy integration into existing systems, while its RoHS-compliant design underscores a commitment to environmental responsibility.
The JH-459A's efficiency and durability make it a cost-effective solution for applications requiring high power density and compact form factors. Whether you're upgrading existing systems or designing new ones, this module provides the performance and reliability needed to meet the demands of modern industrial applications.
🔧 Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yaskawa Electric Corporation |
| Module Type | Intelligent Power Module (IPM) |
| Voltage Rating | 600V |
| Current Rating | 25A continuous, 50A peak |
| Package Type | SIP-9 |
| Input Voltage | 15V to 20V |
| Operating Temperature | Up to 125°C |
| Protection Features | Overcurrent Protection, Thermal Shutdown, Undervoltage Lockout, Fault Signal Output |
| Interface | CMOS-compatible (3.3V / 5V) |
| Applications | BLDC Motor Control, HVAC Systems, Industrial Automation, Home Appliances |
| Compliance | RoHS Compliant |
