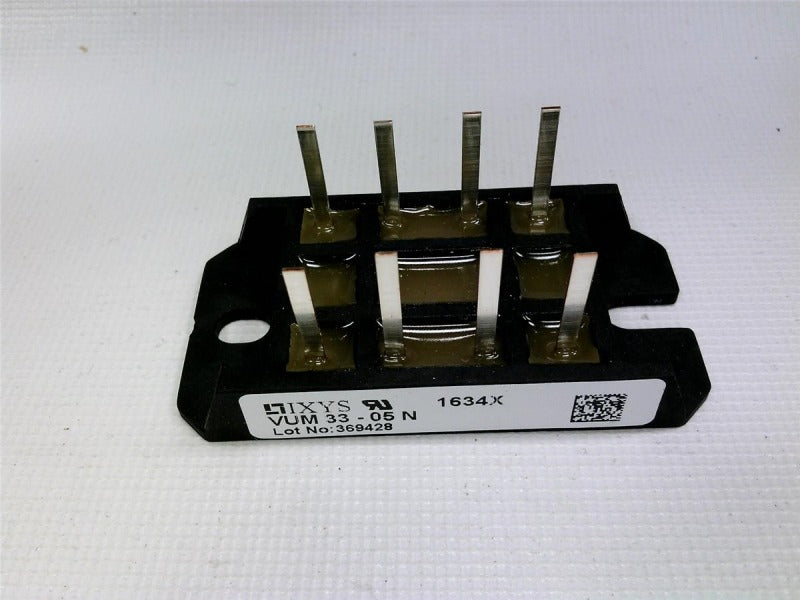

IXYS VUM33-05N 600V 33A Power Module
Regular price Rs.0.00

VUM33-05N Power Module – Technical Overview

The VUM33-05N by IXYS is a versatile power module designed for high-efficiency power conversion applications. With a peak reverse voltage of 600V and a continuous drain current of 33A, it is well-suited for power factor correction (PFC) circuits, boost converters, uninterruptible power supplies (UPS), and industrial motor drives. Its compact V1-B-Pack package ensures easy integration into space-constrained designs, making it a reliable choice for both industrial and commercial power electronics.

This module features a low on-state resistance of 0.12Ω, facilitating minimal conduction losses and efficient thermal management. With a maximum junction temperature of 150°C and an isolation voltage of 3600V, the VUM33-05N offers enhanced durability and reliability under demanding operating conditions. Its design includes a DCB ceramic base plate and FASTON connectors, simplifying mounting and ensuring secure electrical connections.

Applications of the VUM33-05N span various sectors, including industrial automation, renewable energy systems, and consumer electronics. Its ability to handle high currents and voltages while maintaining low thermal losses makes it ideal for systems requiring efficient and durable power conversion solutions.


Key Specifications

Parameter Value
Peak Reverse Voltage (V_RRM) 600V
Continuous Drain Current (I_D) 33A
On-State Resistance (R_DS(on)) 0.12Ω
Pulsed Drain Current (I_DM) 130A
Power Dissipation (P_D) 310W
Junction Temperature (T_j) -40°C to +150°C
Isolation Voltage (V_ISO) 3600V

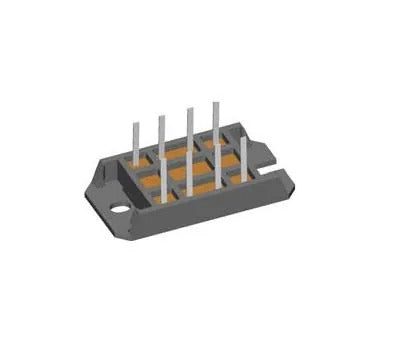

Package Type V1-B-Pack
Mounting Type Screw Mount
Electrical Mounting FASTON Connectors

For more detailed information, please refer to the IXYS VUM33-05N datasheet.
