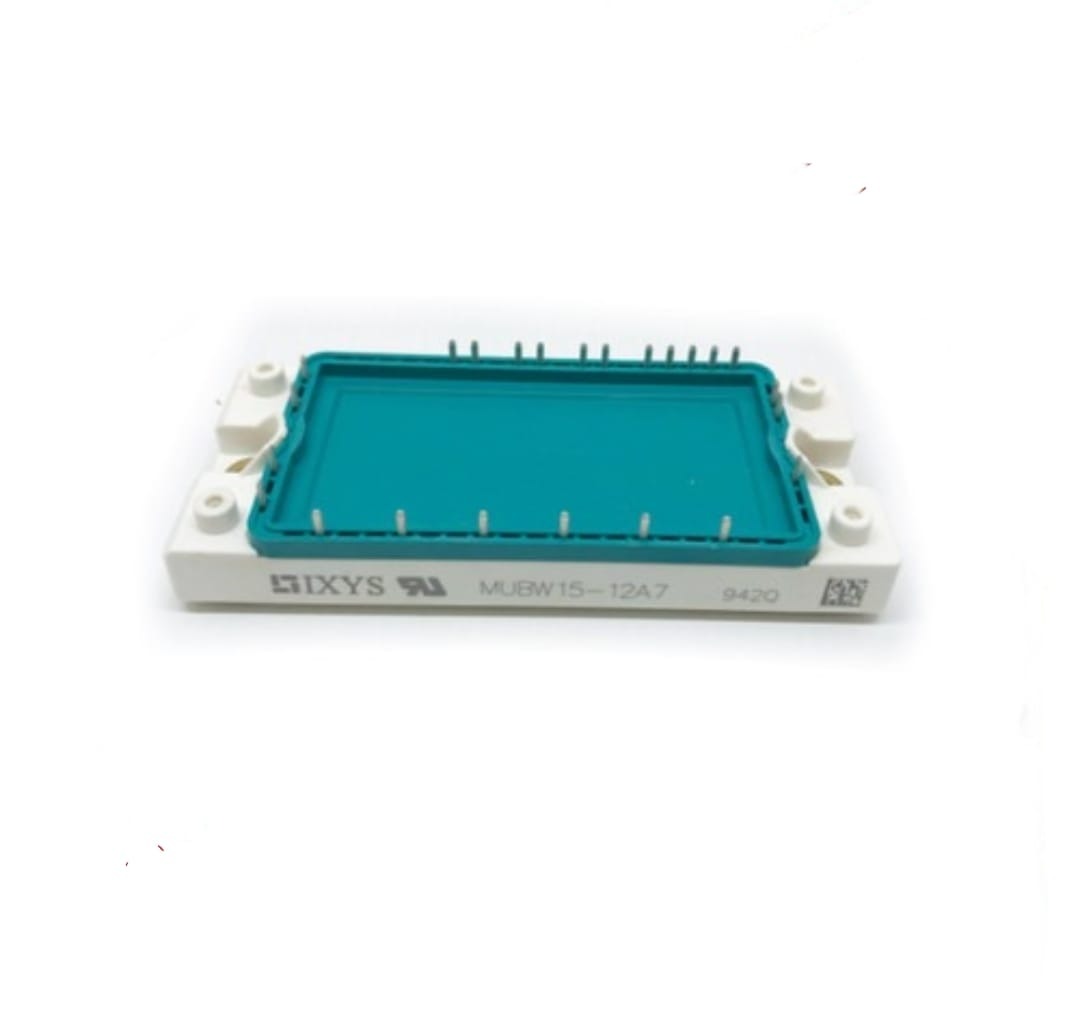

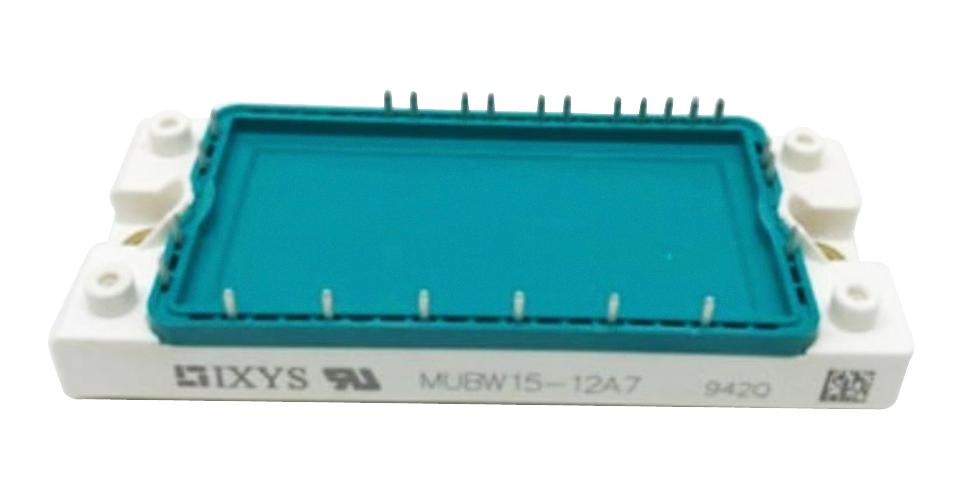

MUBW15-12A7 IGBT Module
The MUBW15-12A7 IGBT module by IXYS Corporation is designed for efficient performance in power electronics systems. Using NPT (Non-Punch-Through) IGBT technology, it offers low saturation voltage and reduced switching losses, making it suitable for industrial and commercial applications such as motor drives and renewable energy systems.
This module features a three-phase inverter with braking capabilities, compatible with both single and three-phase grid inputs and synchronous or asynchronous motors. Fast rectifier diodes improve electromagnetic compatibility (EMC), while epitaxial freewheeling diodes with soft reverse recovery characteristics support stable system performance. The insulated copper base plate and soldering pins allow straightforward PCB mounting for various setups.
Operating in a temperature range of -40°C to +125°C, the MUBW15-12A7 maintains stable performance in challenging environments. Its compact E2 package and thermal resistance of 0.02 K/W with heatsink compound provide reliable thermal management. This module is suitable for industrial automation, renewable energy, and other power electronics applications where efficiency and durability are important.
Key Specs
| Specification | Value |
|---|---|
| Type | IGBT Module |
| Configuration | 3-Phase Inverter with Brake |
| Collector-Emitter Voltage (Vceo Max) | 1200 V |
| Continuous Collector Current (Ic) | 35 A |
| Collector-Emitter Saturation Voltage (Vce(on)) | 2.1 V |
| Power Dissipation (Pd) | 180 W |
| Operating Temperature Range | -40°C to +125°C |
| Thermal Resistance (RthJC) | 0.7 K/W |
| Gate-Emitter Voltage (Vge) | ±20 V |
| Gate-Emitter Leakage Current (Iges) | 200 nA |
| Input Capacitance (Cies) | 1000 pF |
| NTC Thermistor Resistance (R25) | 5.0 kΩ |
| NTC Thermistor B25/50 | 3375 K |
| Package Type | E2 |
| Weight | 180 g |
| Mounting Type | PCB Mount |
For more detailed information, please refer to the IXYS MUBW15-12A7 datasheet.
