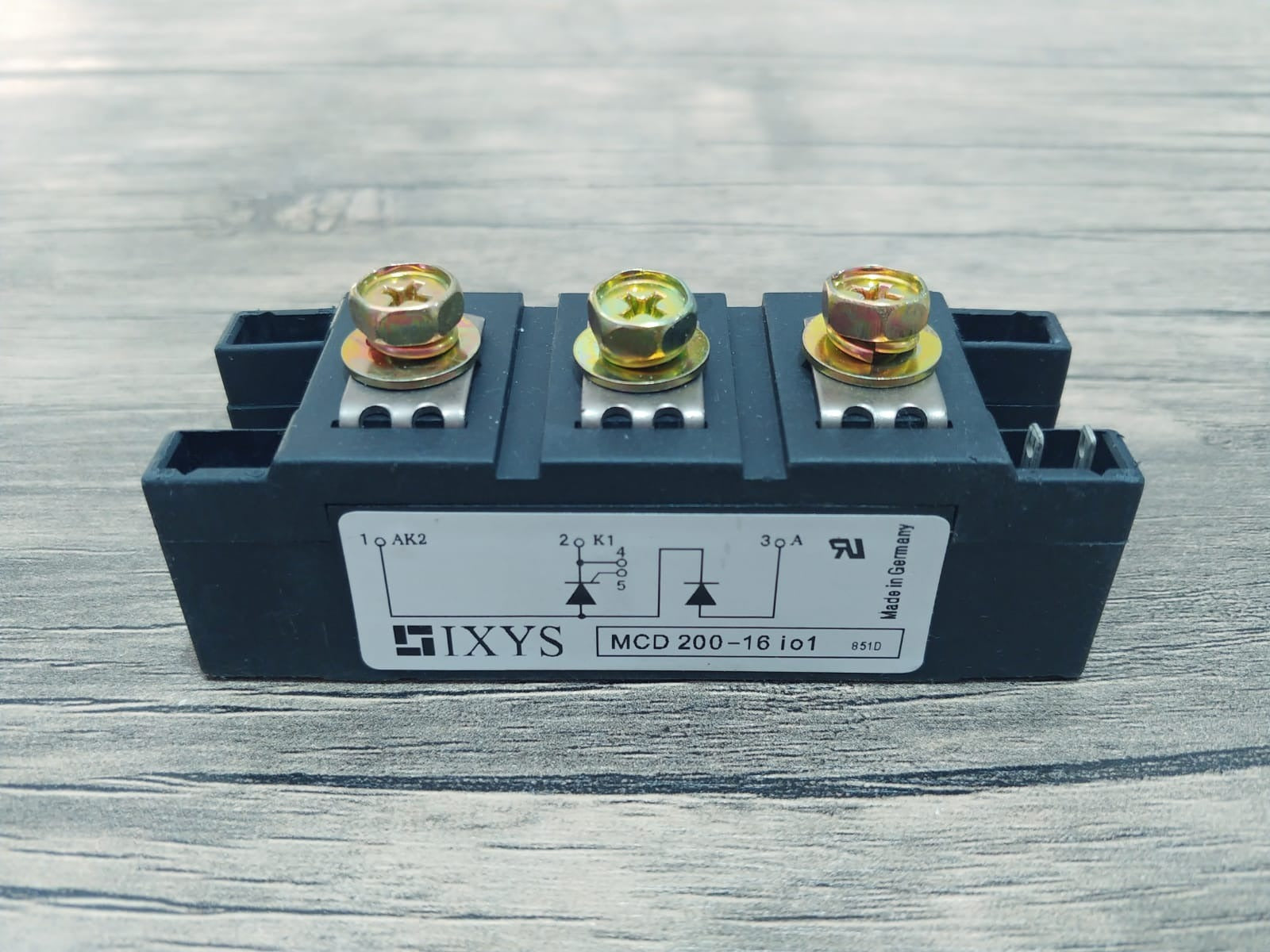

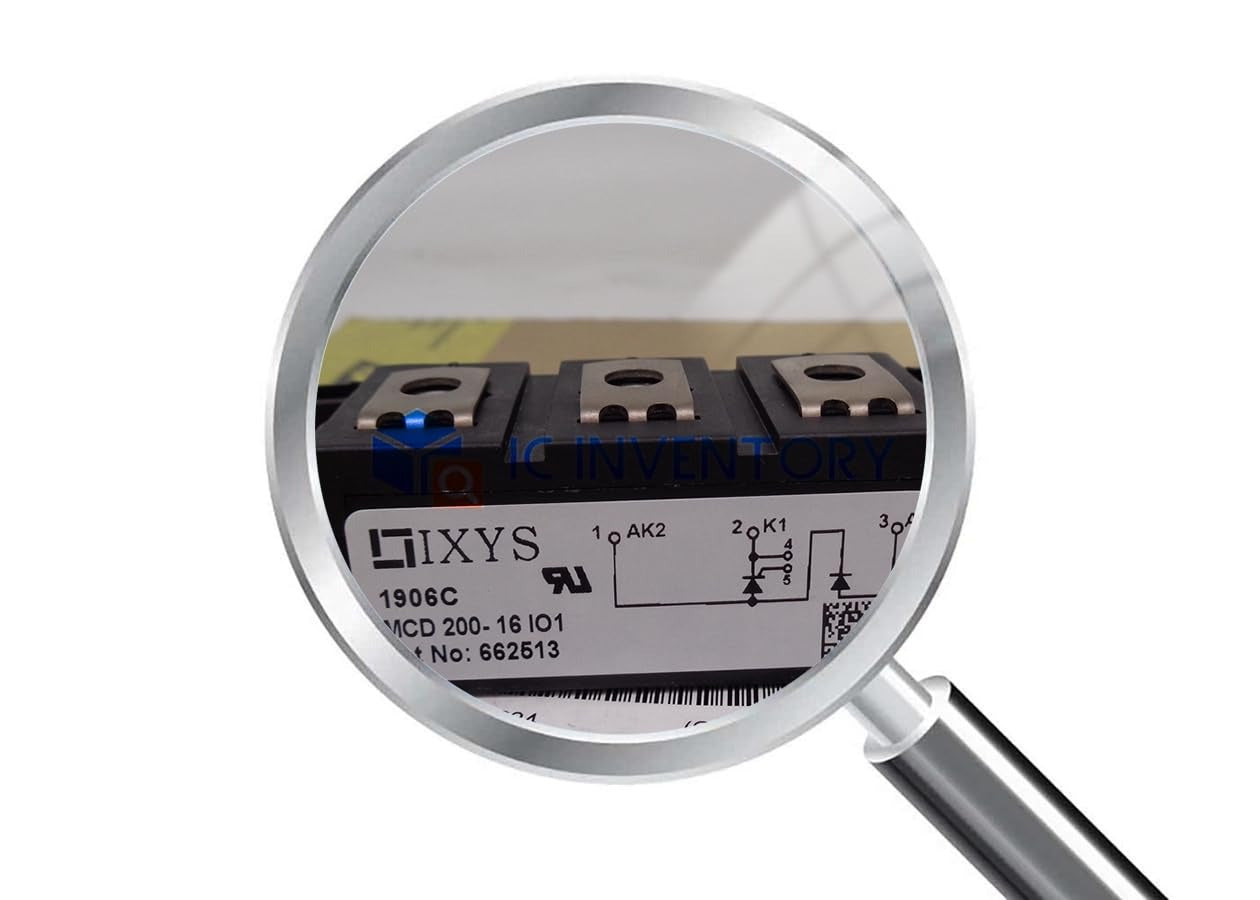

IXYS MCD200-16I01
MCD200-16I01
The MCD200-16I01 is a power module designed for industrial and commercial power electronics applications. It supports high-voltage and high-current operations, making it suitable for systems such as motor drives, power converters, and lighting control systems. Its design ensures reliable performance under demanding conditions.
Manufactured by IXYS, the MCD200-16I01 features a thyristor/diode configuration with a peak repetitive off-state voltage of 1600 V and an average on-state current of 216 A at a case temperature of 85 °C. The module is housed in a Y4-M6 package, which allows straightforward integration into various systems. Its copper-bonded Al₂O₃-ceramic base plate provides thermal stability, and the module has an isolation voltage of 3600 V for safe operation in industrial environments.
The module is built for efficiency and durability, with reduced power dissipation, stable thermal cycling, and high surge current handling. It is suitable for soft start AC motor control, DC motor control, and line-frequency rectification applications. The module is RoHS-compliant and UL registered.
Key Specifications
| Specification | Value |
|---|---|
| Type | Thyristor/Diode Module |
| Average On-State Current (ITAV) | 216 A |
| Peak Repetitive Off-State Voltage (VDRM/VRRM) | 1600 V |
| Surge Current (ITSM) | 8000 A (10 ms) |
| Gate Trigger Current (IGT) | 150 mA |
| Holding Current (IH) | 150 mA |
| Forward Voltage Drop (Vf) | 1.1 V |
| Thermal Resistance Junction to Case (RthJC) | 0.13 K/W |
| Thermal Resistance Case to Heat Sink (RthCH) | 0.05 K/W |
| Isolation Voltage | 3600 V~ |
| Operating Temperature Range | -40 °C to +125 °C |
| Package Type | Y4-M6 |
| Mounting Style | Screw Mount |
| Compliance | RoHS, UL Registered |
For more detailed information, please refer to the IXYS datasheet.
