IRFP4468

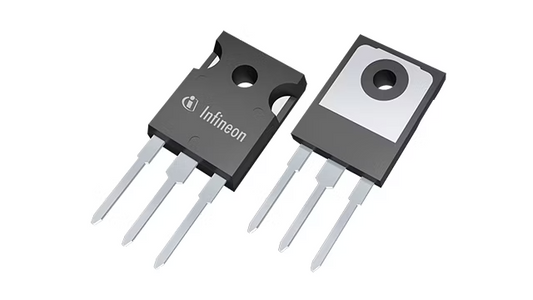

The IRFP4468 MOSFET from Infineon Technologies is an N‑channel transistor rated at 100 V and 290 A, designed for efficient switching in power electronics. With an on-resistance of 2.6 mΩ, it minimizes conduction losses and maintains thermal stability, making it suitable for synchronous rectification, motor control, DC-DC converters, and renewable energy systems. Its TO-247AC package supports effective heat dissipation, and it can operate at temperatures up to 175 °C.
This MOSFET supports heavy loads while maintaining low conduction losses. Its total power dissipation of 520 W (with proper case cooling) and gate threshold voltage of 2.0–4.0 V enable integration into low-voltage drive circuits. The device provides fast switching and reliable operation for applications such as UPS, inverters, and motor drives.
The IRFP4468 is built with avalanche-tested technology and is RoHS-compliant. Its design allows stable operation under high currents and harsh conditions. Engineers use this component in DC-DC converters, battery-management systems, and high-current switching applications where efficiency and reliability are important.
For more detailed information, please refer to the official datasheet from Infineon: Infineon IRFP4468 Datasheet (PDF)
Key Specs
| Parameter | Specification |
|---|---|
| Drain‑Source Voltage (V<sub>DS</sub>) | 100 V |
| Continuous Drain Current (I<sub>D</sub>) | 290 A (at 25 °C) |
| On‑Resistance (R<sub>DS(on)</sub>) | 2.6 mΩ (max, @ V<sub>GS</sub>=10 V) |
| Total Gate Charge (Q<sub>G</sub>) | ~360 nC (typ @10 V) |
| Gate‑Source Threshold Voltage (V<sub>GS(th)</sub>) | 2.0–4.0 V (nominal ~3 V) |
| Maximum Gate‑Source Voltage (V<sub>GS</sub>) | ±20 V |
| Maximum Power Dissipation (P<sub>D</sub>) | 520 W (at case temperature) |
| Operating Junction Temperature (T<sub>j</sub>) | –55 °C to +175 °C |
| Package / Case Style | TO‑247AC, through‑hole mounting |
| Thermal Resistance (Junction-to-Case) | ~0.29 K/W |
| Typical Applications | SMPS, UPS, motor drives, DC–DC converters, battery management, inverters |
