IRAMS10UP60B IPM 600V 10A Motor Control Power Module
Guarantee Safe Checkout
IRAMS10UP60B IPM 600V 10A Motor Control Power Module

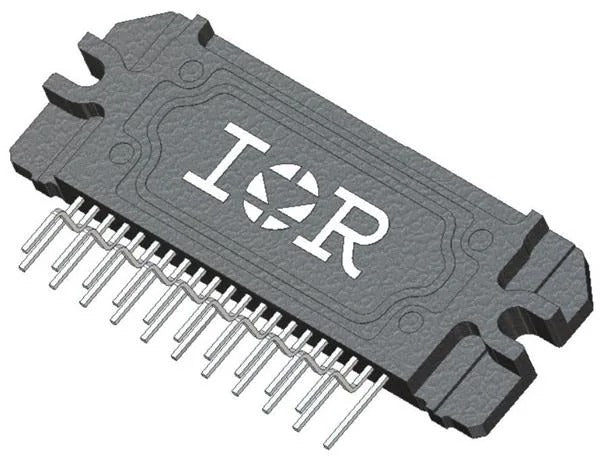

IRAMS10UP60B Integrated Power Module (Plug-N-Drive)
The IRAMS10UP60B is a smart, all-in-one power module designed to simplify motor control for appliances like washing machines and refrigerators. It integrates IGBTs, gate drivers, bootstrap diodes, internal shunt resistors, and protection circuitry—providing a compact, high-performance motor drive solution with safety and efficiency built-in.
Built for reliability, the IRAMS10UP60B includes features such as temperature monitoring, over-current and under-voltage lockout, and cross-conduction prevention logic. Its fully isolated package and low VCE(on) IGBT technology ensure both robust performance and electrical safety.
Ideal for industrial and commercial use, the module supports motor power ranges from 0.4 to 0.75 kW (85–253 Vac), and withstands challenging environments with 2000 Vrms isolation and a broad operating temperature range (–40 to +150 °C). This makes it a reliable and efficient choice for compact power electronics and appliance systems.
Key Specifications
| Specification | Details |
|---|---|
| Module Type | Integrated Power Hybrid IC for Appliance Motor Drive |
| Motor Power Range | 0.4–0.75 kW at 85–253 Vac |
| Blocking Voltage (VCES/VRRM) | 600 V |
| RMS Phase Current (TC=25 °C) | 10 A |
| RMS Phase Current (TC=100 °C) | 5 A |
| Isolation Voltage | 2000 Vrms (1 min); CTI > 600 V |
| Operating Temperature Range | –40 °C to +150 °C |
| Key Features | Internal shunt, gate drivers, bootstrap diodes, protection logic, temperature monitor, fully isolated |
| Drive Logic | Schmitt-triggered input, matched propagation delay, cross-conduction prevention, low di/dt for noise immunity |
| Safety Certifications | UL-recognized (E252584), RoHS compliant |
