Infineon TDB6HK360N16P 1600V 360A IGBT Module
Guarantee Safe Checkout

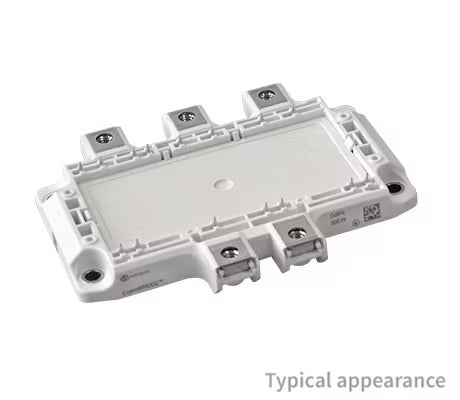

Infineon TDB6HK360N16P 1600V 360A IGBT Module
TDB6HK360N16P IGBT Module – Infineon Technologies
The TDB6HK360N16P is a high-power, half-controlled bridge IGBT module built to deliver uncompromising performance and reliability in demanding industrial environments. Engineered using Infineon’s robust EconoBRIDGE™ 4 platform, this compact module offers a standout collector–emitter voltage rating of 1600 V and a continuous collector current of 360 A, making it exceptionally suited for heavy-duty applications such as motor control, medium-voltage inverters, power traction systems, and industrial induction heating.
Designed for long-term resilience, the TDB6HK360N16P integrates a built-in NTC thermistor for real-time temperature sensing, and features PressFIT contact technology and an isolated base plate to ensure superior electrical insulation, ease of integration, and extended service life. With full RoHS compliance, reinforced 4 kV AC isolation, and a compact form factor, this module ensures both installation flexibility and top-tier safety.
Whether deployed in industrial servo drives, renewable energy inverters, or large-scale renewable systems, the TDB6HK360N16P delivers exceptional efficiency, durable thermal performance, and reliable operation—making it a go-to solution for engineers focused on both productivity and peace of mind.
Key Specifications
| Specification | Details |
|---|---|
| Collector–Emitter Voltage | 1600 V (V<sub>DRM</sub> / V<sub>RRM</sub>) |
| RMS Collector Current | 360 A |
| Surge Current (IFSM Max) | 2300 A |
| Configuration | Half-controlled bridge with built-in NTC thermistor |
| Isolation Voltage | 4 kV AC (1 min) |
| Contact Technology | PressFIT (solder-free), isolated base plate |
| Package Type | EconoBRIDGE™ 4 module (AG-ECONO4-1) |
| RoHS Compliance | Yes |
| Operating Temperature | –40 °C to +130 °C (T<sub>J</sub>) |
| Dimensions (L Ă— W) | Approx. 130 mm Ă— 70.6 mm |
