Infineon IRAMS12UP60A 600V 12A 3 Phase IGBT Module

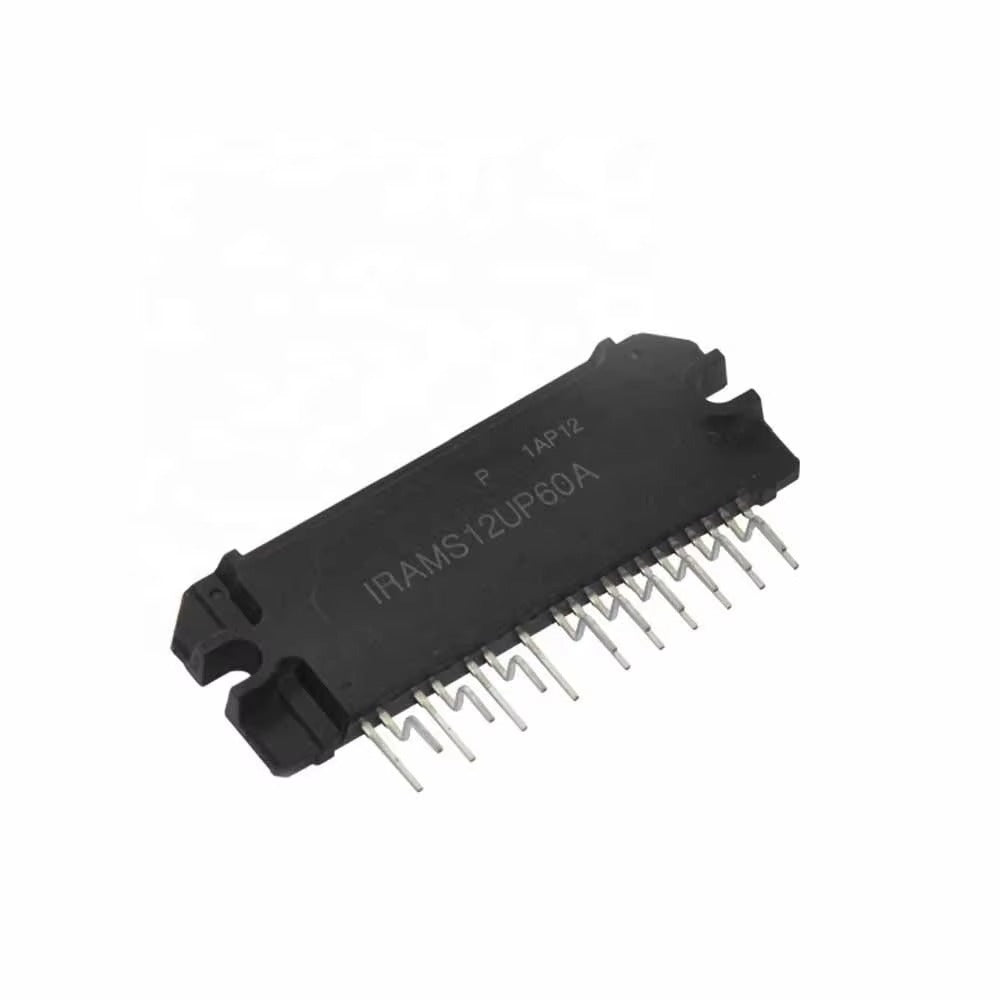

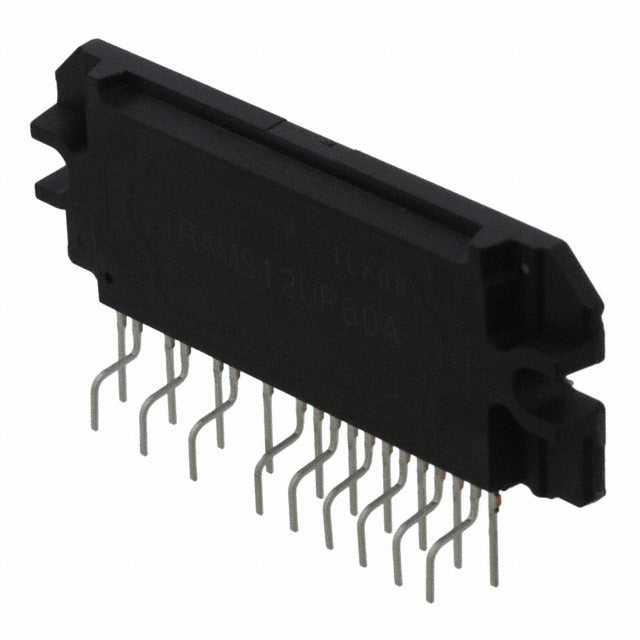

IRAMS12UP60A Integrated Power Module

The IRAMS12UP60A is a 600V, 12A Integrated Power Module (IPM) from Infineon Technologies, designed for efficient and reliable motor control applications. This compact module integrates a 3-phase IGBT inverter with a high-speed driver IC, providing a complete solution for driving motors in various industrial and commercial applications.

With a maximum junction temperature of 150°C, the IRAMS12UP60A is built to withstand demanding operating conditions. Its low saturation voltage and fast switching capabilities contribute to reduced power losses, enhancing overall system efficiency. The module's design includes built-in protection features such as overcurrent protection and under-voltage lockout, ensuring safe and reliable operation.

The IRAMS12UP60A is suitable for applications requiring compact, high-performance motor control solutions. Its integrated design simplifies system layout and reduces component count, making it an ideal choice for applications like motor drives, inverters, and uninterruptible power supplies (UPS).

Key Specifications

Specification

Value

Collector-Emitter Voltage (Vce)

600 V

Continuous Collector Current (Ic)

12 A

Package Type

23-PowerSIP Module, 19 Leads

Isolation Voltage

2000 Vrms

Operating Frequency

20 kHz

Power Dissipation

26 W

Operating Temperature Range

-40°C to +125°C

Mounting Type

Through Hole

Protection Features

Overcurrent, Under-voltage Lockout

Compliance Standards

RoHS

For more detailed information, refer to the datasheet: IRAMS12UP60A Datasheet.
