Infineon IKCM20L60GD 600V 20A Intelligent Power Module

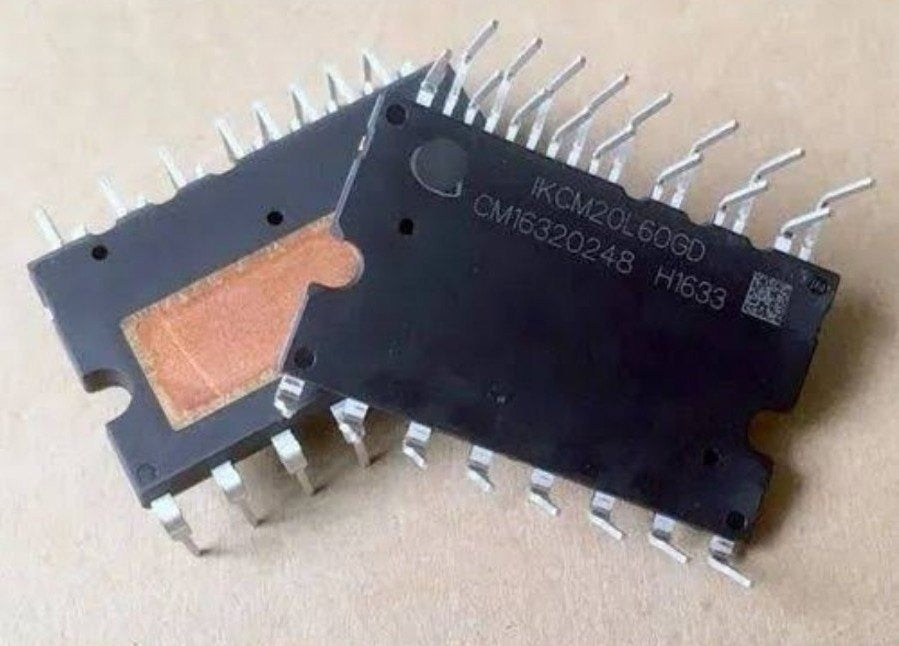

IKCM20L60GD Intelligent Power Module

The IKCM20L60GD from Infineon Technologies is a high-performance Intelligent Power Module (IPM) designed for efficient and reliable control of three-phase AC motors. With a collector-emitter voltage rating of 600V and a continuous current capacity of 20A, it ensures stable operation in a variety of low-power motor drive applications, including air conditioning systems, refrigerators, and washing machines. Its compact design and fully integrated features make it an ideal choice for appliance and industrial motor control systems.

This module combines TRENCHSTOP™ IGBTs with a three-phase gate driver and built-in protection features, including under-voltage lockout, overcurrent shutdown, and thermal shutdown. These integrated protections ensure safe operation while reducing the need for external components. The IKCM20L60GD supports switching frequencies up to 20 kHz, which enhances efficiency, reduces audible noise, and contributes to energy savings in motor-driven systems. Its fully isolated Dual In-Line molded package simplifies installation and integration in compact designs.

Designed for durability and consistent performance, the IKCM20L60GD operates reliably across a wide temperature range from -40°C to +125°C. Its high isolation voltage of 2000Vrms ensures safe operation in various environments, while the integrated design minimizes thermal stress and optimizes system reliability. Engineers and system designers can trust this IPM to maintain operational efficiency, reduce downtime, and deliver long-lasting performance in critical motor drive applications.

Key Specifications

For more detailed information, please refer to the Infineon IKCM20L60GD datasheet.
